Old 11-22-2018, 09:06 AM
  #76
Tech Master

patorz31's Avatar

Join Date: Nov 2007
Location: Edmonton Ab
Posts: 1,554
Default

Try dry PTFE lube for bike chains. Was a tip from some UK guys I know.
DavidNERODease likes this.
patorz31 is offline
Old 11-22-2018, 10:12 AM
  #77
Tech Master

Join Date: Mar 2011
Location: Chatham Ontario Canada
Posts: 1,951
Default No

Originally Posted by Racermac73 View Post
Ream and polish.. Or keep having this conversation lol
Do you have an Eclipse 2? Reaming this steering block would completely ruin it. It's not plastic. It's not a clearance issue. It's specially a coated machined aluminum work of art. The kingpins came highly polished from the factory - I had to dig out the polishing compound from the threaded hole in the bottom.
1/8 IC Fan and Erhard like this.
DavidNERODease is offline
Old 11-23-2018, 12:37 AM
  #78
Tech Adept

Join Date: Sep 2018
Posts: 117
Default

At our Eclipse 2, the feel was good from the beginning, using Molycote (black grease). Molycote TM (aka MoS2, Molybdeniumsulfite) is a powder, similar to graphite,which is mixed with normal grease. To my opinion superior to Drylube, Teflon etc in metallic parts lubrication and run in process.
But still there was a slight stick slip effect, when pushing the wheel up.
I would not recommend to ream the steering block due to its coating.
What we did was improving the kingpins surface by grinding with an oil stone on low rpm in a powertool.
https://www.banemo.de/mueller-hart-a...00-x-10mm.html
and then polish with chrome polish.
(Polishing alone does not help to improve the surface flatness)
Now the parts are running perfectly smooth with silicon damper grease to adjust damping.

BR Erhard
DavidNERODease likes this.
Erhard is offline
Old 11-26-2018, 08:19 PM
  #79
Tech Adept

cyclone's Avatar

Join Date: May 2005
Posts: 249
Default

Originally Posted by Erhard View Post
Great result as 3rd in A-main 1! The car certainly is competitive.
Does anyone know what happened to Andy Murray in A-main 2 and 3?

BR Erhard
I had bodyshell issues in both due to the higher speed of open modified than I’m used too I had lots of issues with the body bending on the straight. I didn’t fix it sufficiently in either leg 2 or 3 . But thanks guys. I’ll get a setup sheet on here soon. The car was handling well in the end! 😀
DavidNERODease and Erhard like this.
cyclone is offline
Old 11-28-2018, 07:59 AM
  #80
Tech Adept

cyclone's Avatar

Join Date: May 2005
Posts: 249
Default

Hey, I have attached my ending setup from the International Indoor Championship 2018, on high grip, CRC black carpet. Hope this helps you guys with a starting point!

The only difference between this setup and my 13.5 stock class setup was my tire choice. I used the JT2-32FJ and JT2-30RJ for stock.

Andy
Attached Files
File Type: pdf
AM IIC E2 2018.pdf (1.78 MB, 145 views)
XCELL, patorz31, jetnjme and 2 others like this.
cyclone is offline
Old 11-28-2018, 10:34 PM
  #81
Tech Adept

Join Date: Sep 2018
Posts: 117
Thumbs up

Originally Posted by cyclone View Post
Hey, I have attached my ending setup from the International Indoor Championship 2018, on high grip, CRC black carpet. Hope this helps you guys with a starting point!

The only difference between this setup and my 13.5 stock class setup was my tire choice. I used the JT2-32FJ and JT2-30RJ for stock.

Andy
Hello Andy,
did you use a diff or fixed axle(spool), Was the motor really 3,5 turns !?
BR Erhard
Erhard is offline
Old 11-29-2018, 08:51 AM
  #82
Tech Master

Join Date: Mar 2011
Location: Chatham Ontario Canada
Posts: 1,951
Default Solid

Originally Posted by Erhard View Post
Hello Andy,
did you use a diff or fixed axle(spool), Was the motor really 3,5 turns !?
BR Erhard
It says spool in the diff tension comments.
DavidNERODease is offline
Old 11-29-2018, 02:10 PM
  #83
Tech Regular

Join Date: Feb 2004
Location: somewhere in the north of england
Posts: 476
Default

Originally Posted by Erhard View Post
Finally I am allowed to upload.
This is what I wanted to share from the beginning about the connection between pivot ball, angle of side bars and the resulting position of roll center at the rear axle.
I know quality of this sketch is low, but hopefully it is possible to understand.
BR Erhard

If I may Interject....

If the center pivot slides in a slot ala the yrx12 assoiciated 12 r6 it should only affect the wheel base. If it dosen't it will affect the roll steer.The roll axis will be a line that goes through the roll center of the front and rear axel.

patorz31 likes this.
Smoking motor.. is offline
Old 11-30-2018, 08:01 AM
  #84
Tech Adept

Join Date: Sep 2018
Posts: 117
Default

Originally Posted by Smoking motor.. View Post
If I may Interject....
.
Yes please! Its a discussion forum ;-)

Originally Posted by Smoking motor.. View Post
If the center pivot slides in a slot ala the yrx12 assoiciated 12 r6 it should only affect the wheel base. If it dosen't it will affect the roll steer.....
I do not agree, the slot (Asso design) doesnīt change anything. The slot is because the system of links and joints without it is overdetermined and self blocking. In other cars, the links stretch a bit and there is some joint play. This does unlock the overdetermined situation also.

Originally Posted by Smoking motor.. View Post
....The roll axis will be a line that goes through the roll center of the front and rear axel.
I certainly agree, itīs what I explained in an earlier post #53 also.

BR Erhard
Erhard is offline
Old 11-30-2018, 09:17 AM
  #85
Tech Master

Join Date: Mar 2011
Location: Chatham Ontario Canada
Posts: 1,951
Default

On all solid rear axle suspension designs, the roll centre is controlled but the lateral axle locating device. Normally that is a panhard bar, Watts link, Mumford linkage, Jacob's ladder etc. Some cars use a triangulated 4 link design to locate the rear axle laterally which is what is causing the confusion here. The Eclipse and most other pan cars use a centre pivot ball to locate the rear axle laterally but because it is offset (forward a great distance from the rear axle) it allows the rear axle to be "steered" This wagon like steering ability is being mistaken for a lack of lateral axle location. The side links do not locate the axle laterally - the axle cannot move sideways. Think of the rear centre pivot as a badly offset kingpin - lots a wheel scrub during steering not actual lateral axle movement.
DavidNERODease is offline
Old 11-30-2018, 10:18 AM
  #86
Tech Adept

Join Date: Sep 2018
Posts: 117
Default

Originally Posted by DavidNERODease View Post
.....Some cars use a triangulated 4 link design to locate the rear axle laterally which is what is causing the confusion here. ...
That doesnīt confuse me at all. I can explain the examination of such a cars roll center too and its not what we are talking here.
Here this is Schumacher eclipse and all others with pivot joint and side links. Like its in the textbook and you can read about an experts explaination in the said book RC-Car Fahrwerktechnik: Grundlagen, Theorie Und Praxis | eBookRich.com

Before I give up, one last try!

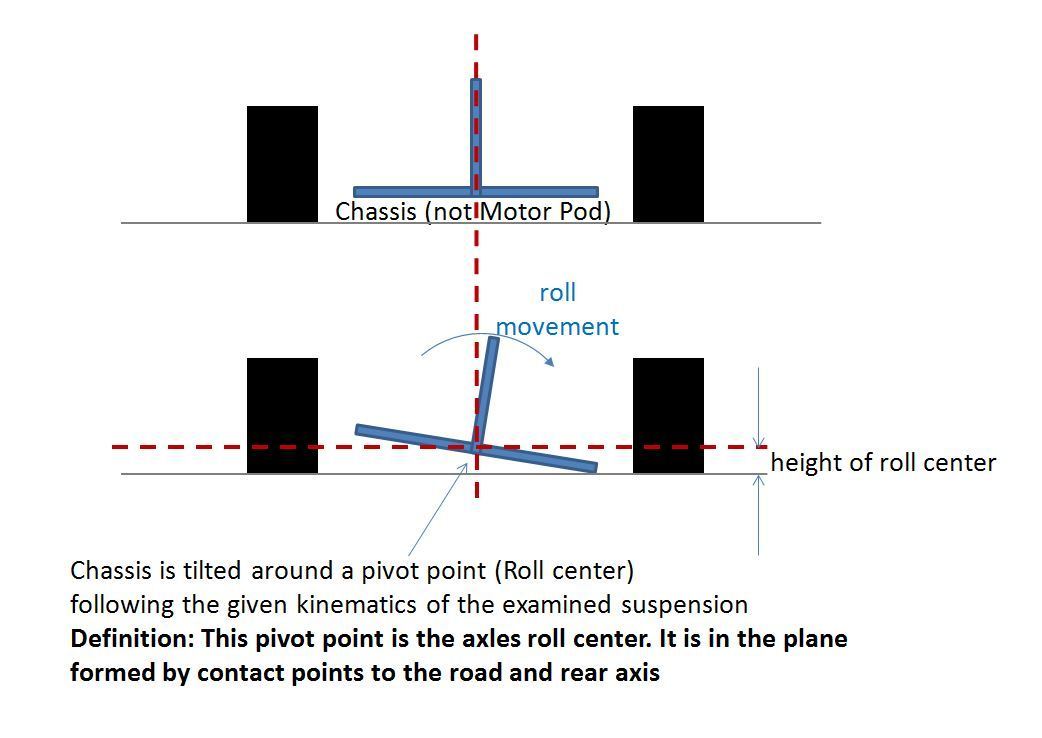

I think it good to clarify first is the definition of roll centre, so we talk the same language:

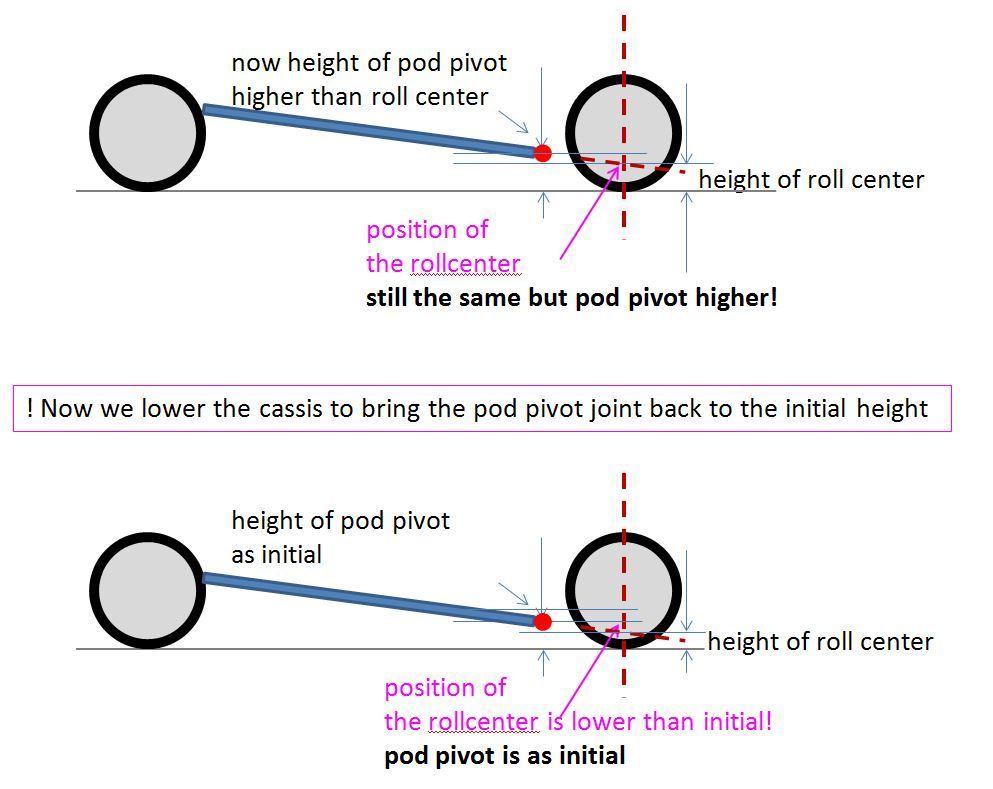

Now from the side and a first step to the idea of tilting links and the result (we just lift the whole chassis to tilt the links and the roll center stays the the same, but. Ooops! now the pivot height has changed!




Now to bring back the pod pivot to initial height we have to lower the roll center!




This is what I can do to explain - if its good its good. If not - well I canīt help. Then you may just believe in an Physicist with a Phd in engineering and said book of the Porsche chassis designer. But we might be wrong.

BR Erhard


Erhard is offline
Old 11-30-2018, 10:36 AM
  #87
Tech Master

Join Date: Mar 2011
Location: Chatham Ontario Canada
Posts: 1,951
Default

BR Erhard, you drawing lines through parts of the suspension that do not have anything to do with finding the instant centre or roll centre or roll axis. Side links do not laterally locate the rear axle - they are out of scope and not relevant to the discussion. It does look like we will have to agree to disagree. No worries.
patorz31 likes this.
DavidNERODease is offline
Old 11-30-2018, 03:37 PM
  #88
Tech Adept

Join Date: Sep 2018
Posts: 117
Default

Originally Posted by DavidNERODease View Post
....Side links do not laterally locate the rear axle - they are out of scope and not relevant to the discussion.....
This is the mistake you make! Then you could as well mount the side links vertically, or not? If you do so, you will recognize, that now the pod can only do a steering movement and no more roll movement.

This shows drastically the roll movement has to do with the inclination of the links.

Here is the drawing from the book I refered to:
(Translation: Schwenkachse=rotation axis of the pod; Zentralgelenk=pivot joint; Rollzentrum=Rollcenter

Again you can see, the direction of the rotating axis is the direction of the links. Come on, the author is a chassis designer at the Porsche racing department, he knows what he talks about. Donīt you have any slight feeling you might be wrong?
If not, donīt just argue, bring well founded explainations in a scetch form.

Best regards, Erhard

EDWARD2003 likes this.
Erhard is offline
Old 11-30-2018, 04:43 PM
  #89
Tech Elite
iTrader: (8)

Join Date: Nov 2009
Location: Woodinville, WA
Posts: 2,567
Trader Rating: 8 (100%+)
Default

Originally Posted by Erhard View Post
(Translation: Schwenkachse=rotation axis of the pod; Zentralgelenk=pivot joint; Rollzentrum=Rollcenter
But what is the Schwerpunkt? I feel like I could insult someone by calling them that.
grippgoat is offline
Old 11-30-2018, 05:19 PM
  #90
Tech Regular
iTrader: (10)

ScottE1776's Avatar

Join Date: Jul 2013
Location: Mesa, AZ
Posts: 343
Trader Rating: 10 (100%+)
Default

Originally Posted by Erhard View Post
This is the mistake you make! Then you could as well mount the side links vertically, or not? If you do so, you will recognize, that now the pod can only do a steering movement and no more roll movement.

This shows drastically the roll movement has to do with the inclination of the links.

Here is the drawing from the book I refered to:
(Translation: Schwenkachse=rotation axis of the pod; Zentralgelenk=pivot joint; Rollzentrum=Rollcenter

Again you can see, the direction of the rotating axis is the direction of the links. Come on, the author is a chassis designer at the Porsche racing department, he knows what he talks about. Donīt you have any slight feeling you might be wrong?
If not, donīt just argue, bring well founded explainations in a scetch form.

Best regards, Erhard
My only comment to this is that Porsche took 30 years to fix the trailing throttle oversteer on their 911's :P
