Originally Posted by NCHPIboy View Post
No need for a fan. I'm adjusting the gearing with a temp gun.
What motor are you running, I was going to run a 21.5 fix timing Hobbywing (track rules) that's why i'm asking
rippen is offline
Old 08-05-2019, 10:29 AM
  #272
Tech Rookie

Join Date: Jul 2019
Posts: 6
Default

Originally Posted by fyrstormer View Post
A video showing the slop you're complaining about would help us make useful suggestions.
I just finished my build and noticed steering slop as well. I tried adding shims between the bridge and steering arms but the slop remained identical. I feel like its caused by slack in-between the screw and bearings and also the cup joints themselves.

https://youtu.be/4O0uW2ynncs
rippen likes this.
Erathis is offline
Old 08-05-2019, 10:52 AM
  #273
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default

Originally Posted by Erathis View Post
I just finished my build and noticed steering slop as well. I tried adding shims between the bridge and steering arms but the slop remained identical. I feel like its caused by slack in-between the screw and bearings and also the cup joints themselves.

https://youtu.be/4O0uW2ynncs
Video shows two kind of slop. The slop in the outer steering arms is pretty normal. It's an addition of all tolerances in the complete steering unit down to servo. The second slop in the steering arm bridge is not normal. I've the same aluminium unit, but I have no such slop in it. But i shimmed everthing in this unit from beginning (bridge and arms).

Seems, something with the bearings is wrong. Maybe two countersunk screws in the bridge would help to center the bearings (kit are flatscrews).

Main problem with basically all Tamiya steering units is, that technically they are using the wrong bearings (ball bearings have slop with longitudinal forces). In a steering unit something like a thrust bearing or cone bearing would be better solution.
rippen and Erathis like this.

Last edited by Tom1977; 08-05-2019 at 11:10 AM.
Tom1977 is offline
Old 08-05-2019, 12:31 PM
  #274
Tech Initiate

NCHPIboy's Avatar

Join Date: Apr 2019
Location: Hayesville, NC
Posts: 35
Default

Originally Posted by rippen View Post
What motor are you running, I was going to run a 21.5 fix timing Hobbywing (track rules) that's why i'm asking
There is no motor limit in the class I'm trying out at my LHS.
The motor is a Hobbywing Quicrun 3650 8.5 turn 4560 rpm/Volt.
My starting FDR is 8.4:1 but I will need to adjust for motor temperature.
rippen likes this.
NCHPIboy is offline
Old 08-05-2019, 01:32 PM
  #275
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default

I recently installed the new drive shafts (#54901/54902). Its basically the same pilot used already in TB Evo 7. New shafts are thinner than original dogbone shafts. Instead of grub screws I used axle rings (#9804802) and the new light weight cross joints (#42321). I've made no old/new weight comparison (sorry I forgot it), but it should be slightly lighter than the kit dogbone style shafts/steel pilots.



Tom1977 is offline
Old 08-06-2019, 10:35 AM
  #276
Tech Rookie

Join Date: Jul 2019
Posts: 6
Default

Originally Posted by Tom1977 View Post
Video shows two kind of slop. The slop in the outer steering arms is pretty normal. It's an addition of all tolerances in the complete steering unit down to servo. The second slop in the steering arm bridge is not normal. I've the same aluminium unit, but I have no such slop in it. But i shimmed everthing in this unit from beginning (bridge and arms).

Seems, something with the bearings is wrong. Maybe two countersunk screws in the bridge would help to center the bearings (kit are flatscrews).

Main problem with basically all Tamiya steering units is, that technically they are using the wrong bearings (ball bearings have slop with longitudinal forces). In a steering unit something like a thrust bearing or cone bearing would be better solution.
Thank you for the tips. I opened up the steering and kept playing with shims and tried countersunk screws. I was able to reduce the vertical slop but not entirely. I can live with it as it is.

I noticed a different problem though and I was wondering if anyone else encountered it. My front wheels touch the plastic arm when turned. This causes a lot of vibration and the arm is practically getting slowly shaved. Video below

https://youtu.be/XEyC0-_dRSk
Erathis is offline
Old 08-06-2019, 10:45 AM
  #277
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default

Originally Posted by Erathis View Post
Thank you for the tips. I opened up the steering and kept playing with shims and tried countersunk screws. I was able to reduce the vertical slop but not entirely. I can live with it as it is.

I noticed a different problem though and I was wondering if anyone else encountered it. My front wheels touch the plastic arm when turned. This causes a lot of vibration and the arm is practically getting slowly shaved. Video below

https://youtu.be/XEyC0-_dRSk

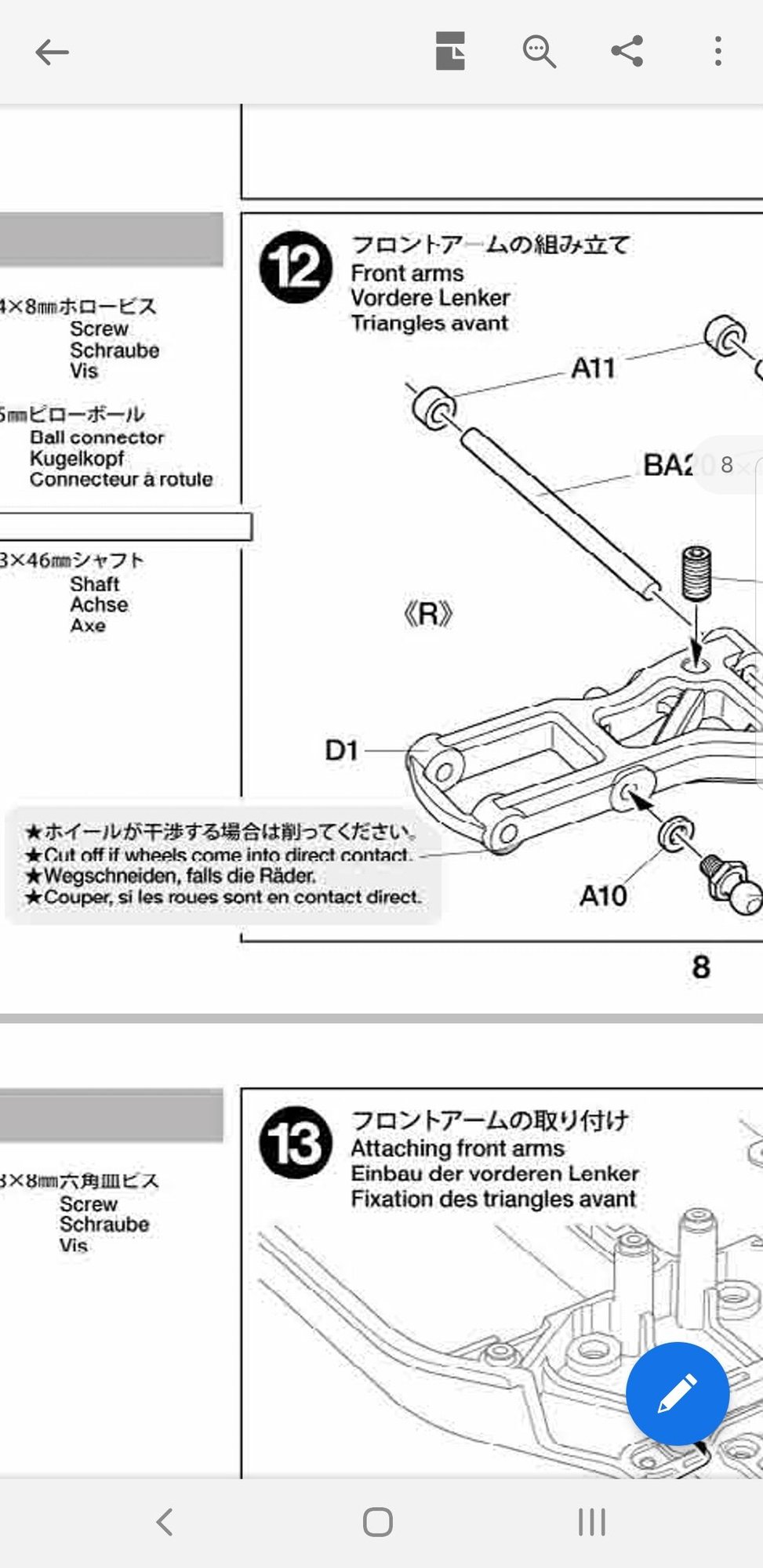

Pretty normal issue with 6 degree caster blocks and 0mm offset wheels.

Tamiyas official solution:

Erathis likes this.
Tom1977 is offline
Old 08-06-2019, 10:46 AM
  #278
Tech Adept
iTrader: (6)

Join Date: Mar 2018
Location: CT
Posts: 124
Trader Rating: 6 (100%+)
Default

Originally Posted by Erathis View Post
Thank you for the tips. I opened up the steering and kept playing with shims and tried countersunk screws. I was able to reduce the vertical slop but not entirely. I can live with it as it is.

I noticed a different problem though and I was wondering if anyone else encountered it. My front wheels touch the plastic arm when turned. This causes a lot of vibration and the arm is practically getting slowly shaved. Video below

https://youtu.be/XEyC0-_dRSk

you can can try adjusting the end points so you’re not straining the steering so much.
Erathis likes this.
V8 Rumble is offline
Old 08-06-2019, 12:22 PM
  #279
Tech Initiate

NCHPIboy's Avatar

Join Date: Apr 2019
Location: Hayesville, NC
Posts: 35
Default

Originally Posted by Erathis View Post
Thank you for the tips. I opened up the steering and kept playing with shims and tried countersunk screws. I was able to reduce the vertical slop but not entirely. I can live with it as it is.

I noticed a different problem though and I was wondering if anyone else encountered it. My front wheels touch the plastic arm when turned. This causes a lot of vibration and the arm is practically getting slowly shaved. Video below

https://youtu.be/XEyC0-_dRSk
I used thin hex wheel spacers on my fronts to clear the steering hub. Its related to the wheel offset some how. The kit wheels did not rub on my model but my Sweep racing Pre-Mounts did.
The Tamiya part for the spacer is 53646.
Erathis likes this.
NCHPIboy is offline
Old 08-06-2019, 12:26 PM
  #280
Tech Initiate

NCHPIboy's Avatar

Join Date: Apr 2019
Location: Hayesville, NC
Posts: 35
Default

Originally Posted by V8 Rumble View Post



you can can try adjusting the end points so you’re not straining the steering so much.
I installed the Tamiya Double Cardan Joint Shafts and there is ZERO vibration now. Super smooth.
part number 42216
rippen, freaky321 and Erathis like this.
NCHPIboy is offline
Old 08-06-2019, 01:04 PM
  #281
Tech Champion
iTrader: (97)

1/8 IC Fan's Avatar

Join Date: Jan 2012
Location: Michigan & Europe
Posts: 5,889
Trader Rating: 97 (100%+)
Default

Originally Posted by Tom1977 View Post
I recently installed the new drive shafts (#54901/54902). Its basically the same pilot used already in TB Evo 7. New shafts are thinner than original dogbone shafts. Instead of grub screws I used axle rings (#9804802) and the new light weight cross joints (#42321). I've made no old/new weight comparison (sorry I forgot it), but it should be slightly lighter than the kit dogbone style shafts/steel pilots.


is it the same as the new Tamiya TB05 kit? Are they using one part number for both chassis 54901?
A bit weird as its not on there parts matching list?


https://www.tamiya.com/english/products/54901/index.htm
1/8 IC Fan is offline
Old 08-06-2019, 01:46 PM
  #282
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default

Originally Posted by 1/8 IC Fan View Post
is it the same as the new Tamiya TB05 kit? Are they using one part number for both chassis 54901?
A bit weird as its not on there parts matching list?


https://www.tamiya.com/english/products/54901/index.htm
Yes #54901 for front motor configuration or #54902 for rear. I've both sets. Photos show #54901 installed. It's pretty new hop up. I think Tamiya has not updated the matching list.
rippen likes this.
Tom1977 is offline
Old 08-08-2019, 08:08 AM
  #283
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default New upgrades

Some new parts will arrive soon!

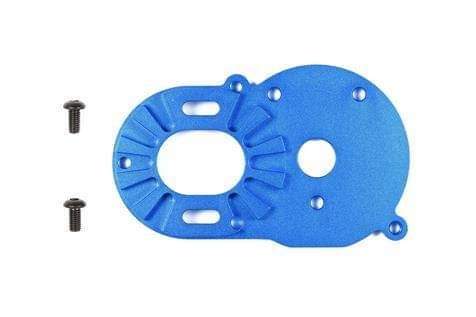

54904 TB-05 Onepiece Motor Plate Source: Tamiya Inc., Japan.

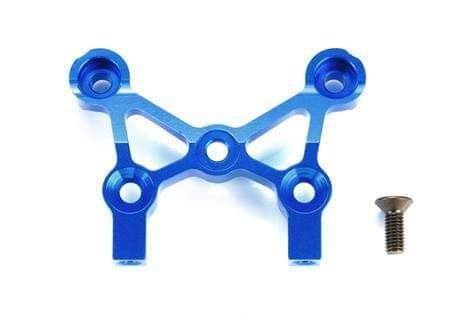

54905 TB-05 Aluminum Rear Damper Stay Mount Source: Tamiya Inc., Japan.

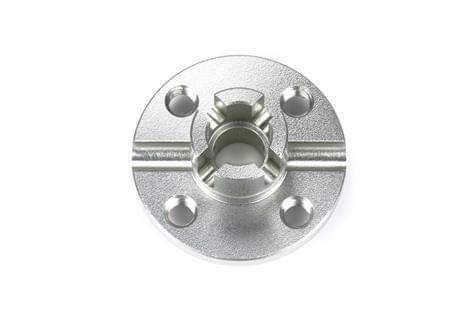

54903 TB-05 Aluminum Spur Gear Holder Source: Tamiya Inc., Japan.


Tom1977 is offline
Old 08-08-2019, 11:51 AM
  #284
Tech Initiate

NCHPIboy's Avatar

Join Date: Apr 2019
Location: Hayesville, NC
Posts: 35
Default

Originally Posted by Tom1977 View Post
Some new parts will arrive soon!



54904 TB-05 Onepiece Motor Plate Source: Tamiya Inc., Japan.


54905 TB-05 Aluminum Rear Damper Stay Mount Source: Tamiya Inc., Japan.


54903 TB-05 Aluminum Spur Gear Holder Source: Tamiya Inc., Japan.
Other than color; what is the difference between 54903 and the kit part?
NCHPIboy is offline
Old 08-08-2019, 12:58 PM
  #285
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default

Originally Posted by NCHPIboy View Post
Other than color; what is the difference between 54903 and the kit part?
Kit is steel, 54903 will be aluminium.
NCHPIboy likes this.
Tom1977 is offline
