The Centro C4.2 kit has been released by Team Associated!









C4.2 Conversion Kit for the RC10B4.2 Buggy

The Centro C4.2 Mid Motor Conversion kit for the B4.2 is now available on RC10.com!

Designed specifically for very high-traction surfaces, the Centro C4.2 Mid Motor conversion for the B4.2 features a hard aluminum one-piece chassis, and an all-new molded gearbox and bulkhead assembly that positions the motor in front of the rear wheel centerline, creating a centralized weight balance.

Additional tuning possibilities are available with Centro's range of optional accessories, including front bulkhead brass weights, front brace, and carbon chassis side stiffeners.

C4.2 Conversion Contains

Hard CNC Aluminum Chassis
CNC Aluminum Rear Suspension mounts with inserts
Aluminum Battery X-Brace
Aluminum Lipo Battery holders
Molded Gearbox casing
Molded Rear Bulkhead
Idler gear, pivot and bearings
Carbon rear shock tower and body mount
Centre chassis tie-rod brace
Front Chassis Brass Posts
Aluminum battery posts
Wing mounts
Ball Studs
Various hardware
Pro-Line® Bulldog C4.2 body & wing


HQ Pictures and a brief writeup (courtesy of petitrc):

http://www.petitrc.com/setup/associated/setupc4.1/C4.2/

Here's some shots from the JConcepts Clash:

http://www.petitrc.com/setup/associa...ood2013090708/


Where to Buy

http://www.amainhobbies.com/product_...C42-Conversion

http://www.teamassociated.com/C4.2/?...gust+7%2C+2013


Instructions:

http://teamassociated.com/pdf/cars_a...manual_cat.pdf


Bodies

http://www.amainhobbies.com/product_...Clearance-Wing


BUILD TIPS

--Tip courtesy of RCBuddha--
  • The Avid Centering kit will fit to the Centro gearbox. You will need an additional 4-40 x 5/8 and 4-40 x 9/16 screws to replace the 440 x 3/8 screws that screw to the motor plate from the inside of the gearbox. I have the correct screws needed. Please PM me and I will get them to you for a small fee. Caution: The Battery X-Brace comes REALLY close to the gear cover. Some grinding of the gear cover may be needed. Here's some pics:







  • When installing the transmission onto the chassis, make sure to keep support turnbuckle not attached to the transmission. Put your battery in, screw down the battery brace and then attach the turnbuckle to the transmission. You don't want to flex chassis, and this will give you the correct length for the turnbuckle.

  • Transmission shims: You may need shims for the diff, below is the correct shims needed. My topshaft also needed to be shimmed. (Pictures coming later) First, shim the topshaft so that the gear sits flush with the idlers. Then add some to the other side so that the play is taken up. Pictures coming soon...

  • The rear shocks need to be shimmed away from the rear shocktower. I suggest 2-2.5mm of shimming on the uppermount. 3-3.5mm on the bottom shock mount. YMMV

    --Tip courtesy of JDM_DOHC_SiR

    OK guys finally got around to posting up some pic's of the areas of the rear arms with the area that needs to have 2mm taken off "as per" WC

    The stock arms come in at 37mm wide so it makes taking 2mm of them easy..you just need a cheap pair of calipers and measure 35mm

    Stock.. non-modified rear arms

    Stock non modified rear arm measurement


    Area's on the rear arms that need to have the 2mm of material removed


    Measurement of the rear arms after 2mm of material has been removed


    Side view of arms


    One more view



    Hope this helps some of you


    --Tip courtesy of Wild Cherry--

  • To replace the front chassis braces with blue:

    http://www.amainhobbies.com/product_...Standoff-Set-5

  • When using the B44 Wing Mount, use this brace:

    http://www.amainhobbies.com/product_...tandoff-Blue-4

  • Transmission build:

    add 3/16 x .010 axle shims (#7368) behind the crush tube on top shaft to remove excess play

  • B44 wing mod:

    switch out the two 4-40 button screws with 5-40

  • Rear arm mod:

    grind front inside of arm for diff outdrive clearance


    --Tip courtesy of BryanJ--

  • For sure the TC3/B44 diff shims are too small on ID to fit over the shoulder of the diff. It seems like 10x12 mm shims are a perfect fit. The gold Durango diff shim set (TDR310033) or Kyosho's set (KYO96647) for the ZX-5 should work. The Kyosho set has two color-coded thicknesses included.


    --information courtesy of JDM_DOHC_SiR--

    OK here is the weight difference on the following rear bulkheads and shock towers

    C4.2 Plastic = 7.8g
    GHEA = 9.8g
    JConcepts = 16.8g

    Now for the rear shock tower

    C4.2 Graphite = 8.2g
    JConcepts = 12.6g

    So your looking at a 17.5g weight gain from the OEM combo and a 15.5g over the GHEA/AE rear bulkhead/OEM tower combo...


    Alternative source for diff shims:



    http://www.rctech.net/forum/12677151-post747.html

Wanna convert your SC10 into a MM?

PM Slick1!

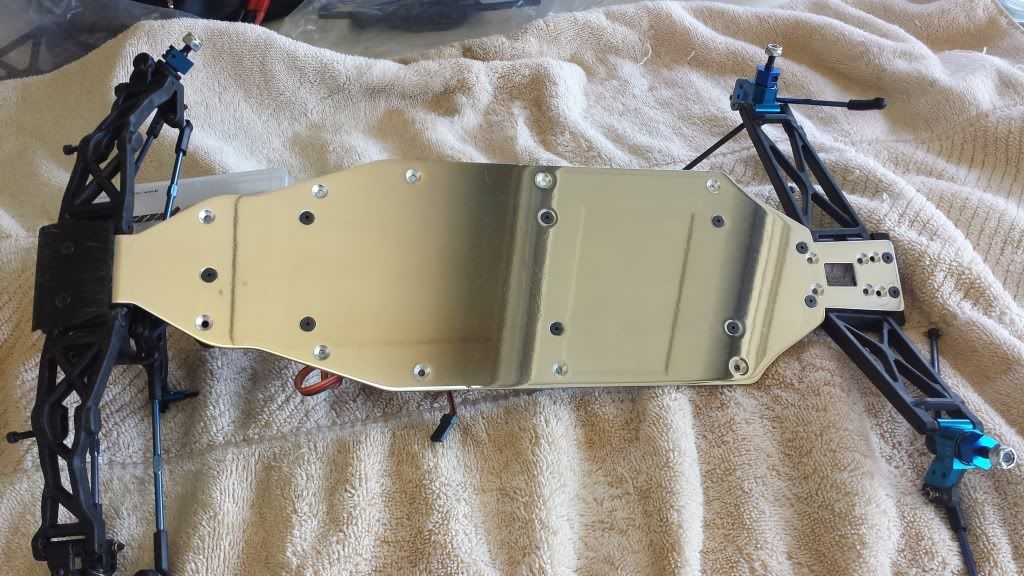

More pictures: http://www.rctech.net/forum/13003881-post3340.html



second customer getting his complete build, requested a polished and clear protecting bottom.




SETUPS

*via iterator*

http://tweakstation.com/2013/11/25/centro-c4-2/

*Via Petitrc and Arn0*

http://www.petitrc.com/setup/associa...entroC4.2.html

Smaller Editable Setup Sheet:

http://www.petitrc.com/setup/associa...tupSheetv2.pdf

*Via Team Associated*

Editable Setup Sheet:

http://www.teamassociated.com/pdf/ca...C4.2_Blank.pdf

Astro Turf:

http://www.teamassociated.com/pdf/ca...g_Stotfold.pdf

Indoor Clay:

http://www.teamassociated.com/pdf/ca...dahl_JBRL6.pdf

http://www.teamassociated.com/pdf/ca...ielke_OCRR.pdf

"Candyland" Outdoor track:

http://www.teamassociated.com/pdf/ca...lieri_ROAR.pdf

http://www.teamassociated.com/pdf/ca...field_ROAR.pdf

http://www.teamassociated.com/pdf/ca...d_Shootout.pdf

http://www.rctech.net/forum/attachme...up-resized.jpg



Batteries:

http://www.teamassociated.com/reedy/parts/details/314/







http://www.redrc.net/2013/09/exclusi...h-square-pack/

http://www.amainhobbies.com/product_...5C-74V-5800mAh


Optional Parts:

SNR Graphite:

http://www.snrgraphite.com/index.php...dex&cPath=4_42







Optional Battery Posts:

http://www.psm-shop.com/option-parts...cml-c4.2-4?c=5

Pre-Cut chassis protectors:

http://www.chassis-slaps.com/Chassis-Slaps-Store.html

http://www.liverc.com/news/new_produ...sis_protector/

http://www.amainhobbies.com/product_...otective-Sheet

MM Wing:

http://www.liverc.com/news/new_produ...or_rear_wing_/

Aluminum Rear Bulkhead:



http://www.teamassociated.com/parts/details/c0089/

Ghea Rear Pivot Blocks:



http://www.absolutehobbyz.com/produc...jtm3mkifglb8e3

Ghea Rear Aluminum Bulkhead:



http://www.absolutehobbyz.com/produc...ducts_id=15598

JConcepts Aluminum:







http://www.liverc.com/news/new_produ..._option_parts/

Carbon Fiber Front shocktower:

http://www.redrc.net/2013/12/jconcep...t-shock-tower/

Weighted Front Bulkhead:



C4.1/2 Brass 18g Front Bulkhead Brace:



C4.1/2 Delrin Front Bulkhead Brace:



C4.1/2 Brass 15g Weight:



C4.1/2 Brass 10g Weight:



C4.1/2 Brass 5g Weight:



C4.1/2 Brass 10g Underbellcrank Weight:



C4.2 Carbon Fiber LiPo Battery Holder:



C4.2 Carbon Laminate Chassis Side Braces and Posts:



Shared Parts with B4.2:

Yaiba:

http://www.tresrey-usa.com/yaiba-racing-ae-b4/

8Racing:

http://www.tresrey-usa.com/8-racing-...associated-b4/

Exotek:

http://www.exotekracing.com/b4-b44-s...ear-hubs-ver2/

STRC:

http://www.teamstrc.com/index.php?ro...tegory&path=60

Avid:

http://avidrc.com/product/5/accessories/

JConcepts:

http://www.jconcepts.net/store/index...=index&cPath=5

Factory One:

http://www.factoryone-rc.com/Products.html

MIP:

http://miponline.com/store/Associate...pUp-Parts.html

Suspension

***information courtesy of 07forester***

Associated Big Bore Rear Spring Rates: - The springs in italics are the "most" commonly used springs for the b4.2

• ASC91335 - 12mm Rear Spring (Black/1.90lbs)
• ASC91336 - 12mm Rear Spring (Green/2.00lbs)
• ASC91337 - 12mm Rear Spring (White/2.10lbs)

• ASC91338 - 12mm Rear Spring (Gray/2.20lbs)
• ASC91339 - 12mm Rear Spring (Blue/2.30lbs)
• ASC91340 - 12mm Rear Spring (Yellow/2.40lbs)


Associated Big Bore Front Spring Rates:
• ASC91325 - 12mm Front Spring (Brown/2.85lbs)
• ASC91326 - 12mm Front Spring (Black/3.00lbs)
• ASC91327 - 12mm Front Spring (Green/3.15lbs)

• ASC91328 - 12mm Front Spring (White/3.30lbs)
• ASC91329 - 12mm Front Spring (Gray/3.45lbs)
• ASC91330 - 12mm Front Spring (Blue/3.60lbs)
• ASC91331 - 12mm Front Spring (Yellow/3.75lbs)
• ASC91332 - 12mm Front Spring (Red/3.90lbs)
• ASC91333 - 12mm Front Spring (Orange/4.05lbs)
• ASC91334 - 12mm Front Spring (Purple/4.20lbs)
[/center]

Last edited by RCBuddha; 04-28-2014 at 08:43 PM. Reason: added additional items
RCBuddha is offline
Old 09-19-2013, 08:14 AM
  #2
Tech Elite
iTrader: (14)

t8rtot's Avatar

Join Date: Nov 2008
Posts: 2,011
Trader Rating: 14 (94%+)
Default

...
t8rtot is offline
Old 09-19-2013, 09:02 AM
  #3
Tech Prophet
iTrader: (83)

Wildcat1971's Avatar

Join Date: Apr 2012
Location: Arizona
Posts: 17,381
Trader Rating: 83 (100%+)
Default

Nice info for the thread
Wildcat1971 is offline
Old 09-19-2013, 10:00 AM
  #4
Tech Regular
iTrader: (12)

Join Date: Feb 2007
Location: SoCal
Posts: 281
Trader Rating: 12 (100%+)
Default

I saw a handful of them being run at OCRC last night.
cjcoffroad is offline
Old 09-19-2013, 10:03 AM
  #5
Tech Elite
iTrader: (35)

t0p_sh0tta's Avatar

Join Date: Aug 2009
Location: Connecticut
Posts: 4,863
Trader Rating: 35 (100%+)
Default

I'd like to see what the setups look like on these.
t0p_sh0tta is offline
Old 09-19-2013, 11:35 AM
  #6
Tech Fanatic
iTrader: (44)

Join Date: Apr 2013
Location: canyon country ca
Posts: 975
Trader Rating: 44 (98%+)
Default

want that carbon shock tower
cobra408 is offline
Old 09-19-2013, 12:28 PM
  #7
Tech Adept

Join Date: Sep 2010
Location: Puerto Rico
Posts: 202
Default

Just got mine in the mail,, YEAHH,,, I've been running the C4.1 in carpet and it is a BEAST. C4.2 should be even better, and now that the Ryans are running them, should have great setups.
indybobb is offline
Old 09-19-2013, 12:32 PM
  #8
Tech Prophet
iTrader: (83)

Wildcat1971's Avatar

Join Date: Apr 2012
Location: Arizona
Posts: 17,381
Trader Rating: 83 (100%+)
Default

I recall AE saying they had no plans to put c4.2 setups on their website. If they win the worlds that "might" change, but I would expect them to appear on petitrc
Wildcat1971 is offline
Old 09-19-2013, 12:38 PM
  #9
Tech Regular
iTrader: (6)

Join Date: Feb 2005
Location: iowa
Posts: 470
Trader Rating: 6 (100%+)
Default

I cant wat to get one i like the alum chassis it should keep the C O G nice and low.
blingy is offline
Old 09-19-2013, 04:45 PM
  #10
R/C Tech Elite Member
Thread Starter
iTrader: (39)

RCBuddha's Avatar

Join Date: Mar 2003
Location: SoCal
Posts: 2,047
Trader Rating: 39 (100%+)
Default

I will post setups to my original post as they come available. I'm a little surprised they haven't posted any of the setups they've been running so far.
RCBuddha is offline
Old 09-19-2013, 09:30 PM
  #11
Tech Elite
iTrader: (22)

CraigMBA's Avatar

Join Date: Mar 2003
Location: Valley of the Dirt, CA
Posts: 2,832
Trader Rating: 22 (100%+)
Default

First!

CraigMBA is offline
Old 09-19-2013, 09:42 PM
  #12
Guest
iTrader: (13)

Join Date: Dec 2012
Location: south fulton tn
Posts: 1,175
Trader Rating: 13 (100%+)
Default

Originally Posted by CraigMBA View Post
First!

Quit showing off an put together. Hahaha
Heck I am on the fence, buy a losi 22 2.0 or the b4.2/centro conversion.
I wonder how the centro would handle a loamy outside track???
kyoshoracer77 is offline
Old 09-19-2013, 09:43 PM
  #13
Tech Addict
iTrader: (1)

gee-dub's Avatar

Join Date: Jul 2003
Location: Fontana, CA
Posts: 631
Trader Rating: 1 (100%+)
Default

Anyone know of any SoCal retail shops, preferably in the IE, that have these in stock?
gee-dub is offline
Old 09-19-2013, 09:48 PM
  #14
Guest
iTrader: (13)

Join Date: Dec 2012
Location: south fulton tn
Posts: 1,175
Trader Rating: 13 (100%+)
Default

Originally Posted by gee-dub View Post
Anyone know of any SoCal retail shops, preferably in the IE, that have these in stock?
I think u got to order it from associated.
kyoshoracer77 is offline
Old 09-19-2013, 10:53 PM
  #15
Tech Elite
iTrader: (22)

CraigMBA's Avatar

Join Date: Mar 2003
Location: Valley of the Dirt, CA
Posts: 2,832
Trader Rating: 22 (100%+)
Default

First new build issue:

1. Centro specs two 4/40 x3/8" socket head screws in box three. They sent caps and won't fit. Luckily I have hardware.
2. There is 0.020 inches side to side play in the differential after the case is closed up.
3. The lack of hardware continues in box 12.

Other than the side play in the case, the transmission is quiet and fairly free.

Too tired to carry on, see you cats tomorrow.

Last edited by CraigMBA; 09-20-2013 at 08:13 AM.
CraigMBA is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
