Im trying to understand bumpsteer on the truck. on the set up sheet it looks like its showing pictures of the ball ends.. how does one mess with it.. is it something as simple as flipping the steering ball ends ? or am i missing something
Moogumby is offline
Old 08-25-2011, 09:47 AM
  #18392
Tech Adept
iTrader: (8)

Cement head's Avatar

Join Date: Aug 2011
Location: The Ocean State
Posts: 166
Trader Rating: 8 (100%+)
Default

Originally Posted by troyer25 View Post
http://www.teamcrc.com/crc/modules.p...prodID=7719162

team CRC 5600 65c, excellent batteries, great power I am getting 11-12 min runtime with castle 1410 w/ 14t pinion on a large 200'x90' 1/8th scale track, Eight-e will vouch for these batterries also I am sure
I've been running a CRC 6100 55c and it an awesome battery, been using for 6-7 weeks now with no issues. Mmp/tekin 4.5. Savox servo.
Cement head is offline
Old 08-25-2011, 09:47 AM
  #18393
Tech Master
iTrader: (37)

Mr.juarez's Avatar

Join Date: Dec 2008
Posts: 1,280
Trader Rating: 37 (100%+)
Default

Originally Posted by Moogumby View Post
Im trying to understand bumpsteer on the truck. on the set up sheet it looks like its showing pictures of the ball ends.. how does one mess with it.. is it something as simple as putting the steering ball ends on either side of the arm?
i run bump steer up. as from what i was told you want bump steer up in "rough" tracks.(correct me if im wrong) stock i believe they come with bump steer down just flip both up like i did. the ones you should be messing are the ones by the bell cranks next to the anchorman arm. if you mess with the outer one which i did by mistake the rod end binds with the arms where the ball end cap is supposed to be instead.
Mr.juarez is offline
Old 08-25-2011, 09:59 AM
  #18394
Tech Addict
iTrader: (19)

SNR Graphite's Avatar

Join Date: May 2011
Location: So Cal
Posts: 586
Trader Rating: 19 (100%+)
Default

Any of you guys going to OCRC Surf City race this weekend I will be their with some CF parts just call or text me I can bring it with me.

Steve
www.snrgraphite.com
714-767-0191
SNR Graphite is offline
Old 08-25-2011, 10:11 AM
  #18395
Tech Champion
iTrader: (141)

RC*PHREAK's Avatar

Join Date: Dec 2010
Posts: 5,135
Trader Rating: 141 (100%+)
Default

Originally Posted by mellen_mpz View Post
Well, I hit LVC (while in the lead of the a-main) when I figured out the batteries were not as advertised. When I got the second batch (arrived as I was backing out of the driveway to go race) I also hit LVC while leading the A main. I had to go back to a Turnigy 5200 that I had but they tried a 10 minute main this past saturday so I hit LVC this past saturday at about 8 min. So so far, these batteries have cost me 3 races (well...actually 2 but since I didnt get what I paid for I had to use a turnigy for the 3rd!).

I ordered some Nanotech 6000 packs. I had a good experience running those turnigy 5200's for a year so I'm going to give their nano-techs a try
Originally Posted by Ridley View Post
The Nanotech 65-135C 6000's are awesome!!!
i finally got to run my nanotech 6000/65C last weekend. after hitting a very conservative lipo cutoff (7.4v in pack), the pack took 6178mah. so far very impressed.
RC*PHREAK is offline
Old 08-25-2011, 10:28 AM
  #18396
Tech Elite
iTrader: (37)

CHIZZLE's Avatar

Join Date: Jan 2011
Location: Glendale, AZ
Posts: 2,291
Trader Rating: 37 (100%+)
Default

Originally Posted by mellen_mpz View Post
Well, I hit LVC (while in the lead of the a-main) when I figured out the batteries were not as advertised. When I got the second batch (arrived as I was backing out of the driveway to go race) I also hit LVC while leading the A main. I had to go back to a Turnigy 5200 that I had but they tried a 10 minute main this past saturday so I hit LVC this past saturday at about 8 min. So so far, these batteries have cost me 3 races (well...actually 2 but since I didnt get what I paid for I had to use a turnigy for the 3rd!).

I ordered some Nanotech 6000 packs. I had a good experience running those turnigy 5200's for a year so I'm going to give their nano-techs a try
Wrong batman. That was only an 8 minute main.
CHIZZLE is offline
Old 08-25-2011, 11:24 AM
  #18397
Tech Regular
iTrader: (22)

colter's Avatar

Join Date: Jan 2011
Location: Burnet, TX
Posts: 464
Trader Rating: 22 (100%+)
Default

Originally Posted by Cement head View Post
I've been running a CRC 6100 55c and it an awesome battery, been using for 6-7 weeks now with no issues. Mmp/tekin 4.5. Savox servo.
Yep- awesome battery! Had one since March and it is as good as the day I got it. Great power and long run times. 8 min mains with plenty left to spare running a RX8/2650 on my SCTE.
colter is offline
Old 08-25-2011, 11:40 AM
  #18398
Tech Elite
iTrader: (37)

godofcable's Avatar

Join Date: Oct 2010
Location: Spring Hill Fl
Posts: 2,022
Trader Rating: 37 (100%+)
Default

Originally Posted by colter View Post
Yep- awesome battery! Had one since March and it is as good as the day I got it. Great power and long run times. 8 min mains with plenty left to spare running a RX8/2650 on my SCTE.
are they really $150? or do they sell them cheaper?
godofcable is offline
Old 08-25-2011, 11:48 AM
  #18399
dtr
Tech Master

dtr's Avatar

Join Date: May 2011
Location: budapest, hungary
Posts: 1,664
Default

Originally Posted by CHIZZLE View Post
Anybody know the size of the shims/washers behind the sun gears? The ones that are under the pin? Also, what size are the o-rings?
shim: 5.25x11.8x0.3mm
o-rings> 4.5x7.5x1.5mm
dtr is offline
Old 08-25-2011, 12:29 PM
  #18400
Tech Addict
iTrader: (19)

SNR Graphite's Avatar

Join Date: May 2011
Location: So Cal
Posts: 586
Trader Rating: 19 (100%+)
Default

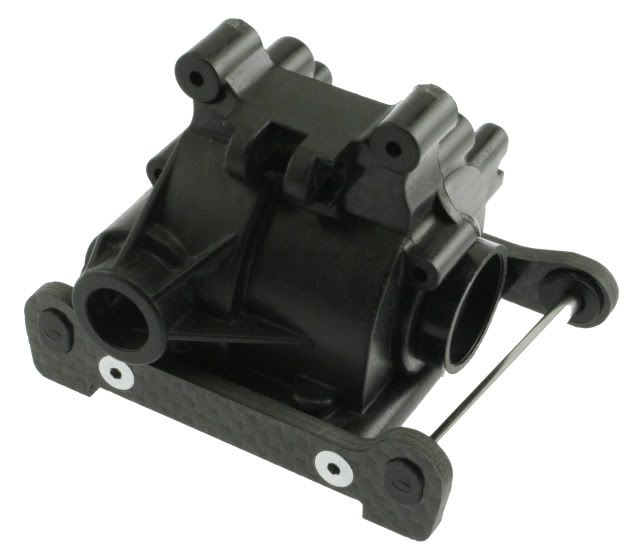

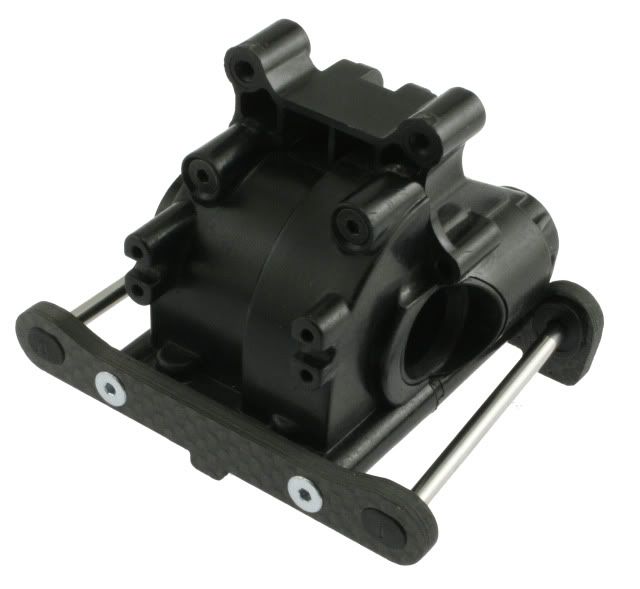

some of you guys ask about the adjustable hinge pin holder here is a couple of pix of the rear set.



SNR Graphite is offline
Old 08-25-2011, 12:52 PM
  #18401
Tech Master
iTrader: (21)

suby723's Avatar

Join Date: May 2011
Location: Spring Hill Tennessee
Posts: 1,378
Trader Rating: 21 (100%+)
Default

Originally Posted by losi_racer View Post
U actually thought the opposite . Lane set up is very stable but it was to locked n place for a small track .I like Casey set up more but everyone has different opinions
I was meaning to say run dakotahs setup on a 8th scale track and aarons for indoor or small outdoor setup.
suby723 is offline
Old 08-25-2011, 01:03 PM
  #18402
Tech Prophet
iTrader: (34)

Casper's Avatar

Join Date: Aug 2004
Location: Orange, Ca
Posts: 17,869
Trader Rating: 34 (100%+)
Default

Originally Posted by suby723 View Post
I was meaning to say run dakotahs setup on a 8th scale track and aarons for indoor or small outdoor setup.
They are the same setup except for a ride height tweak. This is a high bite smooth setup. Not saying it won't work in other conditions as we ran it on a wet outdoor track with great results but if you are running on a large 8th scale track with ruts and bumps casey's setup might be better.
Casper is offline
Old 08-25-2011, 01:19 PM
  #18403
Tech Champion
iTrader: (25)

losi_racer's Avatar

Join Date: Nov 2008
Location: mesa,az
Posts: 6,470
Trader Rating: 25 (100%+)
Default

Originally Posted by suby723 View Post
I was meaning to say run dakotahs setup on a 8th scale track and aarons for indoor or small outdoor setup.
Sorry read my post you quoted ,I didn't mean you ment I thought opposite.




Casper , maybe you can explain this as your far more knowledge able on the set up then I am . We spoke before about these two set ups. In my findings I felt the lane set up was very stable ,great traction , more corner speed ,but couldn't rotate that well . Then with peck set up it feels it can rotate a lot better,still stable in corners ,little less traction but not bad.


From what I can see peck set up would be best on a small track ,as it rotates a lot better for 90's and 180's .

Lane set up works better on bigger tracks as you don't need the rotation like you need on small tracks.you can hold throttle more in long corners. Good traction for high speed .

I know set ups are different track to track ,person to person ,so I'm just trying to understand your thinking on this .
losi_racer is offline
Old 08-25-2011, 01:31 PM
  #18404
Tech Master
iTrader: (9)

ScottKelly911's Avatar

Join Date: Jun 2010
Location: Los Angeles
Posts: 1,736
Trader Rating: 9 (100%+)
Default

Originally Posted by SNR Graphite View Post
some of you guys ask about the adjustable hinge pin holder here is a couple of pix of the rear set.





Count me in for a set Steve!!!!
ScottKelly911 is offline
Old 08-25-2011, 01:37 PM
  #18405
Tech Prophet
iTrader: (34)

Casper's Avatar

Join Date: Aug 2004
Location: Orange, Ca
Posts: 17,869
Trader Rating: 34 (100%+)
Default

I run the lane setup on some pretty tight tracks. I agree that going to 5K in the front diff will let it steer some more on tighter tracks but with good traction the heavier diffs really help with acceleration. On a more blown out or rutted track the lighter diffs will allow the drive train to soak up more stuff and keep the truck more stable.

Again guys no one size fits all here. We all have different driving styles and different wants to how a car runs so this is not going to be for everyone. No setup is or should be. We have three guys that have worked hard to develope the lane setup and we all have slightly different driving styles but all are going very fast with it. We are 1-3 in the standings for the JBRL which is our local traveling series. Most of the tracks we run on have decent to good traction. Low dust conditions. Truck works awesome for all of these places. We don't run our trucks much on outdoor 8th scale tracks so our setups are developed for the conditions we are racing on here in So Cal.
