Go Back  R/C Tech Forums > General Forums > Electric Off-Road
Schumacher Cougar Laydown 2019 >

Schumacher Cougar Laydown 2019

Like Tree5Likes

Schumacher Cougar Laydown 2019

Reply

Old 05-10-2019, 11:02 PM
  #1
Tech Champion
Thread Starter
iTrader: (76)

Join Date: Sep 2002
Location: Stokes, NC
Posts: 6,821
Trader Rating: 76 (100%+)
Default Schumacher Cougar Laydown 2019

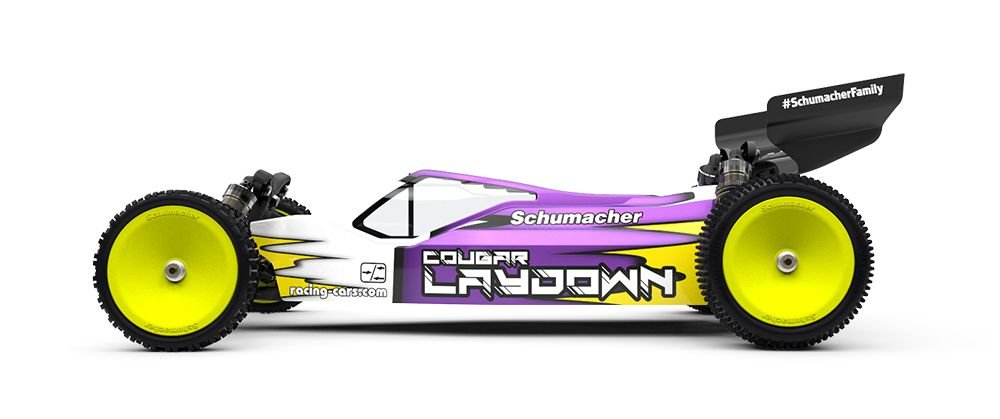

Well like the title says, Schumacher has announced their newest 2wd arsenal. It has been doing very well at many of the largest venues of 1/10 racing worldwide. Looks to have a lot of new features while also retaining some tried and true Schumacher heritage. There is a lot of buzz across the internet for this one. Will it be your newest buggy? Visit www.racing-cars.com for all the newest details.

Here's a list of specs from Schumacher Cougar Laydown SpecificationEquipment Needed
  • 2 Channel Radio
  • Motor
  • Servo
  • Electric Speed Control
  • Tyres
  • Motor Pinion
  • Lipo Battery
  • Paint for Bodyshell

Power Source:ELECTRICModel Type:2WD, OFF-ROAD, COMPETITIONLength:395mmWheelbase:285mmWidth:250mmTop Speed:40 MPH+Features
  • 3 gear, low centre of gravity sealed gearbox.
  • Small, low rotating mass transmission, including gear differential. With 3 position height adjustment, to adjust for driveshaft plunge and mixed track conditions. Optional ball diff available.
  • Easy access transmission system, for quick diff access and maintenance.
  • 2.5mm aluminium chassis, with sensor lead wiring channels.
  • Screw Piston Fixing, with titanium nitride shafts, for easy build, precision and durability.
  • Dual postition radio equipment mounting plate.
  • Front shock tower cover to protect your car and the track.
  • Lightweight steel CVD driveshafts.
  • Low drop wing mount.
  • Lightweight lower spring retaining cup.
  • Rear wishbone geometry.
  • Inboard Toe Inserts.
  • Adjustable rear roll centres, inboard toe-in and anti-squat.
  • Rear transmission mounted pivot strap. Increased chassis clearance.
  • Threaded spring collars, for better location and adjustment.
  • Spur Gear Shield.
  • Cable managment system.
  • 2mm Hex Pro ball studs.
  • 23 super precision ball bearings.
  • Compact steering system for improved in-line weight placement, with adjustable and dynamic ackerman.
  • Front 5 deg yokes with adjustable roll centre heights.
  • Strong front steering hub, with fine ‘Kwik Klip’ adjustment.
  • Class leading suspension geometry with durable components and a range of optional alloy parts, offering adjustments to set up your Cougar Laydown.
  • Big bore shocks with big bore “CORE” springs. Threaded collars and twin o-ring sealing.
  • Improved, more durable, lightweight ball mounted, two piece shock cap with bleed screw.
  • Front camber captive ball joints.
  • ‘Gull Wing’ wishbones with anti roll bar option.
  • 12mm Hex Wheels with industry standard offset.
  • Shock seal pack housing with 'O' ring sealing to prevent loosening.
  • Multiple battery fitting options.
  • Specially formulated composite moulded side pods for advanced chassis stiffness tuning.
  • Easy to use battery thumb screws.
  • Durable, specially formulated composite "S2" material 4mm shock tower mounts.
  • Rear transmission mounted pivot strap. Increased chassis clearance.
  • Lightweight, twin pad 80t slipper clutch with ultra fine adjustment spring.
  • Optional rear shock location in front or behind the wishbones, standard in the kit.












Raul Garcia is offline
Reply With Quote
Old 05-10-2019, 11:06 PM
  #2
Tech Champion
Thread Starter
iTrader: (76)

Join Date: Sep 2002
Location: Stokes, NC
Posts: 6,821
Trader Rating: 76 (100%+)
Default




Raul Garcia is offline
Reply With Quote
Old 05-11-2019, 12:01 AM
  #3
Tech Adept

dikke hond's Avatar

Join Date: Jul 2012
Location: The Netherlands
Posts: 100
Default

Beautiful car!
Raul Garcia likes this.
dikke hond is offline
Reply With Quote
Old 05-11-2019, 12:28 PM
  #4
Tech Rookie

Join Date: Jan 2018
Posts: 9
Default

Any idea of the new release date?
jpfogarty75 is offline
Reply With Quote
Old 05-12-2019, 06:26 AM
  #5
Tech Regular

Join Date: May 2011
Posts: 271
Default

does it come with roll bars for carpet or do you have to buy them separate
ScottZ is offline
Reply With Quote
Old 05-12-2019, 09:05 PM
  #6
Tech Champion
Thread Starter
iTrader: (76)

Join Date: Sep 2002
Location: Stokes, NC
Posts: 6,821
Trader Rating: 76 (100%+)
Default

Originally Posted by jpfogarty75 View Post
Any idea of the new release date?
should be any day now. If you would like to order one please PM me.
Raul Garcia is offline
Reply With Quote
Old 05-12-2019, 09:08 PM
  #7
Tech Champion
Thread Starter
iTrader: (76)

Join Date: Sep 2002
Location: Stokes, NC
Posts: 6,821
Trader Rating: 76 (100%+)
Default

Originally Posted by ScottZ View Post
does it come with roll bars for carpet or do you have to buy them separate
unfortunately it does not come with sway bars for the front or rear. But the front bars for the KC fit no issue there. The KC rear sway bars fit but need to be trimmed about 4-5mm from the ends. I also use Mi6 ball joint and socket.

I hope this helps.
ScottZ likes this.
Raul Garcia is offline
Reply With Quote
Old 05-15-2019, 11:10 PM
  #8
Tech Champion
Thread Starter
iTrader: (76)

Join Date: Sep 2002
Location: Stokes, NC
Posts: 6,821
Trader Rating: 76 (100%+)
Default

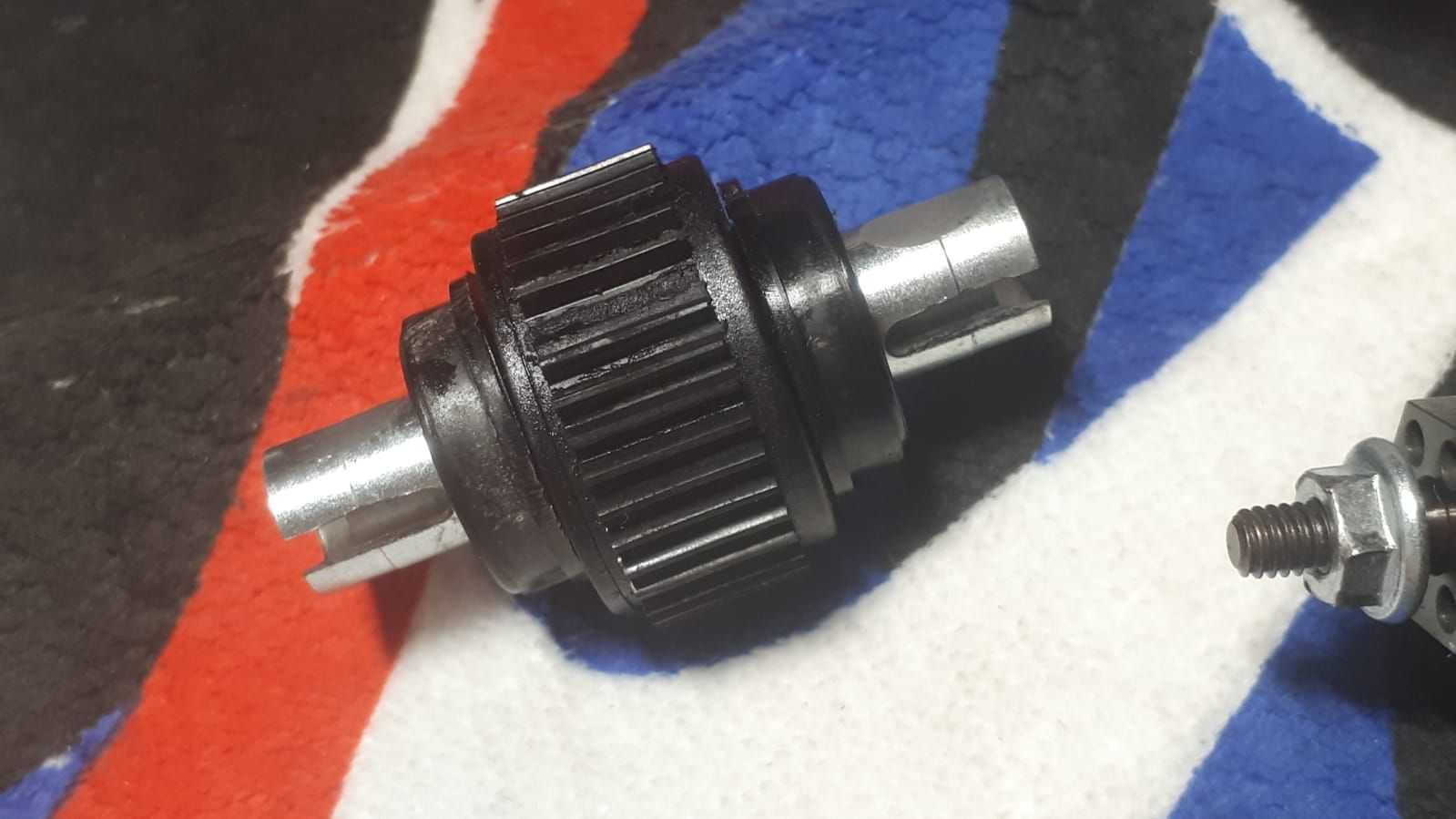

Finally my pics!
Raul Garcia is offline
Reply With Quote
Old 05-16-2019, 11:45 PM
  #9
Tech Regular

lexusbest's Avatar

Join Date: Apr 2017
Posts: 279
Default


We are having an issue with the new LD. There's no way to finish a race with this car. It's breaking diffs non stop.
anyone know how to solve this?
lexusbest is offline
Reply With Quote
Old 05-16-2019, 11:52 PM
  #10
Tech Champion
Thread Starter
iTrader: (76)

Join Date: Sep 2002
Location: Stokes, NC
Posts: 6,821
Trader Rating: 76 (100%+)
Default

Originally Posted by lexusbest View Post

We are having an issue with the new LD. There's no way to finish a race with this car. It's breaking diffs non stop.
anyone know how to solve this?
How long have you had the LD? Schumacher absolutely will help resolve this problem your having. If they dont follow through, just either PM me or email me directly to [email protected] and also where are you located?
What position are you running the diff? Slipper clutch, slipper eliminator, stock or mod(what turn) , and surface.
lexusbest likes this.
Raul Garcia is offline
Reply With Quote
Old 05-17-2019, 12:43 AM
  #11
Tech Apprentice

Join Date: Oct 2009
Posts: 85
Default

@lexusbest:
i assume you have one of the pre-production Kits and therefore a faulty transmission case wit a lot of play for the Diff.This will most likely be your problem.
I raced only one race with my PP-LD on wet astro so I haven't had that problem..

Cruise
CruiseM is offline
Reply With Quote
Old 05-17-2019, 03:02 AM
  #12
Tech Regular

lexusbest's Avatar

Join Date: Apr 2017
Posts: 279
Default

Originally Posted by CruiseM View Post
@lexusbest:
i assume you have one of the pre-production Kits and therefore a faulty transmission case wit a lot of play for the Diff.This will most likely be your problem.
I raced only one race with my PP-LD on wet astro so I haven't had that problem..

Cruise
must be the case. Thank you so much!
lexusbest is offline
Reply With Quote
Old 05-18-2019, 11:51 AM
  #13
Tech Rookie

Join Date: May 2019
Posts: 2
Default Ball diff

Does anyone know when the ball diff will be available for these? Should be getting mine delivered on Monday
ABradHabit is offline
Reply With Quote
Old 05-18-2019, 12:09 PM
  #14
Super Moderator
iTrader: (85)

1/8 IC Fan's Avatar

Join Date: Jan 2012
Location: North America & Europe
Posts: 4,567
Trader Rating: 85 (100%+)
Default

Originally Posted by ABradHabit View Post
Does anyone know when the ball diff will be available for these? Should be getting mine delivered on Monday
they can be found from The Border.
1/8 IC Fan is offline
Reply With Quote
Old 05-18-2019, 12:11 PM
  #15
Tech Champion
Thread Starter
iTrader: (76)

Join Date: Sep 2002
Location: Stokes, NC
Posts: 6,821
Trader Rating: 76 (100%+)
Default

Originally Posted by ABradHabit View Post
Does anyone know when the ball diff will be available for these? Should be getting mine delivered on Monday
What surface are you running on?
Raul Garcia is offline
Reply With Quote
