Tech Adept

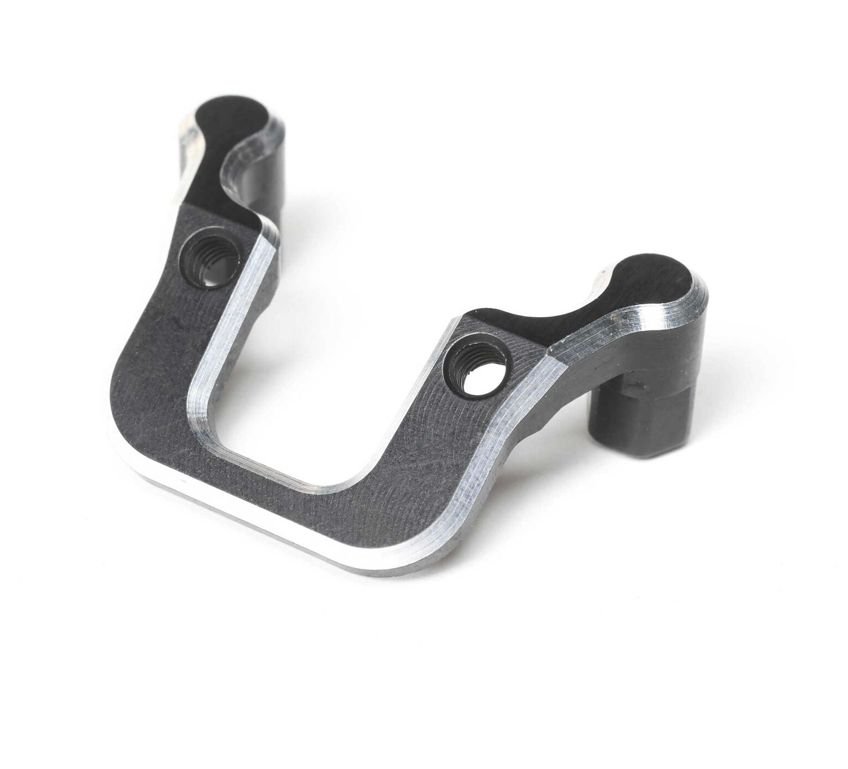

Team Losi Racing Tranny to Chassis Brace, Aluminum, Laydown: 22 5.0 | Horizon Hobby
This is going to be difficult to explain, but i will do my best.
So, if you look on the 22 5.0 chassis, there is a rectangular machined out area directly below the waterfall and the laydown transmission, where the top shaft for the spur gear lives.
I believe this is a hold over from the 4 gear stand up tranny on the 4.0, but has also been used for brass weights as well.
That pocket, is where this fits.
The larger piece fits underneath the drive side of the transmission, and interfaces around the lower screw boss for the drive side of the transmission case, where the motor plate secures.
This was the best image example i could find in 30 seconds, without taking the picture myself.
The smaller section fits over the top of the larger piece on the non-drive side, and screws into the side of the transmission case. Which is why the longer button head screw is provided with this kit.
And then the tapered flat head screw is screwed in through the bottom of the chassis, threads into the base of the larger piece (screw hole visible), and may thread into the smaller part that overlaps that area as well. Locking them all together, and tying the transmission into the chassis plate to reduce a significant amount of flex.
I suspect this change is primarily for carpet use. As there is quite a bit of flex in the rear of the 5.0 Chassis. Enough that, on dirt, a lot of the factory guys dont even run the screw that connects the motor plate to the waterfall to promote flex, which, depending on conditions, can help introduce additional flex to make the car turn better under power.
I had also spotted a 3D resin printed transmission late last year on a TLR car that had this section filled in with plastic in the same area. Or what i assumed was a Resin Printed transmission case. I made a comment about it, and it was quickly covered up with a yellow microfiber, and i was ignored. LOL! Then the car was removed not long after that.
The only downside to this for me, is that i cant run my Vision Racing 22x-4 arm conversion (which uses the same chassis hole to mount to secure a customer C block to run the 22x-4 arms un-modified), and this brace at the same time. That said, i am SURE the guys at Vision Racing will come up with a solution that provides the same functionality.
This is going to be difficult to explain, but i will do my best.
So, if you look on the 22 5.0 chassis, there is a rectangular machined out area directly below the waterfall and the laydown transmission, where the top shaft for the spur gear lives.
I believe this is a hold over from the 4 gear stand up tranny on the 4.0, but has also been used for brass weights as well.
That pocket, is where this fits.
The larger piece fits underneath the drive side of the transmission, and interfaces around the lower screw boss for the drive side of the transmission case, where the motor plate secures.
This was the best image example i could find in 30 seconds, without taking the picture myself.
The smaller section fits over the top of the larger piece on the non-drive side, and screws into the side of the transmission case. Which is why the longer button head screw is provided with this kit.
And then the tapered flat head screw is screwed in through the bottom of the chassis, threads into the base of the larger piece (screw hole visible), and may thread into the smaller part that overlaps that area as well. Locking them all together, and tying the transmission into the chassis plate to reduce a significant amount of flex.
I suspect this change is primarily for carpet use. As there is quite a bit of flex in the rear of the 5.0 Chassis. Enough that, on dirt, a lot of the factory guys dont even run the screw that connects the motor plate to the waterfall to promote flex, which, depending on conditions, can help introduce additional flex to make the car turn better under power.
I had also spotted a 3D resin printed transmission late last year on a TLR car that had this section filled in with plastic in the same area. Or what i assumed was a Resin Printed transmission case. I made a comment about it, and it was quickly covered up with a yellow microfiber, and i was ignored. LOL! Then the car was removed not long after that.
The only downside to this for me, is that i cant run my Vision Racing 22x-4 arm conversion (which uses the same chassis hole to mount to secure a customer C block to run the 22x-4 arms un-modified), and this brace at the same time. That said, i am SURE the guys at Vision Racing will come up with a solution that provides the same functionality.
03-31-2022, 12:54 PM
#2388
all I can say is if horizon is blowing out the inventory on the old cars just to release a 22 5.1 that just has some minor updates like this new brace and the front end mod stuff but no transmission with quick removal diff. it will be the biggest flop in history. I hope I'm wrong. there's definitely something happening very soon with them discounting the old cars that heavily
03-31-2022, 01:18 PM
#2389
Tech Adept
Well, messing around with the part numbers, also found a new aluminum wing mount as well.
https://www.horizonhobby.com/product...TLR331058.html
About damn time. I have spent, EASILY three times that on the crappy plastic ones.
Also found some new 22X-4 parts.
A new drag link.
https://www.horizonhobby.com/product...TLR331061.html
Which, when compared to the old one, appears to have the turnbuckle mounts closer, and higher up in relation to the bellcranks. No idea what that would do to the ackermann, or the steering geometry.
Here is the old part for comparison. https://www.horizonhobby.com/product...TLR331052.html
Also a new "Medium Flex" Steering Brace.
https://www.horizonhobby.com/product...TLR331057.html
As compared to the older one.
https://www.horizonhobby.com/product...TLR331049.html
https://www.horizonhobby.com/product...TLR331058.html
About damn time. I have spent, EASILY three times that on the crappy plastic ones.
Also found some new 22X-4 parts.
A new drag link.
https://www.horizonhobby.com/product...TLR331061.html
Which, when compared to the old one, appears to have the turnbuckle mounts closer, and higher up in relation to the bellcranks. No idea what that would do to the ackermann, or the steering geometry.
Here is the old part for comparison. https://www.horizonhobby.com/product...TLR331052.html
Also a new "Medium Flex" Steering Brace.
https://www.horizonhobby.com/product...TLR331057.html
As compared to the older one.
https://www.horizonhobby.com/product...TLR331049.html
03-31-2022, 01:19 PM
#2390
Tech Master
Originally Posted by BigBuckORamma
Team Losi Racing Tranny to Chassis Brace, Aluminum, Laydown: 22 5.0 | Horizon Hobby
This is going to be difficult to explain, but i will do my best.
So, if you look on the 22 5.0 chassis, there is a rectangular machined out area directly below the waterfall and the laydown transmission, where the top shaft for the spur gear lives.
I believe this is a hold over from the 4 gear stand up tranny on the 4.0, but has also been used for brass weights as well.
That pocket, is where this fits.
The larger piece fits underneath the drive side of the transmission, and interfaces around the lower screw boss for the drive side of the transmission case, where the motor plate secures.
This was the best image example i could find in 30 seconds, without taking the picture myself.
The smaller section fits over the top of the larger piece on the non-drive side, and screws into the side of the transmission case. Which is why the longer button head screw is provided with this kit.
And then the tapered flat head screw is screwed in through the bottom of the chassis, threads into the base of the larger piece (screw hole visible), and may thread into the smaller part that overlaps that area as well. Locking them all together, and tying the transmission into the chassis plate to reduce a significant amount of flex.
I suspect this change is primarily for carpet use. As there is quite a bit of flex in the rear of the 5.0 Chassis. Enough that, on dirt, a lot of the factory guys dont even run the screw that connects the motor plate to the waterfall to promote flex, which, depending on conditions, can help introduce additional flex to make the car turn better under power.
I had also spotted a 3D resin printed transmission late last year on a TLR car that had this section filled in with plastic in the same area. Or what i assumed was a Resin Printed transmission case. I made a comment about it, and it was quickly covered up with a yellow microfiber, and i was ignored. LOL! Then the car was removed not long after that.
The only downside to this for me, is that i cant run my Vision Racing 22x-4 arm conversion (which uses the same chassis hole to mount to secure a customer C block to run the 22x-4 arms un-modified), and this brace at the same time. That said, i am SURE the guys at Vision Racing will come up with a solution that provides the same functionality.
This is going to be difficult to explain, but i will do my best.
So, if you look on the 22 5.0 chassis, there is a rectangular machined out area directly below the waterfall and the laydown transmission, where the top shaft for the spur gear lives.
I believe this is a hold over from the 4 gear stand up tranny on the 4.0, but has also been used for brass weights as well.
That pocket, is where this fits.
The larger piece fits underneath the drive side of the transmission, and interfaces around the lower screw boss for the drive side of the transmission case, where the motor plate secures.
This was the best image example i could find in 30 seconds, without taking the picture myself.
The smaller section fits over the top of the larger piece on the non-drive side, and screws into the side of the transmission case. Which is why the longer button head screw is provided with this kit.
And then the tapered flat head screw is screwed in through the bottom of the chassis, threads into the base of the larger piece (screw hole visible), and may thread into the smaller part that overlaps that area as well. Locking them all together, and tying the transmission into the chassis plate to reduce a significant amount of flex.
I suspect this change is primarily for carpet use. As there is quite a bit of flex in the rear of the 5.0 Chassis. Enough that, on dirt, a lot of the factory guys dont even run the screw that connects the motor plate to the waterfall to promote flex, which, depending on conditions, can help introduce additional flex to make the car turn better under power.
I had also spotted a 3D resin printed transmission late last year on a TLR car that had this section filled in with plastic in the same area. Or what i assumed was a Resin Printed transmission case. I made a comment about it, and it was quickly covered up with a yellow microfiber, and i was ignored. LOL! Then the car was removed not long after that.
The only downside to this for me, is that i cant run my Vision Racing 22x-4 arm conversion (which uses the same chassis hole to mount to secure a customer C block to run the 22x-4 arms un-modified), and this brace at the same time. That said, i am SURE the guys at Vision Racing will come up with a solution that provides the same functionality.
03-31-2022, 01:24 PM
#2391
Tech Adept
Originally Posted by walter white
all I can say is if horizon is blowing out the inventory on the old cars just to release a 22 5.1 that just has some minor updates like this new brace and the front end mod stuff but no transmission with quick removal diff. it will be the biggest flop in history. I hope I'm wrong. there's definitely something happening very soon with them discounting the old cars that heavily
The "Flash Sale" prices on MSRP from Horizon, are exactly the same as the street prices that those kits have been on A-Main/Beach RC/Etc. for the last 6 months.
03-31-2022, 01:38 PM
#2392
Originally Posted by BigBuckORamma
I wouldnt read too much into it.
The "Flash Sale" prices on MSRP from Horizon, are exactly the same as the street prices that those kits have been on A-Main/Beach RC/Etc. for the last 6 months.
The "Flash Sale" prices on MSRP from Horizon, are exactly the same as the street prices that those kits have been on A-Main/Beach RC/Etc. for the last 6 months.
03-31-2022, 01:47 PM
#2393
I doubt it's because a of a new car. Their entire fleet is on sale, not just one particular model, Spektrum too. I'm going to pick up the 5.0 on sale just because.
03-31-2022, 02:34 PM
#2394
Tech Adept
Originally Posted by walter white
I definitely think your wrong. 339.00 for a 22 5.0 elite. elite kits have been at around 420.00 for a while now at tracks and online. 339.00 is cheaper than when the elite first came out. it was priced at 369.99 then.
I didn't notice they had a coupon associated with the sale, they weren't simply discounted TO that price.
BBBUUUUTTT...also this...
Originally Posted by chevmaro
I doubt it's because a of a new car. Their entire fleet is on sale, not just one particular model, Spektrum too. I'm going to pick up the 5.0 on sale just because.
03-31-2022, 06:03 PM
#2395
Ok, from looking at the parts for that transmission to chassis brace, yeah, it’s a little difficult to visualize how that mounts without having seen it on a buggy yet… but at least there’s no mystery about this part:
It’s about time!
It’s about time!
04-02-2022, 01:55 PM
#2396
So, I'm building this 5.0 elite and working on bag G. Illustrations show a rear bumper, steps do not show a rear bumper and I don't see one in my kit. Does this buggy not have a rear bumper? It's confusing.
04-02-2022, 02:50 PM
#2397
Originally Posted by chevmaro
So, I'm building this 5.0 elite and working on bag G. Illustrations show a rear bumper, steps do not show a rear bumper and I don't see one in my kit. Does this buggy not have a rear bumper? It's confusing.
04-02-2022, 03:48 PM
#2398
Originally Posted by Matt M.
no rear bumper on the 5.0 elite..
I got me a 5.0 Elite yesterday and I got my son the DC Race Roller. I guess I could have just looked at his, lol.
04-07-2022, 10:27 AM
#2399
Hey guys, I have my kit finished and I am wiring electronics today. Should I put the ESC on the right side or left side? I weighed the car and left rear weighs more than right rear, but right front weighs more than left front. What's better for balance, or does it matter?
04-07-2022, 10:43 AM
#2400
I guess everyone’s will be different, but since my buggy still has a Spektrum S6240Rx in it, I just set up my Tekin RSX Pro so that the sensor wire connector lines up with the center line of the chassis, since I have the wire taped down the middle.
If your looking to counter balance, I suppose that the wires and your receiver can be manipulated, since I’m guessing the motor/fan placement is rather fixed. I simply prioritized having my sensor wire being straight, given that it was the only thing I had to install on the electronics plate.
If your looking to counter balance, I suppose that the wires and your receiver can be manipulated, since I’m guessing the motor/fan placement is rather fixed. I simply prioritized having my sensor wire being straight, given that it was the only thing I had to install on the electronics plate.
Last edited by TurnNBurn; 04-07-2022 at 01:44 PM.
