Team Associated B6.1 & B6.1D thread

    Hide Wikipost
Old 03-22-2018, 02:36 AM   -   Wikipost
R/C Tech Forums Thread Wiki: Team Associated B6.1 & B6.1D thread
Please read: This is a community-maintained wiki post containing the most important information from this thread. You may edit the Wiki once you have been a member for 90 days and have made 90 posts.

Last edit by: mes
Welcome to the B6.1 and B6.1D Wiki page.





Features:

Easy-access gear differential
Differential height adjustment with 0, 1, 2, and 3mm inserts included
New slipper assembly for better weight balance and shock clearance
3-gear Laydown Stealth(r) transmission for lower and forward CG
Heavy-duty V2 routed graphite front shock tower with tower guard
Heavy-duty V2 routed graphite rear tower, standard height
Heavy-duty V2 rear axle with 67mm bones
V2 springs for a more reactive and nimble feel
Innovative rear arm with molded inserts for ultra-fine lower shock mount adjustment
Molded spur gear guard to help protect body from damage
Front and rear anti-roll bars limit chassis roll for increased corner speed
Battery strap allows the use of optional turnbuckle-based braces
Machined pistons included for better fit and smoother operation
Aluminum rear clamping hex and front axle with laser etching
Rear hubs feature large bearings and the easy-insert system to adjust camber link position and rear axle height
One-piece shock bushing to make assembly easier
Aluminum C and D arm mounts included for large range of anti-squat and toe adjustment
Lightweight aluminum top shaft
Factory Team upgraded ball bearing kit included (now oiled instead of greased for less drag)
JConcepts(r) B6 clear body and wing included
Steel chassis weight
Shortened, 7075 aluminum chassis






Features:

Easy-access ball differential
Differential height adjustment with 0, 1, 2, and 3mm inserts included
New slipper assembly for better weight balance and shock clearance
3-gear Lay Back Stealth(r) transmission for lower and rearward CG
Heavy-duty V2 routed graphite front shock tower with tower guard
Heavy-duty V2 routed graphite rear tower, long
Heavy-duty V2 rear axle with 67mm bones
V2 springs for a more reactive and nimble feel
Innovative rear arm with molded inserts for ultra-fine lower shock mount adjustment
Molded spur gear guard to help protect body from damage
+1 steering block arms optimize feel on dirt tracks
Battery strap allows the use of optional turnbuckle-based braces
Machined pistons included for better fit and smoother operation
Aluminum rear clamping hex and front axle with laser etching
Rear hubs feature large bearings and the easy-insert system to adjust camber link position and rear axle height
One-piece shock bushing to make assembly easier
Aluminum C and D arm mounts included for large range of anti-squat and toe adjustment
Lightweight aluminum top shaft
Factory Team upgraded ball bearing kit included (now oiled instead of greased for less drag)
JConcepts(r) B6 clear body and wing included
Shortened, 7075 aluminum chassis


Setup Sheets and other documentation
Setup sheets for both cars:
Piston Drills:
Aftermarket Upgrades:

Parts List:

Print Wikipost

Reply

Old 02-10-2018, 08:47 AM
  #1
Tech Apprentice
Thread Starter

D1360's Avatar

Join Date: Nov 2017
Location: Stockholm
Posts: 85
Default delete

See Wiki for up to date car and aftermarket part information.

Last edited by b1narych0ice; 02-25-2018 at 09:55 PM. Reason: keeping thread for now
D1360 is offline
Reply With Quote
Old 02-10-2018, 09:28 AM
  #2
Tech Elite
iTrader: (13)

gticlay's Avatar

Join Date: Jan 2011
Posts: 2,052
Trader Rating: 13 (100%+)
Default

Originally Posted by D1360 View Post
Is there a releasedate yet? Can they be pre-ordered anywhere?
Yes, here's some info at least for Canadian hobby shops. https://shop.hi-performance.ca/index...ducts_id=51924
gticlay is offline
Reply With Quote
Old 02-10-2018, 09:28 AM
  #3
Tech Regular
iTrader: (1)

RazorRC's Avatar

Join Date: Oct 2017
Posts: 261
Trader Rating: 1 (100%+)
Default

Originally Posted by D1360 View Post
We need a thread for the new b6.1 and b6.1d.
Well done sir 👍
RazorRC is offline
Reply With Quote
Old 02-10-2018, 10:43 AM
  #4
Tech Apprentice

Join Date: Jan 2018
Posts: 90
Default

Am I the only one who immediately thought, Truck Parts!
sea1swk is offline
Reply With Quote
Old 02-10-2018, 10:43 AM
  #5
Tech Apprentice
Thread Starter

D1360's Avatar

Join Date: Nov 2017
Location: Stockholm
Posts: 85
Default

https://www.facebook.com/JConcepts.I...6217995118216/
Evoking1230 likes this.
D1360 is offline
Reply With Quote
Old 02-10-2018, 02:05 PM
  #6
Tech Apprentice
Thread Starter

D1360's Avatar

Join Date: Nov 2017
Location: Stockholm
Posts: 85
Default

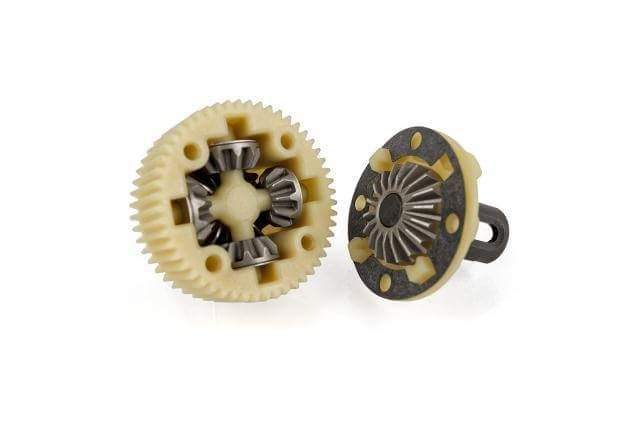

Is this the new diff?


Big_Show likes this.
D1360 is offline
Reply With Quote
Old 02-10-2018, 02:56 PM
  #7
Tech Master
iTrader: (35)

RCBuddha's Avatar

Join Date: Mar 2003
Location: SoCal
Posts: 1,958
Trader Rating: 35 (100%+)
Default

woot! good luck d1360 with first post duties!
RCBuddha is offline
Reply With Quote
Old 02-10-2018, 03:13 PM
  #8
Tech Champion
iTrader: (12)

Still Bill's Avatar

Join Date: Jan 2004
Location: Reno, NV
Posts: 7,286
Trader Rating: 12 (100%+)
Default

Originally Posted by D1360 View Post
Is there a releasedate yet? Can they be pre-ordered anywhere?
A-Main has them listed.
Still Bill is offline
Reply With Quote
Old 02-10-2018, 03:19 PM
  #9
Tech Champion
iTrader: (12)

Still Bill's Avatar

Join Date: Jan 2004
Location: Reno, NV
Posts: 7,286
Trader Rating: 12 (100%+)
Default

Originally Posted by D1360 View Post
Is this the new diff?


Yes.

Assume there is a new ball diff too.
Still Bill is offline
Reply With Quote
Old 02-10-2018, 04:15 PM
  #10
Tech Champion
iTrader: (12)

Still Bill's Avatar

Join Date: Jan 2004
Location: Reno, NV
Posts: 7,286
Trader Rating: 12 (100%+)
Default

Originally Posted by TC5Driven View Post
I agree. Why not just keep this with the B6 and B6D thread???
With so many component changes between the B6 and B6.1 chassis and the new V2 springs, the setup sheets will vary significantly between the two versions. So, I agree with the need for two separate strings.

Honestly, I would have called the new car a B7...which should have resulted in a new string anyway.
Still Bill is offline
Reply With Quote
Old 02-10-2018, 04:23 PM
  #11
Tech Regular
iTrader: (2)

Big_Show's Avatar

Join Date: Aug 2016
Location: Ohio
Posts: 262
Trader Rating: 2 (100%+)
Default

From what I am getting the diff will interchange. MIP just released their 6 series diff early December and discontinued the 5 series. I believe AE would of gave MIP a heads up, I mean VRP already has a shock tower prototype already, think they could of had it that fast without word from AE.
Big_Show is offline
Reply With Quote
Old 02-10-2018, 07:04 PM
  #12
Tech Regular
iTrader: (5)

olds45512's Avatar

Join Date: Jul 2008
Location: Indiana,PA
Posts: 463
Trader Rating: 5 (100%+)
Default

I have a 6.1d on order from my local supplier, can't wait to get my hands on it!
olds45512 is offline
Reply With Quote
Old 02-10-2018, 07:06 PM
  #13
Tech Regular
iTrader: (5)

olds45512's Avatar

Join Date: Jul 2008
Location: Indiana,PA
Posts: 463
Trader Rating: 5 (100%+)
Default

Originally Posted by Big_Show View Post
From what I am getting the diff will interchange. MIP just released their 6 series diff early December and discontinued the 5 series. I believe AE would of gave MIP a heads up, I mean VRP already has a shock tower prototype already, think they could of had it that fast without word from AE.
Why would AE tell anybody anything? Every part you buy from someone else is money your not spending with them so it's not in their best interest to help other manufacturers.
olds45512 is offline
Reply With Quote
Old 02-10-2018, 07:27 PM
  #14
Tech Regular
iTrader: (2)

Big_Show's Avatar

Join Date: Aug 2016
Location: Ohio
Posts: 262
Trader Rating: 2 (100%+)
Default

MIP and AE have a very long close relationship. I doubt either party wants to ruin that.
mdwaeracer and Latino277 like this.
Big_Show is offline
Reply With Quote
Old 02-10-2018, 08:11 PM
  #15
Tech Regular
iTrader: (1)

Join Date: Oct 2017
Posts: 433
Trader Rating: 1 (100%+)
Default

Originally Posted by olds45512 View Post
Why would AE tell anybody anything? Every part you buy from someone else is money your not spending with them so it's not in their best interest to help other manufacturers.
It's called a working relationship. AE can sell more cars if aftermarket companies make cool stuff people want to buy to go on said car. AE doesn't even make light weight driveshafts, a big portion of MIP's business. I want to say JC had bodies available right when the B6 dropped. Don't be surprised if JC had a new B6.1 body when it drops. Shoot, AE basically got the B44 from JConcepts. The industry is small, and AE recognizes the value in strong aftermarket support.
urnotevenwrg2 is offline
Reply With Quote
