Soze's GMADE GS02 BOM Build

Reply

Old 09-20-2018, 11:43 AM
  #1
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default Soze's GMADE GS02 BOM Build

So I'm joining the party of BOM build threads. Since the other threads show more of the custom mods, etc. I'll post more detailed step by steps for the stock build for those of you that want to see that, until I fully finish and then venture off into upgrading parts and modifying.

Here's what we're building.



Follow this build on YouTube - https://www.youtube.com/playlist?lis...EJELNBdAKseKe1

Kit:

GMADE GS02 BOM (available on eBay)

Parts:

Yeah Racing Aluminum 540 Motor Spacer Heatsink (available on eBay)
Boom Racing 25T Alloy Servo Horn
Team Associated #5422 30wt Oil (available on eBay)
X-Rings from Traxxas 2362 Rebuild Kit
GS02 Hardened universal shaft set (J30035) (ebay)
GA44 Heavy duty diff locker (GM30112) (ebay)
BOM exterior detail parts tree (Black) [GM60120] (ebay)
BOM mirror L/R [GM30128] (ebay)
BOM cage hinge (Titanium gray) [GM30137] (ebay)
Crawler Innovations 1.9 XL Deuces Wild Single Stage foams (available on eBay)
Pro-Line 1.9 Super Swamper TSL XL G8 Tires (available on eBay)
Injora 1.9 Beadlock Wheels (available on eBay)
Axial SCX10 Wheel Wells (AX31150) (ebay)
GS02 aluminum shock brace GM30130 (ebay) (currently unused)
GS02 stainless steel front under guard GM30150 (ebay)
GS02 cantilever sway bar GM30143 (ebay)
GMADE Aluminum 12mm Wheel Hub (4) (8mm Thick) GM30131 (ebay)
Gmade - Rear Link Kit, 324mm Wheelbase GM30133, for GS02 BOM (ebay) (currently unused)
Gmade - Rear Link Kit, 336mm Wheelbase GM30134, for GS02 BOM (ebay) (currently unused)
Gmade Cantilever Arm Set, for GS02 BOM (Titanium Gray) GMA30139 (ebay)
GMADE Komodo Roof Rack & Accessories (ebay) (currently unused)
SSD Pro SCX10 II Aluminum Knuckles SSD00144 (available on eBay)
SSD Brass Weights (Black version) SSD00140 (available on eBay)



Electronics:

Turnigy MG959 V2 Servo (available on eBay)
Yeah Racing Hackmoto 550 35T Brushed Motor (available on eBay)
FlySky R6B 2.4GHz 6-Channel Receiver (available on eBay)
FlySky GT-3C 2.4 GHz Radio (available on eBay)

Tools:

Versachem Brake Caliper Grease
Noleen SF3 Grease (available on eBay)
Turnigy Metric Torque Wrench Hex Driver Set
Tamiya Side Cutter
DEWALT DCF610S2R 12V MAX Cordless Lithium-Ion 1/4 in. Hex Chuck Screwdriver Kit
MIP Metric Speed Tip Set MIP9512
Bob Smith Industries Blue Thread Locker
ProTek RC Shock Pliers (available on eBay)
Molotow Liquid Chrome Marker Set - 1mm, 2mm and 4mm
Tamiya PS-63 Bright Gunmetal (ebay)
Duratrax Gunmetal (ebay)

Last edited by soze; 12-22-2018 at 03:39 PM.
soze is offline
Reply With Quote
Old 09-20-2018, 11:43 AM
  #2
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 1-13: Axles

Let's begin




Parts needed for this step






Metal balls given to the first batch of BOMs




The well labeled hardware bags. Wish they would've went a step further and grouped the hardware by steps as well.






Ready to begin




Diff gears finished




Pinion Gear side of the axle








The other side of the axle




All greased up




C-Hubs going on






Front CVDs






Knuckles






Link mounts






Time for the rear axle


















Front and rear axles all done

soze is offline
Reply With Quote
Old 09-20-2018, 11:44 AM
  #3
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 14-19 + 25: Transmission

We start with the B-bag.




Step 14 parts




Assembled gears




Parts for the next steps




Assembled and greased up




Spur gear goes on. They use stacked conical washers instead of a spring for the slipper. Directions say to fully tighten the lock nut, and then loosen by about a quarter turn. Here's how it looks.






Parts for the next step.. More e-clips yay...




Assembled gears...




Skipping to step 25 like new2rocks did.




Greased up. I wonder how the 2-speed option setup would look in this spot. That empty space has to be for something.




Transmission complete.



soze is offline
Reply With Quote
Old 09-21-2018, 12:03 AM
  #4
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 20-23: Links

This is going to be a pretty short step/post.


Bag of parts for these steps




Starting the front lower links






Front upper link






Rear lower links






Rear upper links



soze is offline
Reply With Quote
Old 09-24-2018, 12:00 AM
  #5
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 24 + 26-29: Chassis

Time to move onto the chassis. For this step, I also used the following non-kit items...

Turnigy MG959 V2 Servo (available on eBay)
Yeah Racing Hackmoto 550 35T Brushed Motor (available on eBay)
Yeah Racing Aluminum 540 Motor Spacer Heatsink (available on eBay)
Boom Racing 25T Alloy Servo Horn


These are the parts needed for the battery tray




I'll be using the Turnigy MG959 V2 Servo and a Boom Racing 25T Servo Horn








Servo mounted onto the battery tray/servo mount assembly






These are the parts needed to start putting the frame rails together




It's starting to look like a chassis!




That under-frame receiver box that everybody has been putting weights in... I might do the same.






Time to get those links on




Links mounted




Parts for mounting the motor




I'll be using a Yeah Racing Hackmoto 550 35T Brushed Motor




So... I ran into a snag with this motor. The motor shaft is longer than normal, and I couldn't put the transmission cover on without hitting the motor shaft. So I had to get Yeah Racing Aluminum 540 Motor Spacer Heatsink




With the spacer installed, I was now able to have the motor shaft clear.








One thing I am concerned about is the pinion/spur mesh. It's tighter than I would like, and since the motor mount uses pre-set mounting holes, there's really no fine adjustment available. I will revisit this area later after I complete my build to see if there is a way I can make the pinion/spur mesh more to my liking.
soze is offline
Reply With Quote
Old 10-09-2018, 03:25 PM
  #6
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 30-35: Shocks

This update is going to be relatively straightforward.

I also used the Traxxas X-Rings from the 2362 Rebuilt kit like OSRC did.

Parts:

Traxxas 2362 Rebuild Kit


Bag "E" of shock parts.




Those blue X-rings inside the Traxxas 2362 Rebuild kit.




Noleen SF3 Grease (available on eBay)




Team Associated #5422 30wt Oil (available on eBay)




ProTek RC Shock Pliers (available on eBay)




Duratrax Shock stand




Parts needed for Step 30




O-rings put around the shock caps




Parts needed for Step 31




Using the blue X-rings from Traxxas 2362 Rebuild Kit






Pistons on the shafts.




Time to put the front shocks together






Parts for Step 32




rear shock assembly getting there




Decided to put the rod-ends on early




Filling the shocks up with Team Associated #5422 30wt Oil (available on eBay)




Step 33 done






Parts for Step 34




Step 34 done




Parts for Step 35




Step 35 done




Shocks all done

soze is offline
Reply With Quote
Old 10-16-2018, 11:47 PM
  #7
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 36-48: Driveshafts, Suspension, Steering.

Covered a bit of ground in this update.


Getting on to the driveshafts. We'll need the F-Bag




Parts needed for lower front shaft




Lower front shaft attached to front axle






Parts needed for lower rear shaft




Lower rear shaft done




The upper half of the driveshafts






Parts for the cantilever suspension setup








Putting the cantilever setup together










Stock cantilever setup












Hooking up the upper shafts to the transmission












Front one going on...








Front shocks mounted








Time to get to the panhard rod.










Now for the steering rods












Was experiencing a bit of bump-steer with the combo of servo horn (Boom Racing low profile) and servo (Turnigy MG959 v2 30kg) that I was using, so I decided to add a 1mm spacer to correct that.





soze is offline
Reply With Quote
Old 10-17-2018, 07:16 PM
  #8
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 49-55: Electronics boxes, Sliders, Bumper, Body Posts

The BOM is really starting to come together now.

Non kit parts used in these steps:

1. FlySky FS-R6B Receiver
2. Hobbywing 1080 Esc (available on eBay)

My FlySky FS-R6B Receiver and where it's going...







Some parts for the wiring entrance of the receiver box.








This is where it goes on the truck






Going to be using a Hobbywing 1080 Esc (available on eBay)




Parts for the sliders




Mounted the box without the electronics for the time being.




Front bumper.






Body posts



soze is offline
Reply With Quote
Old 10-23-2018, 10:58 AM
  #9
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 56-58: Wheels and Tires


This is going to be a short step... not much to see here, and I'm just putting these together for the sake of the stock build documentation.


You're going to need these...




All mounted (little secret.. I haven't glued them yet)




Now you'll need these.




Ok.. this part done. See told you it was a short step.

soze is offline
Reply With Quote
Old 10-28-2018, 10:43 AM
  #10
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Step 59: Rear Cage

Here's one of the cooler parts of this truck. I really like this rear cage/hinge setup.


Here are the parts needed




Rear Cage put together




Fuel cell painted up and attached to the cage

soze is offline
Reply With Quote
Old 10-28-2018, 11:20 AM
  #11
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Steps 60-65: Body & Completion

It's taken be quite a bit of time, and I'm finally done with the "stock" build. I won't be stopping here though. I wanted to build this truck completely stock first just to get that out of the way, but now it's time to start modding and running.


Lexan cab ready for painting




Cab painted and decals applied. My Plasti-dipped fender flares need some work that I'll revisit later.








Here's the grille that I won't be permanently attaching, as I won't be using it.




These are the parts you will need for the front grille




This is how the front grille would look attached






Parts needed for Side mirrors and door handles




Mirrors and door handles attached




Rear cage attached






I love the rear cage hinge for this truck. Very convenient.

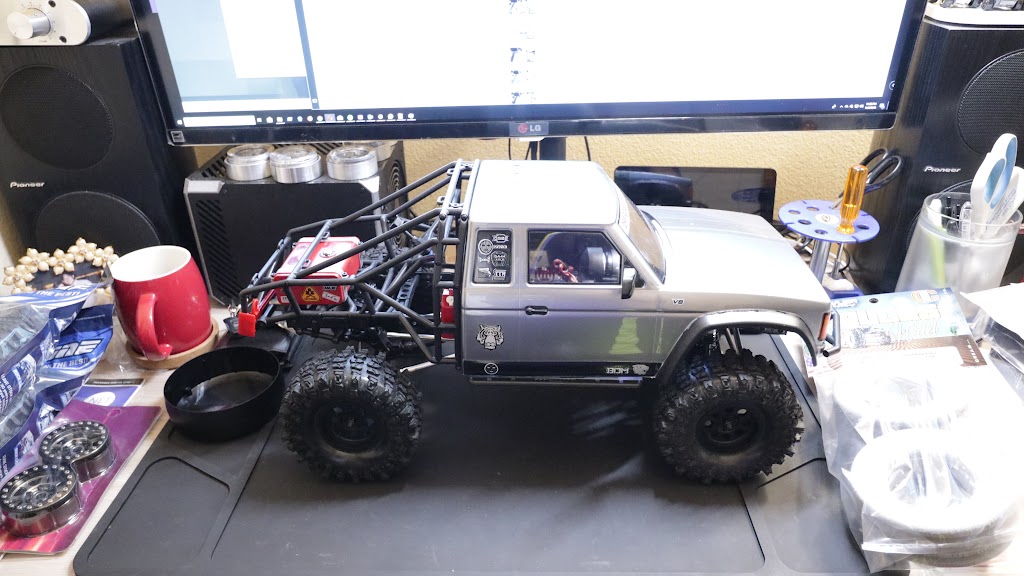

Stock build complete













soze is offline
Reply With Quote
Old 11-04-2018, 11:05 PM
  #12
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Moving on to option parts and upgrades.

First up.... Junfac Drive Shafts and Upgraded Diff Lockers.

GS02 Hardened universal shaft set (J30035) (ebay)
GA44 Heavy duty diff locker (GM30112) (ebay)


Here are the goods




Taking care of the drive shaft first.




Drive shafts added.




Stock diff locker about to come out




What's about to go into the axles




The indentation to properly assemble the diff locker




Upgraded diff locker assembled




Upgraded diff locker in the axle




Repeated the same process for the other axle.

Last edited by soze; 11-04-2018 at 11:47 PM.
soze is offline
Reply With Quote
Old 11-04-2018, 11:39 PM
  #13
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Some cosmetic updates for the BOM.

BOM exterior detail parts tree (Black) [GM60120] (ebay)
BOM mirror L/R [GM30128] (ebay)
BOM cage hinge (Titanium gray) [GM30137] (ebay)
Molotow Liquid Chrome Marker Set - 1mm, 2mm and 4mm


The parts I'll be adding






Never really liked chrome. Just not a fan of it.




Door handles and side mirrors added






Used Molotow liquid chrome markers to properly chrome out the light buckets



[/url]


Prepping for mounting




Here's how they look mounted






Time to put on the hinge parts








So the hinge parts for the most part is just a preference, and not really an upgrade. The stock plastic ones for all intents and purposes work just fine.

The difference is that the option hinge lets you bolt down the hinge so that it stays on the chassis when lifted.

On the other hand.. the stock plastic one allows you to easily completely remove the body from the chassis by just sliding it out of the notch, whereas the metal option hinge would require you to unscrew it from the chassis.

It's really a preference, and I opted for the mounted to chassis option.
soze is offline
Reply With Quote
Old 11-08-2018, 10:37 AM
  #14
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Upgraded the wheels and tires for the BOM.

Crawler Innovations 1.9 XL Deuces Wild Single Stage foams (available on eBay)
Pro-Line 1.9 Super Swamper TSL XL G8 Tires (available on eBay)
Injora 1.9 Beadlock Wheels (available on eBay)

Testing some image hosting out, so let me know if the pictures don't work.

This is the BOM on stock tire/wheel setup.




The Injora wheels




Crawler Innovations 1.9 XL Deuces Wild foams




Pro-Line Super Swamper TSL XL 1.9 G8 Tires




These are a perfect match




All foams inserted, ready for wheels






All the wheels & tires mounted together






How it sits now.

soze is offline
Reply With Quote
Old 12-22-2018, 03:42 PM
  #15
Tech Regular
Thread Starter
iTrader: (1)

Join Date: Oct 2015
Location: Orange County, CA
Posts: 406
Trader Rating: 1 (100%+)
Default

Some belated updates.


Axial SCX10 Wheel Wells (AX31150) (ebay)













soze is offline
Reply With Quote

Thread Tools
Search this Thread
Rate This Thread
Rate This Thread:
You have already rated this thread Rating: Thread Rating: 0 votes,  average.

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
