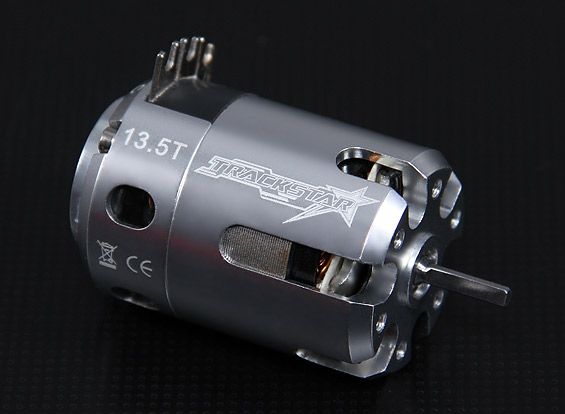

Default Turnigy TrackStar Motors

So, I stumbled upon these motors and after trying them out this weekend I can tell you that they are pretty damn fast. I was running a 17.5 on a good sized outdoor track and found them very competitive vs. motors three times the cost. It is faster then the Revtech I replaced it with and ran about 10-20 degrees cooler as well.

I was running a 3.8 FDR and had the timing up to 2 lines from full.



Here is a link to the seller...they have all kinds of turns in stock and most of them are $32 dollars
http://www.hobbyking.com/hobbyking/s...wer_Search.asp

Motor is built very well, the finish is very nice, the performance is really good and the price is perfect. I have no affiliation to Hobbyking or Turigy, but I figured others would like to know about real world results.
__________________
Sanwa | R1 Wurks | Avid | 2mm Designs
artwork is offline   Reply With Quote
Old 07-15-2012, 05:15 PM   #2
Tech Adept

MikeO's Avatar

Join Date: Apr 2012
Location: Whisky isn't a tire sauce?
Posts: 202
Default

Interesting, going to have to order some for the 2wds. Did you find any stator/rotor options?
__________________
Poorboy Raceway & Hobbies - Mo Speed!
MikeO is offline   Reply With Quote
Old 07-15-2012, 05:30 PM   #3
Tech Champion

nexxus's Avatar
R/C Tech Elite Subscriber

Join Date: Dec 2005
Location: Perth, Australia
Posts: 7,991
Trader Rating: 300 (100%+)
Default

Good to know, I am testing one in my VTA car (we run 17.5 for VTA as it's a huge track) going from an LRP X12, already noticed that on the MT4 telem, I got 19500 rpm max on the lrp and the Trackstar is up above 20000 rpm.

Have the older Trackstar 17.5 (red can) in my son's Mini Summit and it's been good, runs very cool and very smooth.
__________________
A800 / A800X Awesomatix

Fry crack corn and I don't care,
Leela crack corn, I still don't care,
Bender crack corn and he is great!
Take that you stupid corn!

nexxus is offline   Reply With Quote
Old 07-15-2012, 06:03 PM   #4
Tech Master

Mr RCTech's Avatar

Join Date: Dec 2005
Posts: 1,291
Trader Rating: 2 (100%+)
Default

.......

Last edited by Mr RCTech; 07-15-2012 at 06:22 PM.
Mr RCTech is offline   Reply With Quote
Old 07-15-2012, 06:18 PM   #5
Tech Master

Join Date: Jul 2011
Location: Austin, TX
Posts: 1,117
Trader Rating: 13 (100%+)
Default

Same motor as the LRP?? Really?

It looks a hell of a lot like the Reedy.....
JamesL_71 is offline   Reply With Quote
Old 07-15-2012, 06:21 PM   #6
Tech Master

Mr RCTech's Avatar

Join Date: Dec 2005
Posts: 1,291
Trader Rating: 2 (100%+)
Default

Quote:
Originally Posted by JamesL_71 View Post
Same motor as the LRP?? Really?

It looks a hell of a lot like the Reedy.....

Sorry meant Reedy motor..
Mr RCTech is offline   Reply With Quote
Old 07-15-2012, 06:33 PM   #7
Tech Master

Join Date: Jul 2011
Location: Austin, TX
Posts: 1,117
Trader Rating: 13 (100%+)
Default

Got it... makes sense.

A Reedy for $30... not bad.
JamesL_71 is offline   Reply With Quote
Old 07-15-2012, 06:49 PM   #8
Tech Elite

artwork's Avatar

Join Date: Sep 2004
Location: Thornton, CO
Posts: 3,086
Trader Rating: 59 (100%+)
Default

After seeing the new Hacker Skalar Motor and the Turnigy TrackStrar I am pretty sure they are very very close to the same design. Not sure who is making them, but clearly someone in China...
__________________
Sanwa | R1 Wurks | Avid | 2mm Designs
artwork is offline   Reply With Quote
Old 07-15-2012, 07:26 PM   #9
Tech Champion

hanulec's Avatar
R/C Tech Elite Subscriber

Join Date: Sep 2007
Location: @ the post office
Posts: 8,418
Trader Rating: 27 (100%+)
Default

But I don't think this roar legal, right? I'm liking the hacker motor so far.
__________________
FJ / ROAR #2-122945 / MaxRotation FPV Drone Racing / Shop@ Awesomatix USA / Wild Turbo Fan / Mon-Tech Racing / RocheRC USA / Side Piece /
LRP / John's BSR Tires / TeamEAM / TQ Wire / R1 / Team Scream / PCR / MIX
RacerLog wiki Awesomatix A700 / 2wd offroad 4 life
hanulec is offline   Reply With Quote
Old 10-10-2012, 03:42 AM   #10
Tech Addict

tobyzhang's Avatar

Join Date: Jun 2011
Location: chino hills/Irvine
Posts: 548
Trader Rating: 13 (100%+)
Default

I just got one and it is basically a reedy sonic with 40 degree max timing(I measured everything against my sonic). Feels almost exactly the same. But, Reedy starts to wake up at 41 degree timing so trackstar can't really unleash all of it's own potential. But if you have a sonic laying around, running a reedy end bell is a simple fix to the timing limit problem. All the internals are the same except for shims.
tobyzhang is offline   Reply With Quote
Old 10-10-2012, 04:45 AM   #11
Tech Elite

ta04evah's Avatar

Join Date: Oct 2010
Location: Sydney, Australia
Posts: 2,612
Trader Rating: 2 (100%+)
Default

This motor also caught my eye when I stumbled across it on the Hobbyking site.

I couldn't believe the price, $40 delivered to your door for a brushless motor with end bell timing and a reported performance equal if not more compared to some that are 3 times the price.

Sadly as mentioned they are not ROAR approved, which is a damn shame as they would be an ideal spec class motor at a club racing level.
Even the Hobbywing xerun & Speed Passion Ultra Sportsman motors are going to set you back $60-$65 if you want a cheap roar approved motor, and they both do not have end bell timing.

Still tempted to grab one just to see what they are like first hand for quality & performance.

Cheers
Rob.
__________________
Castle Hill RC On Road Facebook https://www.facebook.com/groups/121817254587521/
FatBear RC Videos https://www.youtube.com/channel/UCjiAhwa-rk5Vas2rv5IBD4A
ta04evah is offline   Reply With Quote
Old 10-10-2012, 05:17 AM   #12
Tech Addict

Geberit's Avatar

Join Date: May 2009
Posts: 746
Default

Had a Reedy Sonic 5.0T where the stator was dead. Replaced it with a 4.5T stator from TrackStar and works as the original Reedy motor!

I't a shame Reedy doesn't sell all replacement parts separately as Thunder Power does!

I was a Reedy fan but because of their marketing strategy I switched to TP
Geberit is offline   Reply With Quote
Old 10-10-2012, 05:23 AM   #13
Tech Elite

Pro10noob's Avatar

Join Date: Apr 2009
Location: The Netherlands
Posts: 2,104
Trader Rating: 13 (100%+)
Default

Have 2 of them 10.5.
Running them in Pro10 cars both 200 and 235MM cars on small and big tracks.
Running smooth,fast and even with a lot of timing and boost/turbo still stay cool.
On me home track(that is relative small) i have run it with a Tekin in front of it with 80 timing and 50 boost(no turbo because of short track) and it did run perfectly with the stock 10 degrees timing.
Temps where about 45 degrees celcius after 7 minutes racing
Did run it last national championship in the 235 car with the Hobbywing V2.1 esc in front of it and it did right what i expected of it.
Enough speed(for me that is), good power and it kept cool,again in the 40 degrees range.
Going to run it next year on the bigger tracks with both ESC and with turbo on it to see how it runs there.

regards Roy
__________________
l===/o\===l
[_]-###-[_] V-link proto type Pro10,JKMR P235-SE Pro10
P235-VL Pro10 comming soon
Sponsered by me,myself and i :)
Pro10noob is offline   Reply With Quote
Old 10-10-2012, 07:25 AM   #14
Tech Fanatic

Join Date: Jul 2010
Location: Antwerp, Belgium
Posts: 869
Default

I have one of these trackstar turnigy motors aswell, i have it for allmost 3 months but so far i haven't been able to tested it yet.
But after reading all these positive comments i need to test it
addicted2blue is offline   Reply With Quote
Old 10-10-2012, 02:45 PM   #15
Tech Addict

tobyzhang's Avatar

Join Date: Jun 2011
Location: chino hills/Irvine
Posts: 548
Trader Rating: 13 (100%+)
Default

The motor does run cool, max timing with 3.57 FDR on a tc at a mixed technical track with 73f ambi doesn't take the motor above 130F even taking temp next to the motor opening and where the wires are. throttle feel is the same as reedy as well. Need to gear up! I don't even have the pinion to do that since I've never had the need to go that low on gearing.. The rotor is black coated, but it is neodymium. Same 12.5mm as Reedy Stock except the shaft is missing 2 chamfer at the ends.
tobyzhang is offline   Reply With Quote
