Old 05-10-2014, 07:53 AM   #496
Tech Master

DS Motorsport's Avatar

Join Date: Aug 2005
Location: The Netherlands
Posts: 1,437
Trader Rating: 2 (100%+)
Default

Quote:
Originally Posted by Brian Bosley View Post
Is it a euro thing that everyone seems to run the wide low bumper and carbon upper and we seem to run foam?
In Europe almost all the tracks have grass runoff area's, so no boards to crash into.
The wide low bumper gives a bit more steering at high speeds, and imo it looks better. The lightweight foam bumper looks good to though.
Mounting the front bodyposts directly to to upper carbon plate gives the car a slightly sharper response, because front end downforce is transferred directly to the bulkheads.

Quote:
Originally Posted by John.C View Post
My flywheel broke and I'll need another. I'm wondering if the Xray NT1 flywheel is a suitable replacement. See details.

Don't know whether this would work, but why change to an inferior part?.

Has anyone tried using an Xray NT1 flywheel? Will I need to get the Xray shoes?
Quote:
Originally Posted by speed6 View Post
Bumb
I would recommend the Mugen tool, with this one you can screw the pins out.
With the Hudy you have to use a hammer which is less precise.
Pins can be bought from Capricorn, Team Titan or Hudy, all having about the same quality.
__________________
P1-RC.com
DS Motorsport is offline   Reply With Quote
Old 05-11-2014, 05:32 AM   #497
Tech Master

John.C's Avatar

Join Date: Aug 2009
Location: The Track
Posts: 1,290
Trader Rating: 36 (100%+)
Default

Quote:
Originally Posted by DS Motorsport View Post
Don't know whether this would work, but why change to an inferior part?.
It really came down to timing of the incident. The part broke on Friday and there was no chance of me receiving the Capricorn part in time from our online reseller. I had hoped that this Xray part might be available at a LHS in my area but I ended up borrowing my buddy's Cap flywheel. I just hope Capricorn USA sells/stocks a black (or non red) flywheel.
__________________
- Middle River Hobbies - The Track -
John.C is offline   Reply With Quote
Old 05-11-2014, 10:04 AM   #498
Tech Master

el salvador's Avatar

Join Date: May 2006
Location: Western Seattle Bucko!
Posts: 1,067
Trader Rating: 7 (100%+)
Default

Quote:
Originally Posted by John.C View Post
It really came down to timing of the incident. The part broke on Friday and there was no chance of me receiving the Capricorn part in time from our online reseller. I had hoped that this Xray part might be available at a LHS in my area but I ended up borrowing my buddy's Cap flywheel. I just hope Capricorn USA sells/stocks a black (or non red) flywheel.
What exactly is wrong with your Capricorn Flywheel ? If One of the flyweight pins was broken, these can be replaced. I had this happen a couple years ago and, at the time, I cut down to length the shaft from a 2 mm drill bit to fit. The roll pins used, I believe are 12 X 2 mm and are available from Capricorn and probably other MFG's as well.

I've since then obtained the correct replacement pins from Capricorn but am too lazy to replace the modified pin I made, it still remains in the flywheel. HTH
__________________
ARC R8 X2/ Max RP9 or O.S. R2101 ,Capricorn LAB C02-TOP Elite R, ARC R11....

"Every Cemetery in Chicago Votes Democrat!"
el salvador is offline   Reply With Quote
Old 05-11-2014, 11:08 AM   #499
Tech Master

John.C's Avatar

Join Date: Aug 2009
Location: The Track
Posts: 1,290
Trader Rating: 36 (100%+)
Default

Lab C-02-image.jpg
__________________
- Middle River Hobbies - The Track -
John.C is offline   Reply With Quote
Old 05-11-2014, 11:46 AM   #500
Tech Master

el salvador's Avatar

Join Date: May 2006
Location: Western Seattle Bucko!
Posts: 1,067
Trader Rating: 7 (100%+)
Default

Wow! looks like whatever "Road Hazard" that didn't digest well, made it past the "Corinthian Leather" Mud Flaps. My condolences and "Never Mind".
__________________
ARC R8 X2/ Max RP9 or O.S. R2101 ,Capricorn LAB C02-TOP Elite R, ARC R11....

"Every Cemetery in Chicago Votes Democrat!"
el salvador is offline   Reply With Quote
Old 05-11-2014, 07:33 PM   #501
Tech Master

gsxr0311's Avatar

Join Date: Sep 2009
Location: San Francisco CA
Posts: 1,205
Trader Rating: 18 (100%+)
Default

Quote:
Originally Posted by John.C View Post
Ouch!
__________________
Special Thanks to: RC Target, Ko Propo USA, O'Donnell glow plugs, A Main Hobbies-SWORKz USA, R1 Wurks, and Absolute Hobbies.

Capricorn: LAB-C802, LAB E801, LAB-C03, TE03, and P01 235mm. SWORKz: S350BK1 EVO II, S104EVO, S12-1M. Top Rebel 12.
gsxr0311 is offline   Reply With Quote
Old 05-11-2014, 10:35 PM   #502
Tech Apprentice

H4gI's Avatar

Join Date: Jan 2007
Location: Switzerland
Posts: 83
Default

Quote:
Originally Posted by Brian Bosley View Post
Is it a euro thing that everyone seems to run the wide low bumper and carbon upper and we seem to run foam?
You got more steering without the foam, because of less weight on the front.

With the controlled 37/40 tyres at the races you need all the steering you can get...

cheers
__________________
Team NFC
LRP
CAP
Nitro-mechanic-bitch of E.D. and R.V.
H4gI is offline   Reply With Quote
Old 05-12-2014, 01:16 PM   #503
Tech Elite

Michael_T's Avatar

Join Date: Oct 2001
Location: Sydney, Australia
Posts: 4,037
Trader Rating: 47 (100%+)
Send a message via MSN to Michael_T
Default

Quote:
Originally Posted by H4gI View Post
You got more steering without the foam, because of less weight on the front.

With the controlled 37/40 tyres at the races you need all the steering you can get...

cheers
The wide bumper is about 20 grams heavier than the small bumper + foam.
Michael_T is offline   Reply With Quote
Old 05-13-2014, 08:08 AM   #504
Tech Fanatic

Join Date: Sep 2006
Location: Salem
Posts: 999
Trader Rating: 17 (100%+)
Default

who is the US distributor? Looking to get some parts..

Thanks
__________________
T.O.P Racing USA

"This T-bird will put a spell on you"
Mr.A Morris is offline   Reply With Quote
Old 05-13-2014, 08:13 AM   #505
Tech Elite

dj apolaro's Avatar

Join Date: May 2005
Location: Miami, Fl.
Posts: 2,372
Default

The US guys are CapAmerica RC.

www.capamericarc.com


DJ Apolaro
__________________
Capricorn RC, Capricorn Tires, Novarossi World, Spektrum, Horizon Hobby, PROTOform, RCTarget, IGT8.
dj apolaro is offline   Reply With Quote
Old 05-15-2014, 02:30 AM   #506
Tech Apprentice

H4gI's Avatar

Join Date: Jan 2007
Location: Switzerland
Posts: 83
Default

Quote:
Originally Posted by Michael_T View Post
The wide bumper is about 20 grams heavier than the small bumper + foam.
I dont knwo which wide bumper you use... but with ours its less heavier + cut out the wide one... something about a bit of common sense ......

We tested both and I think eric isn't the slowest driver....
__________________
Team NFC
LRP
CAP
Nitro-mechanic-bitch of E.D. and R.V.
H4gI is offline   Reply With Quote
Old 05-15-2014, 03:51 AM   #507
Tech Elite

Michael_T's Avatar

Join Date: Oct 2001
Location: Sydney, Australia
Posts: 4,037
Trader Rating: 47 (100%+)
Send a message via MSN to Michael_T
Default

Quote:
Originally Posted by H4gI View Post
I dont knwo which wide bumper you use... but with ours its less heavier + cut out the wide one... something about a bit of common sense ......

We tested both and I think eric isn't the slowest driver....
Xray bottom stock bumper - 9.0g

Xray wide bumper - 23.7g

Xray foam - 4.0g

Sorry, 10.7g difference.
Michael_T is offline   Reply With Quote
Old 05-15-2014, 03:25 PM   #508
Tech Master

DS Motorsport's Avatar

Join Date: Aug 2005
Location: The Netherlands
Posts: 1,437
Trader Rating: 2 (100%+)
Default

Just weighed the different options:

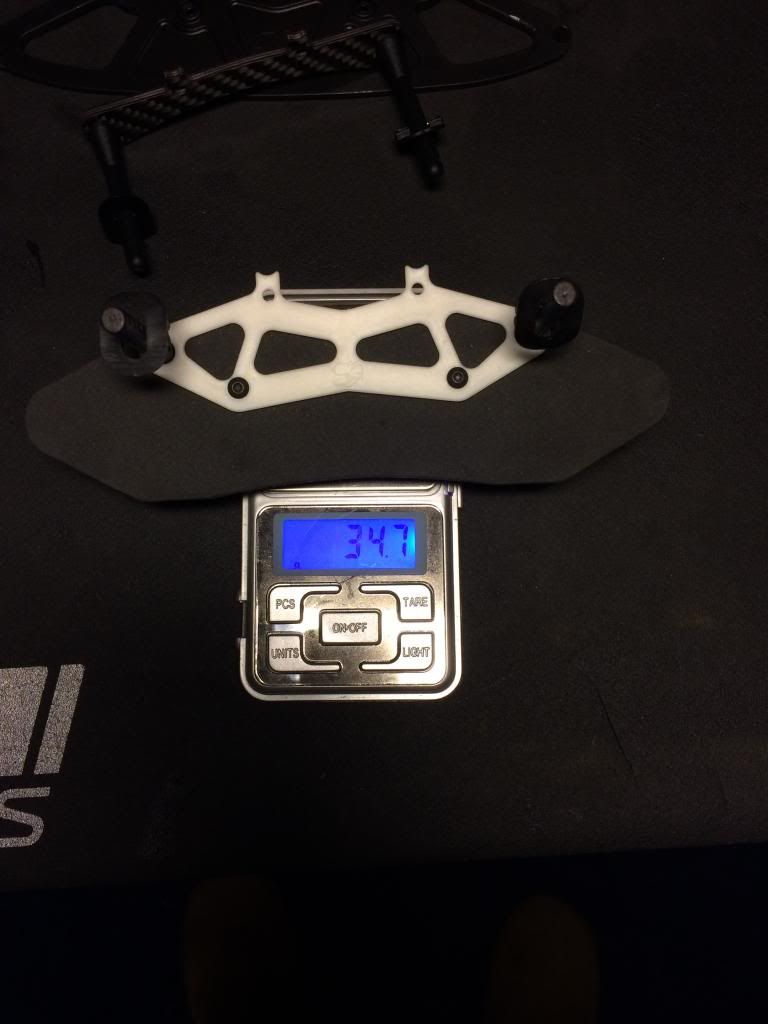

Standard bumper setup

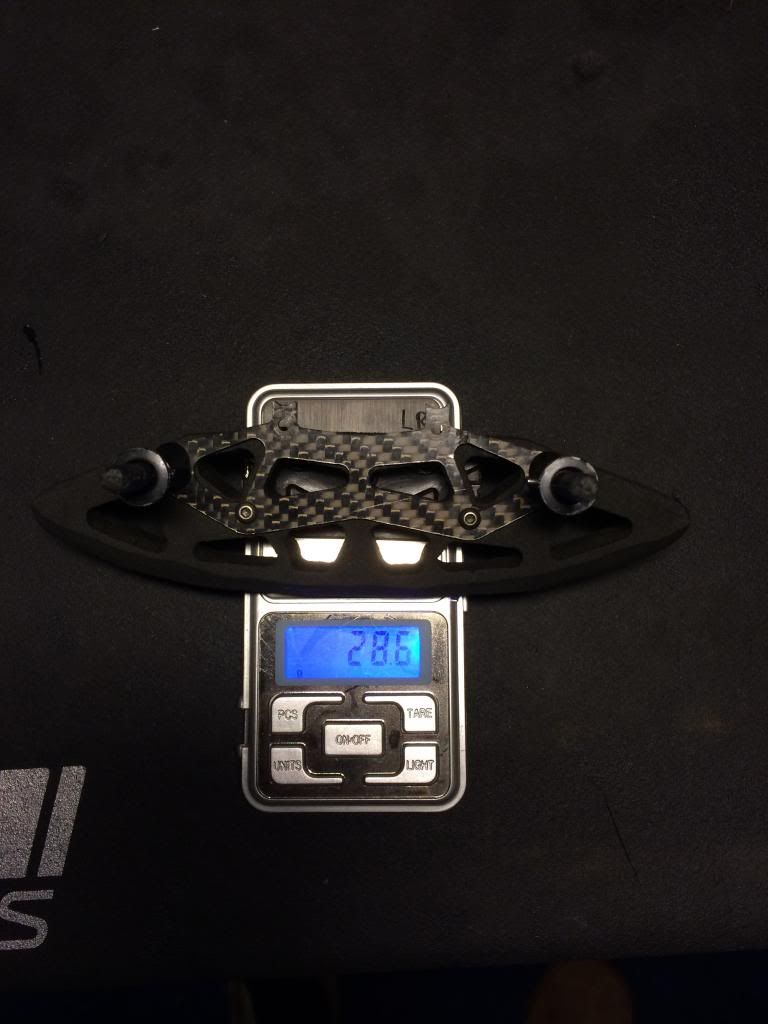

Lightweight foam with carbon upper plate and cut lower support



Xray wide bumper with cutouts and my own bodypost plate.
This is lighter compared to using the stock upper plate and bodyposts

So the standard bumper setup and the xray wide bumper are pretty close in terms of weight. The upper plate I use removes a couple of grams which makes the Xray wide bumper setup a bit lighter compared to the stock setup

The lightweight foam bumper setup is clearly the lightest option.
__________________
P1-RC.com
DS Motorsport is offline   Reply With Quote
Old 05-15-2014, 03:32 PM   #509
Tech Elite

Join Date: Aug 2004
Location: Pole Position
Posts: 3,155
Trader Rating: 12 (93%+)
Default

DS why the cutouts in the lower bumper?
__________________
Serpent 748 TQ | GIMAR Engines
Walter RC HObby | www.walterrchobby.com.au
BlueRC | www.bluerc.net
mrgsr is offline   Reply With Quote
Old 05-17-2014, 07:24 AM   #510
Tech Master

DS Motorsport's Avatar

Join Date: Aug 2005
Location: The Netherlands
Posts: 1,437
Trader Rating: 2 (100%+)
Default

From what I've tested it smoothens out the initial steering response, it makes the steering more linear.
__________________
P1-RC.com
DS Motorsport is offline   Reply With Quote
