R/C Tech Forums

Go Back   R/C Tech Forums > General Forums > Electric On-Road

Reply

Thread Tools Search this Thread
Old 04-19-2015, 09:16 AM   #1
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default Serpent f180 electric 4wd (FORMULA E 1/8)

Hello everyone ,
I ll start this topic and show a lot and different mods on serpent f 180 ,some of them step by step .
As you know this is a very rare limited production car from serpent so all the mods will be very carefully machined for top results .
The concept is to convert this amazing car to a unic electric and very fast formula car in track .
An electric conversion has already machined and tested as a 2wd but this think needs more traction as an electric car ..... so 4wd conversion will be soon ready


Stay tuned....

__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 04-20-2015, 10:16 PM   #2
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

So lets start the conversion ...
I ll first show the bl conversion as a 2wd ...as i said the 4wd conversion is on build.

We want to keep the front mechanical brakes (you maybe already know that there is a conversion kit from speed passion but the installation of this kit not aloud the braking servo) we also want to make a motor mount for 1/8 size motors and not for 550 size.

First i ll take off the center aluminum bracket and mill it ...



And this is how it will look like


In this bracket will "rest" the backside of the motor to prevent any flex .

__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 04-20-2015, 10:52 PM   #3
Tech Regular

Join Date: Jan 2012
Location: Dublin CA
Posts: 264
Trader Rating: 9 (100%+)
Default

This is awesome adventure! Can't wait to see the next phase.
I appreciate your commitment to share with us.
__________________
VBC f1 / MST 01 d pro /
I love this hobby!!
aackjw is offline   Reply With Quote
Old 04-22-2015, 01:34 PM   #4
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

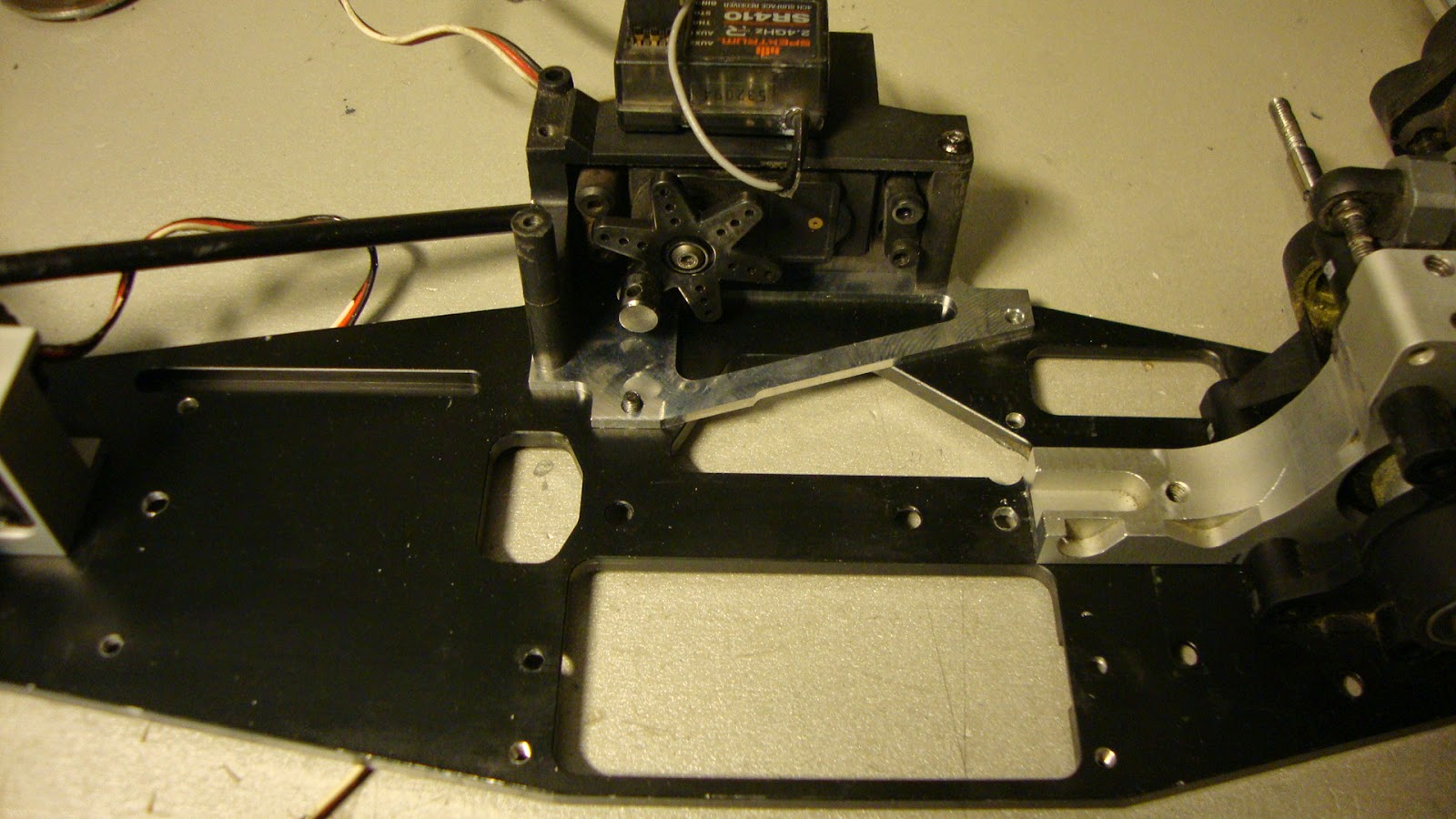

So ,these are all the nessesary parts for the conversion ...



Exept for the moded center aluminum bracket i will make some new holes in the chassis to install the parts .
__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 04-23-2015, 12:02 AM   #5
Tech Elite

dan_vector's Avatar

Join Date: Oct 2013
Posts: 3,594
Trader Rating: 25 (100%+)
Default

Fantastic! I finally got my new in box F180 nitro with the original .28 Mega engine etc. I've recently built it and gotta say it is a beautiful model. Unfortunately mine will stay as a shelf queen in a glass cabinet as I just can't bring myself to run such a thing of beauty. Mainly as there are no spares anymore. I will look for another chassis from eBay to use as a runner and your conversion would be awesome. We may have to talk dollars
__________________
Serpent Viper 977e EVO2, Serpent 977 EVO2 GP, Serpent Project 4x, Serpent 811T-TE Truggy, Serpent 811e 2.1, Serpent SRX2-MH, Serpent SRX-2 RM, Serpent SRX-4, Serpent F110-SF2, Serpent F180, Serpent 748 Natrix WC, Serpent Cobra GT 3.0, Serpent SRX8, Serpent S811 2.2, Baja 5B Flux, Atomic AMZ 1/27th, Schumacher GT12 SS.
Sanwa, Ielasi Tuned Novarossi Racing Engines, Tekin, Hobbywing, Muchmore.
dan_vector is offline   Reply With Quote
Old 04-29-2015, 03:42 PM   #6
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

Quote:
Originally Posted by dan_vector View Post
Fantastic! I finally got my new in box F180 nitro with the original .28 Mega engine etc. I've recently built it and gotta say it is a beautiful model. Unfortunately mine will stay as a shelf queen in a glass cabinet as I just can't bring myself to run such a thing of beauty. Mainly as there are no spares anymore. I will look for another chassis from eBay to use as a runner and your conversion would be awesome. We may have to talk dollars

Welcome to the f180 club and thank you very much!!
A second chassis is recomended as a runner!! I already have 3 of them
__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 04-29-2015, 03:53 PM   #7
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

So ,lets start building ....

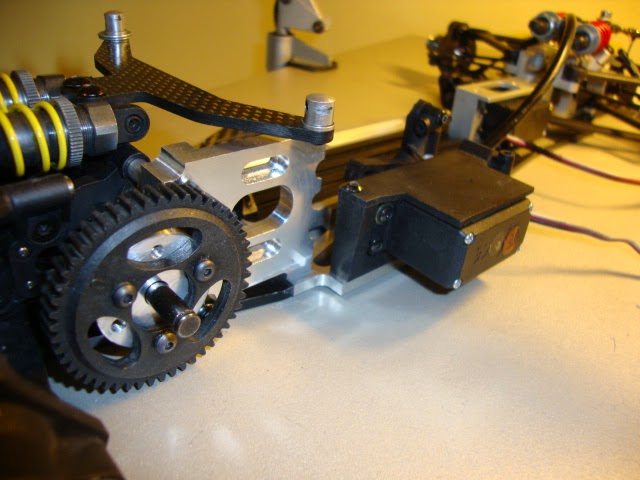

The aluminum servo platte will move the plastic servo mount 15mm to the rear and 10mm to the side of the chassis so to have more space for the battery and motor.




Motor mount made of 7075 t6 aluminum













...and with battery tray installed...







__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 04-30-2015, 07:20 AM   #8
Tech Elite

dan_vector's Avatar

Join Date: Oct 2013
Posts: 3,594
Trader Rating: 25 (100%+)
Default

Sweet!!
__________________
Serpent Viper 977e EVO2, Serpent 977 EVO2 GP, Serpent Project 4x, Serpent 811T-TE Truggy, Serpent 811e 2.1, Serpent SRX2-MH, Serpent SRX-2 RM, Serpent SRX-4, Serpent F110-SF2, Serpent F180, Serpent 748 Natrix WC, Serpent Cobra GT 3.0, Serpent SRX8, Serpent S811 2.2, Baja 5B Flux, Atomic AMZ 1/27th, Schumacher GT12 SS.
Sanwa, Ielasi Tuned Novarossi Racing Engines, Tekin, Hobbywing, Muchmore.
dan_vector is offline   Reply With Quote
Old 05-03-2015, 10:20 PM   #9
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

Single speed conversion....





milled with two different bolt patterns ...


one spur gear adapter ,two different brand spur gears...

for traxxas spur gears...






and for the original f 180 gears...





__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 05-08-2015, 08:10 AM   #10
Tech Adept

DarkSides's Avatar

Join Date: Sep 2011
Location: NY
Posts: 142
Trader Rating: 6 (100%+)
Default

Like the beefy parts. Watching
DarkSides is offline   Reply With Quote
Old 05-08-2015, 05:31 PM   #11
Tech Fanatic

Evo 13's Avatar

Join Date: Apr 2013
Location: San Diego CA
Posts: 833
Trader Rating: 2 (100%+)
Default

Hey Koval,

This should be an interesting journey to watch. I'll be sure to tune in daily with my tea and crackers to observe the progress.

Hey Dan V,

You have one of these "new" in a glass case? Thats incredible man! Please, post a pic!
__________________
Serpent Cobra GTE
2 x Serpent 747e
Xray X1
Mugen MBX7T ECO (Truggy)
SMC, Max Amps, LRP, Poseidon Motors, Cordova Research Motors, Xceed.
Evo 13 is offline   Reply With Quote
Old 05-16-2015, 08:19 AM   #12
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

Thanks guys ,
apriciate your good comments , i ll keep posting to this thread .
4wd process is the next step !
__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 05-23-2015, 04:06 PM   #13
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

Comming soon.....

__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 05-30-2015, 11:13 PM   #14
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

Everything is ready for the 4wd conversion
We deside a front spool set up for the prototype car , a overdrive ratio with one way front diff is possible but first we must build the car and test it .
__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Old 05-30-2015, 11:35 PM   #15
Tech Adept

koval's Avatar

Join Date: Jul 2009
Location: greece
Posts: 179
Default

Necessary belts and pulleys




Some fitment test after milling the center front aluminum bracket





Front center pulley after some weight reduction



Front spool with spacers ,bearings,drive cups ready to install



Inside the red dotted line You can see the belt tensioner for the front drive belt

__________________
http://brushlessmaniac.blogspot.gr/
koval is offline   Reply With Quote
Reply



Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are Off



All times are GMT -7. It is currently 10:55 AM.


Powered By: vBulletin v3.9.2.1
Privacy Policy | Terms of Use | Advertise Content © 2001-2011 RCTech.net
