Xray t4'15

Old 10-16-2014, 06:31 PM
  #466
Tech Elite
iTrader: (70)

Join Date: Dec 2004
Location: Marietta, Ga
Posts: 2,531
Trader Rating: 70 (100%+)
Default

Thats pretty odd then. Perhaps a manufacturing defect in one of the parts. It will work fine either way. I run leespeed gears which are not offset and they work great. As long as its not hitting/binding there shouldn't be an issue.
PROMODVETTE is offline
Old 10-17-2014, 04:33 AM
  #467
Tech Addict

pphaneuf's Avatar

Join Date: Sep 2014
Location: London, United Kingdom
Posts: 509
Default

Originally Posted by PROMODVETTE
Thats pretty odd then. Perhaps a manufacturing defect in one of the parts. It will work fine either way. I run leespeed gears which are not offset and they work great. As long as its not hitting/binding there shouldn't be an issue.
I'll definitely make sure the whole things runs freely, of course, thanks!
pphaneuf is offline
Old 10-17-2014, 12:00 PM
  #468
Tech Adept

Join Date: Mar 2013
Location: France
Posts: 123
Default

I'm running it wrongly according to the manual, but according to the pics on Alex's FB, it's fine that way. Just flipped around.
Awesoman is offline
Old 10-17-2014, 02:17 PM
  #469
Tech Addict

pphaneuf's Avatar

Join Date: Sep 2014
Location: London, United Kingdom
Posts: 509
Default

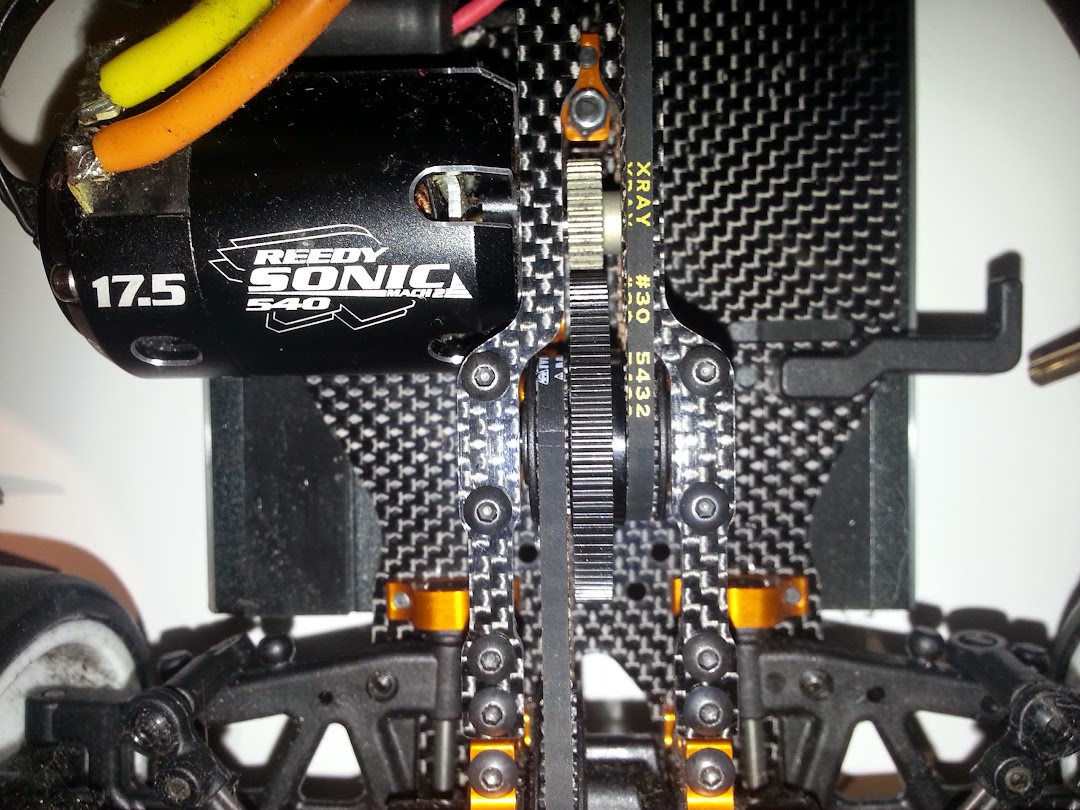

Flipped the spur gear, it didn't put it in the centre, as I hoped, now it's quite close to the other side of the top deck and the rear belt.

But the pinion now lines up beautifully, and it clears the deck and the belt by about 0.75mm (no worse than what it was on the other side), so I reckon it's fine.

pphaneuf is offline
Old 10-18-2014, 04:22 AM
  #470
Tech Addict

chasingthepack's Avatar

Join Date: Apr 2013
Location: hanworth uk
Posts: 728
Default

Originally Posted by pphaneuf
Flipped the spur gear, it didn't put it in the centre, as I hoped, now it's quite close to the other side of the top deck and the rear belt.

But the pinion now lines up beautifully, and it clears the deck and the belt by about 0.75mm (no worse than what it was on the other side), so I reckon it's fine.

judging by the amount it has moved by id say the spur is on the mount the wrong way,double check you have the mount sitting into the machined part of the spur,to me its as if the offset is the wrong way hence not central,flip it on the mount,next best fix is to use narrow spurs,it what i use,ive just taken a look at mine and even using the narrow spur it is perfectly central,the main concern is how close it is to the belt,good luck
chasingthepack is offline
Old 10-18-2014, 11:34 AM
  #471
Tech Regular
iTrader: (29)

Join Date: Aug 2014
Posts: 446
Trader Rating: 29 (100%+)
Default

I'm going to get mine assembled this week. I'm coming off a 13 T4, anybody have a good setup for the 15 on high grip carpet yet?
branover is offline
Old 10-19-2014, 03:20 PM
  #472
Les
Tech Addict
iTrader: (2)

Les's Avatar

Join Date: May 2007
Posts: 629
Trader Rating: 2 (100%+)
Default Weight

Could someone please give me an idea between a standard and light weight body 190mm.

Cheers
Les is offline
Old 10-19-2014, 04:53 PM
  #473
Tech Elite

Skiddins's Avatar

Join Date: Feb 2006
Location: Windsor, UK
Posts: 4,952
Default

Originally Posted by Les
Could someone please give me an idea between a standard and light weight body 190mm.

Cheers
I think it's around 25g difference, if that's what you're asking?
Skiddins is offline
Old 10-19-2014, 06:51 PM
  #474
Tech Elite
iTrader: (45)

rangerjkb's Avatar

Join Date: Dec 2008
Location: USA
Posts: 2,609
Trader Rating: 45 (100%+)
Default

I agree, last time i weighed (painted) bodies was 20g difference.
rangerjkb is offline
Old 10-19-2014, 07:09 PM
  #475
Tech Elite
iTrader: (161)

LasagnaCat's Avatar

Join Date: Oct 2001
Location: Hickory Hills, IL
Posts: 2,253
Trader Rating: 161 (100%+)
Default

So the '15 arrived yesterday, along with the other package of little things I'd ordered for it. Started the assembly last night, finished up today - typical Xray goodness. Mounted the electronics and the body from the '14 on it, and it's officially ready to roll... next spring, when onroad season starts back up again. I need to move somewhere warm.
LasagnaCat is offline
Old 10-19-2014, 08:10 PM
  #476
Tech Elite

niznai's Avatar

Join Date: Feb 2009
Location: All over the place
Posts: 2,974
Default

Originally Posted by pphaneuf
Flipped the spur gear, it didn't put it in the centre, as I hoped, now it's quite close to the other side of the top deck and the rear belt.

But the pinion now lines up beautifully, and it clears the deck and the belt by about 0.75mm (no worse than what it was on the other side), so I reckon it's fine.

Did you flip the whole layshaft around or just the spur (on the layshaft)?

If not, there seems to be too much shoulder showing up in your picture. On my non offset pinion the spur mounting flange shows up a lot less shoulder proud of the spur than yours.

There may be a small manufacturing error there, perhaps it's worth checking the layshaft measurements. The two sides should not be equal (the side with the spur boss is longer between the boss face and the E-clip groove than the other one). The spur holder flange should be about 2mm thick. If these do not match to your layshaft, I think you might have grounds to give Xray a call.

Last edited by niznai; 10-19-2014 at 08:24 PM.
niznai is offline
Old 10-19-2014, 10:10 PM
  #477
Les
Tech Addict
iTrader: (2)

Les's Avatar

Join Date: May 2007
Posts: 629
Trader Rating: 2 (100%+)
Default Bodies

Originally Posted by Skiddins
I think it's around 25g difference, if that's what you're asking?
Yep that was the question, thanks heaps for the replies, much appreciated.
Les
Les is offline
Old 10-19-2014, 10:24 PM
  #478
Tech Elite
iTrader: (8)

Join Date: Nov 2009
Location: Woodinville, WA
Posts: 2,567
Trader Rating: 8 (100%+)
Default

Originally Posted by LasagnaCat
I need to move somewhere that runs indoor on-road carpet.
Fixed that for ya.
grippgoat is offline
Old 10-19-2014, 11:30 PM
  #479
Tech Elite
iTrader: (29)

R3VoLuTiOn's Avatar

Join Date: Jan 2004
Location: Vancouver, Canada
Posts: 2,771
Trader Rating: 29 (100%+)
Default

Originally Posted by grippgoat
Fixed that for ya.
I hear Seattle has a nice onroad track.

Vancouver's is ok too.

R3VoLuTiOn is offline
Old 10-20-2014, 02:43 AM
  #480
Tech Addict

pphaneuf's Avatar

Join Date: Sep 2014
Location: London, United Kingdom
Posts: 509
Default

Originally Posted by niznai
Did you flip the whole layshaft around or just the spur (on the layshaft)?

If not, there seems to be too much shoulder showing up in your picture. On my non offset pinion the spur mounting flange shows up a lot less shoulder proud of the spur than yours.

There may be a small manufacturing error there, perhaps it's worth checking the layshaft measurements. The two sides should not be equal (the side with the spur boss is longer between the boss face and the E-clip groove than the other one). The spur holder flange should be about 2mm thick. If these do not match to your layshaft, I think you might have grounds to give Xray a call.
While I had the thing disassembled, I tried all four combinations, to see what was the best fit. Flipping the layshaft (while leaving the spur gear as in the manual), it actually touched the belt (just, but it did). With both the spur gear and layshaft flipped, it didn't fit so well either (it looked very similar to how it was initially).

What worked best was flipping the spur gear when assembling the layshaft (deeper side of the spur where the top of the screws are), and putting in the layshaft as described in the manual (side with the top of the screws and the composite spacer toward the motor). This is what's in my latest picture, that you quoted.

I did send an email to Xray, and they suggested simply flipping the spur gear, which I thought was odd, with the manual insisting so much on the orientation...
pphaneuf is offline
