Old 07-06-2013, 05:15 PM   #421
Tech Regular

Join Date: Apr 2007
Posts: 271
Default

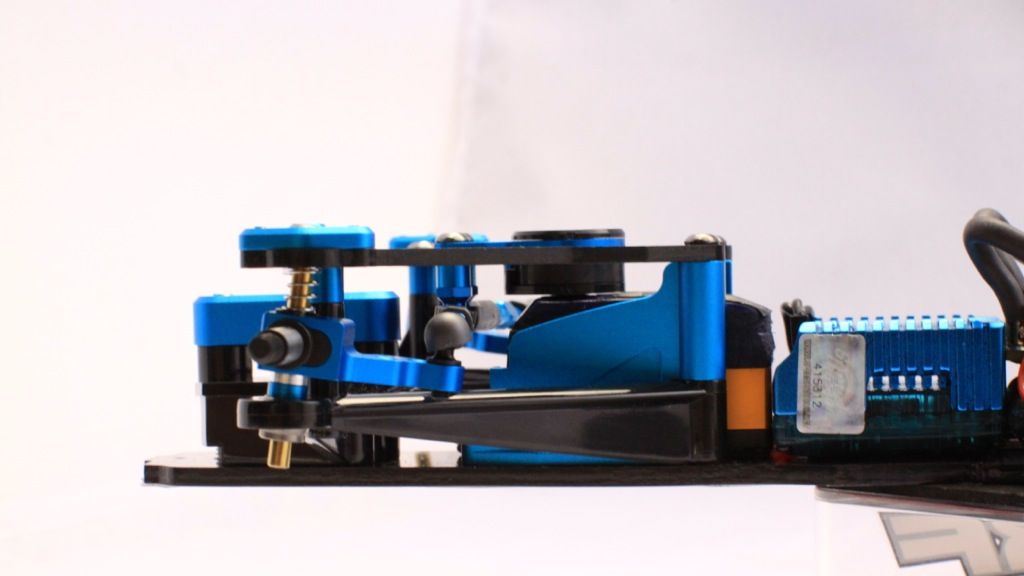

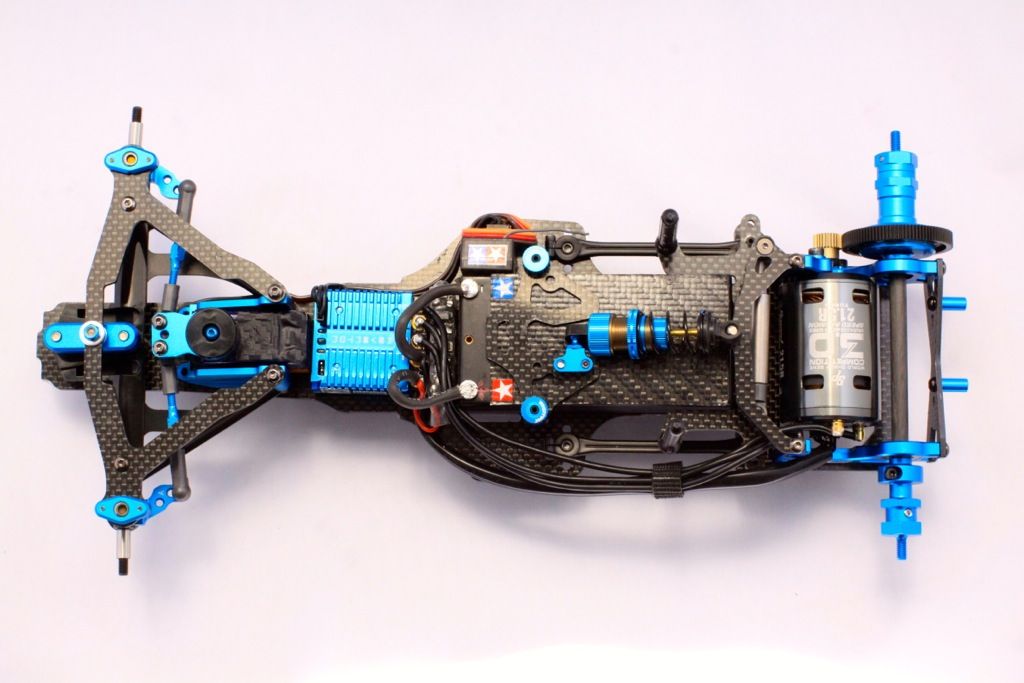

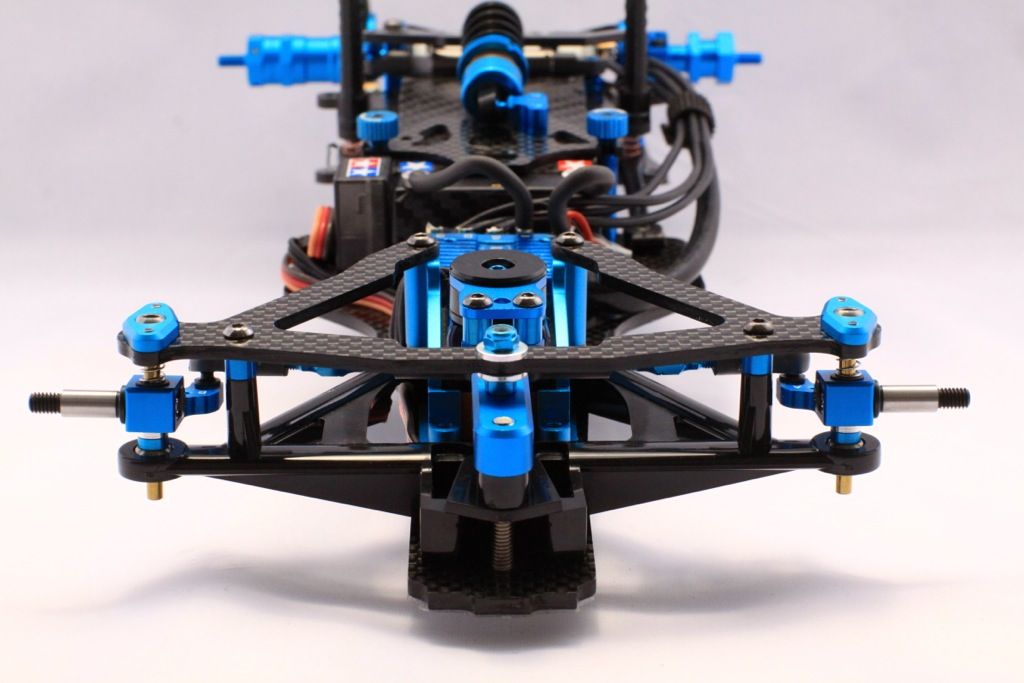

Might as well show the rest of the car.
ic-racer is offline   Reply With Quote
Old 07-06-2013, 06:07 PM   #422
Tech Elite

Join Date: Sep 2004
Posts: 2,410
Trader Rating: 110 (100%+)
Default Blue Aluminum Screw Kit for the Tamiya TRF101 - 66pcs

I purchased a few blue aluminum screws for my Tamiya TRF101 and ended up with a few extras. As such, I was able to make a few more kits for interested racers/enthusists. The screws are made from 7075 aircraft grade aluminum and are anodized blue (medium to dark blue). 6 speciality screws are made from stainless as aluminum was not available. Includes the 4 flat head screws for the front pivot holders as well as the M4x30 screws for the front wing/suspension block. I also included two M4x25 screws in aluminim if the lower block position is used. All are 2mm, 3mm or 4mm thread in round head or flat with 1.5mm, 2.0mm, or 3mm allen key. Much lighter than steel or even titanium. The following sizes are included with the kit:

3x6mm Screw Round 6
3x8mm Screw Round 6
3x10mm Screw Round 9
3x12mm Screw Round 4
3x16mm Screw Round 3
3x6mm Countersunk Screw Flat 5
3x8mm Countersunk Screw Flat 18
3x10mm Countersunk Screw Flat 1
3x20mm Countersunk Screw Flat 2
2x5 Screw Cap 6
2x6 Screw (stainless) Flat 4
4x25mm Countersunk Screw Flat 2
4x30mm Countersunk Screw (stainless) Flat 2

Total of 66 pieces. $29 shipped in the USA if interested. A few $s more for international shipping.

PM or email for details. I have 2-3 extra sets now and hope to have more in a month or so.

Erik
Attached Thumbnails
__________________
http://store01.prostores.com/servlet/whipracing_bluescrews/StoreFront
ewippler is offline   Reply With Quote
Old 07-07-2013, 07:40 AM   #423
Tech Elite

celt's Avatar

Join Date: Jan 2004
Location: /dev/null
Posts: 2,243
Trader Rating: 5 (100%+)
Default

Quote:
Originally Posted by ic-racer View Post
This is how I got my front end ride height to 5mm with standard Tamiya rubber front tires. Basically I just added an extra 2mm all the way around.
Your method is completely logical and just how I would do it.

Hopefully, there is an option part or method that we aren't aware of that allows us to achieve desired ride height with rubber tires that doesn't involve placing shims in no less than seven locations.
__________________
"Soon they will get everything they deserve. This isn't about trite elitism, but the otherwise intellectual and educated classes refusing to think for themselves. I call it situational ignorance, and painfully intolerable."

Stan Garvin
celt is offline   Reply With Quote
Old 07-07-2013, 08:46 AM   #424
Tech Elite

rtypec's Avatar

Join Date: Jun 2002
Location: SoCal
Posts: 2,962
Trader Rating: 2 (100%+)
Default Video of TRF101

Hi All,

Here's a video of the very first battery pack on a TRF101 shakedown run. The yellow F1 car is 2012 TCS F1 North American Champion running in Team Capeta mode Tires were Tamiya TCS front and rear with front ride height as instructed in the manual

Enjoy

TRF101 at Tamiya America Raceway
+ YouTube Video
ERROR: If you can see this, then YouTube is down or you don't have Flash installed.


The 101 set the fast lap for the day at 15.1 but was later matched by Doc's V2 during happy hour

Last edited by rtypec; 07-07-2013 at 08:56 AM.
rtypec is offline   Reply With Quote
Old 07-07-2013, 05:00 PM   #425
Tech Master

theatriks's Avatar

Join Date: Jan 2011
Posts: 1,619
Trader Rating: 8 (100%+)
Default

Just spent all day putting it together ...went together great ...electronics are installed ......maybe I need a rest but can someone tell me how you get the 2012 Ferrari rear wing on this car the holes don't line up ....plus that rear wing is a pain to put together with the included screws .
__________________
Mod Mod Mod...I love Mod.....and scotch!
theatriks is offline   Reply With Quote
Old 07-07-2013, 05:35 PM   #426
Tech Apprentice

Join Date: May 2012
Location: Malaysia
Posts: 94
Default

Quote:
Originally Posted by theatriks View Post
Just spent all day putting it together ...went together great ...electronics are installed ......maybe I need a rest but can someone tell me how you get the 2012 Ferrari rear wing on this car the holes don't line up ....plus that rear wing is a pain to put together with the included screws .
Check again in manual on mounting rear wing holder onto the carbon rear plate. There is two holes. Make sure you get the right one. Installed my wing with no problem.
squalleonde is offline   Reply With Quote
Old 07-07-2013, 09:32 PM   #427
Tech Addict

macavant's Avatar

Join Date: Sep 2010
Location: RC dojo
Posts: 693
Trader Rating: 62 (100%+)
Default build complete

Ready for shakedown:











The car ended up with 5mm with black springs and 4.5mm with silvers (front end built as per manual). Tires are PIT 571/575 on Tamiya wheels. Re-using my MP4-24 bodyset I had on my F104X1. Side pods had to be trimmed up a bit to clear the links, along with the front nose section to clear the CF front plate. Everything else lines up just fine.

__________________
likes the oldskool RC action...
F103.F201.F103GT.F1R3☆F104WGP.F1Ultra☆M01.M05.YR4MSe.TA05.XV-01Pro.ABC_Genetic(Exotek)☆microRS4-Motek☆TA02SW☆WR02.CC-01☆TRF201☆TRF417X.TRF101.TRF101W
macavant is offline   Reply With Quote
Old 07-07-2013, 10:44 PM   #428
Tech Fanatic

aussierevo's Avatar

Join Date: Apr 2007
Location: Brisbane Qld
Posts: 874
Trader Rating: 12 (100%+)
Default

job well done. I'm sure you will enjoy the new car a lot.

I've noticed your blue battery screws. Could you tell me what brand they are and where you got them. Much easier to use these by the looks of them then what the kit has.
__________________
Speed Passion F1.
Hobbywing ESC and Motor, SMC Batteries
Meakin Park Club Member
Team ARGO RC - Like us on Facebook
aussierevo is offline   Reply With Quote
Old 07-07-2013, 10:51 PM   #429
Tech Master

edhchoe's Avatar

Join Date: Jul 2004
Location: vancouver, wa, usa
Posts: 1,509
Trader Rating: 41 (100%+)
Default

edhchoe is offline   Reply With Quote
Old 07-08-2013, 02:06 AM   #430
Tech Fanatic

aussierevo's Avatar

Join Date: Apr 2007
Location: Brisbane Qld
Posts: 874
Trader Rating: 12 (100%+)
Default

exotek...I should have known. thanks for your help.
__________________
Speed Passion F1.
Hobbywing ESC and Motor, SMC Batteries
Meakin Park Club Member
Team ARGO RC - Like us on Facebook
aussierevo is offline   Reply With Quote
Old 07-08-2013, 08:21 AM   #431
Tech Addict

macavant's Avatar

Join Date: Sep 2010
Location: RC dojo
Posts: 693
Trader Rating: 62 (100%+)
Default

Quote:
Originally Posted by aussierevo View Post
job well done. I'm sure you will enjoy the new car a lot.
thx mate - I plan on getting out to the track this week to test it out. My current main runner is an updated F1R; it would be a good comparo between the two.

The Exotek twist nuts comes in different colors - here are 2 examples.
black anodizing:


blue anodizing:


side by side:


HTH
__________________
likes the oldskool RC action...
F103.F201.F103GT.F1R3☆F104WGP.F1Ultra☆M01.M05.YR4MSe.TA05.XV-01Pro.ABC_Genetic(Exotek)☆microRS4-Motek☆TA02SW☆WR02.CC-01☆TRF201☆TRF417X.TRF101.TRF101W
macavant is offline   Reply With Quote
Old 07-08-2013, 08:37 AM   #432
Tech Regular

FL_SilverEvo8's Avatar

Join Date: Oct 2010
Location: Fort Myers, FL
Posts: 268
Trader Rating: 14 (100%+)
Send a message via AIM to FL_SilverEvo8
Default

Quote:
Originally Posted by PhilippineEagle View Post
Rtype: I like your battery forward set up. It's making me second think mine.
This is my first build in 20+ years and have no experience in F1.
The previous prebuilt and used kits I got, I eventually disposed because I knew I wanted to build something from scratch.

I am just wondering which set up would be better for indoor asphalt, medium to high temperature (Philippine tropical climate)... Battery forward or battery back?

I already know the answer is to try both set ups and see for myself... But I also don't really want to have to re-wire (re-solder) connections as much as possible.

Holy Toe Batman. I thought in F1 you post to have the toe set at 0?
__________________
Off-Road - Durango:DEX210R(2wd Buggy), DESC210R(2wd SCT), DESC410R(4wd SCT)
On-Road - CRC: Gen-X 10 LE(WGT), X-Ray:T3 2011(VTA), X-Ray:T2 009(USGT) TRF 101(F-1), AE: RC10R5.1(Spec17.5)
Jeff's RC Studio Video>> http://www.youtube.com/watch?v=WtZ8-TV8Fs8&feature=share
FL_SilverEvo8 is offline   Reply With Quote
Old 07-08-2013, 11:31 AM   #433
Tech Master

edhchoe's Avatar

Join Date: Jul 2004
Location: vancouver, wa, usa
Posts: 1,509
Trader Rating: 41 (100%+)
Default

That is a lot of toe... I set mine at +0.5 on each side.
edhchoe is offline   Reply With Quote
Old 07-08-2013, 11:53 AM   #434
Tech Fanatic

Join Date: Apr 2004
Location: Baltimore, MD
Posts: 859
Trader Rating: 25 (100%+)
Default

Quote:
Originally Posted by rtypec View Post
Hi All,

Here's a video of the very first battery pack on a TRF101 shakedown run. The yellow F1 car is 2012 TCS F1 North American Champion running in Team Capeta mode Tires were Tamiya TCS front and rear with front ride height as instructed in the manual

Enjoy

TRF101 at Tamiya America Raceway
+ YouTube Video
ERROR: If you can see this, then YouTube is down or you don't have Flash installed.


The 101 set the fast lap for the day at 15.1 but was later matched by Doc's V2 during happy hour
I wish I lived in Cali so I could run here. The track looks like a lot of fun in F1.
__________________
Former RC fanatic just trying to keep up......
BSR Tires / Spektrum RC
Jamie Hanson is offline   Reply With Quote
Old 07-08-2013, 01:32 PM   #435
Tech Master

edhchoe's Avatar

Join Date: Jul 2004
Location: vancouver, wa, usa
Posts: 1,509
Trader Rating: 41 (100%+)
Default

Quote:
Originally Posted by Jamie Hanson View Post
I wish I lived in Cali so I could run here. The track looks like a lot of fun in F1.
I agree. And rtypec can drive!! He is hugging every turn.
edhchoe is offline   Reply With Quote
