Old 06-25-2013, 01:04 PM   #271
Tech Regular

Join Date: Aug 2006
Posts: 274
Trader Rating: 11 (100%+)
Default

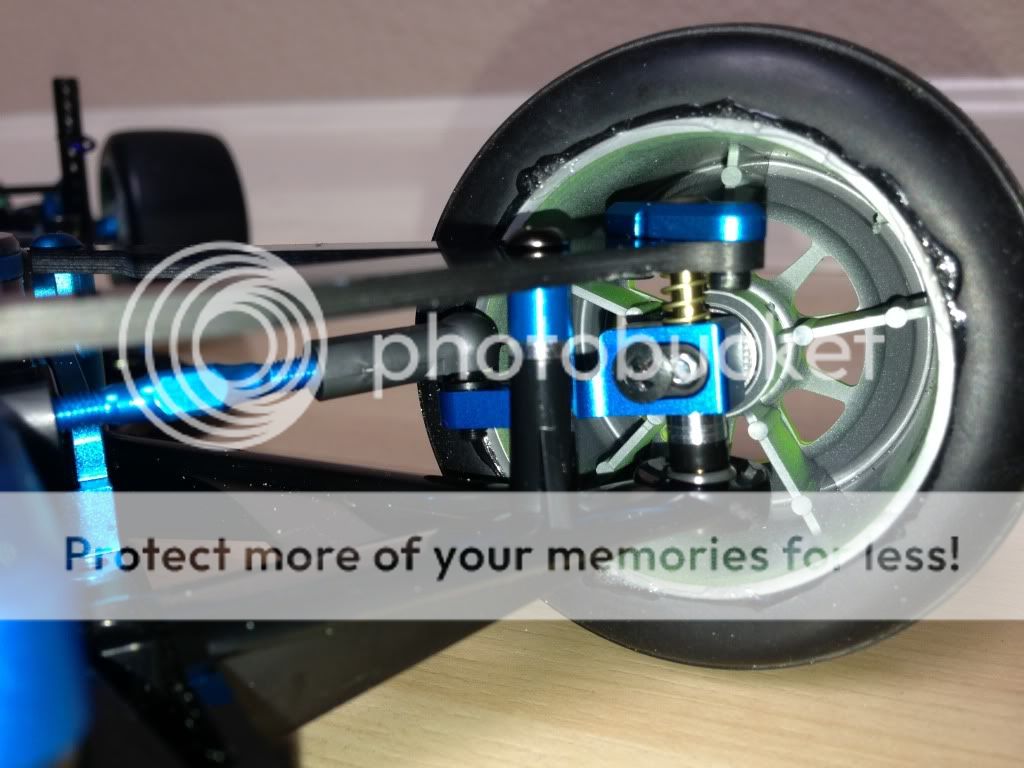

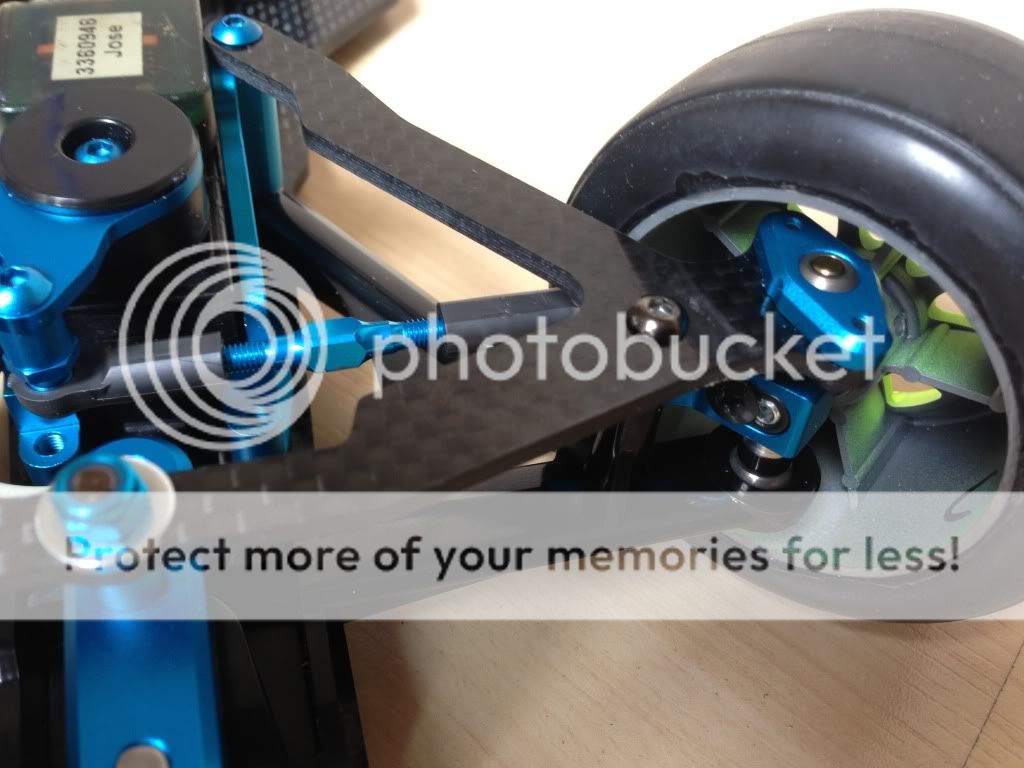

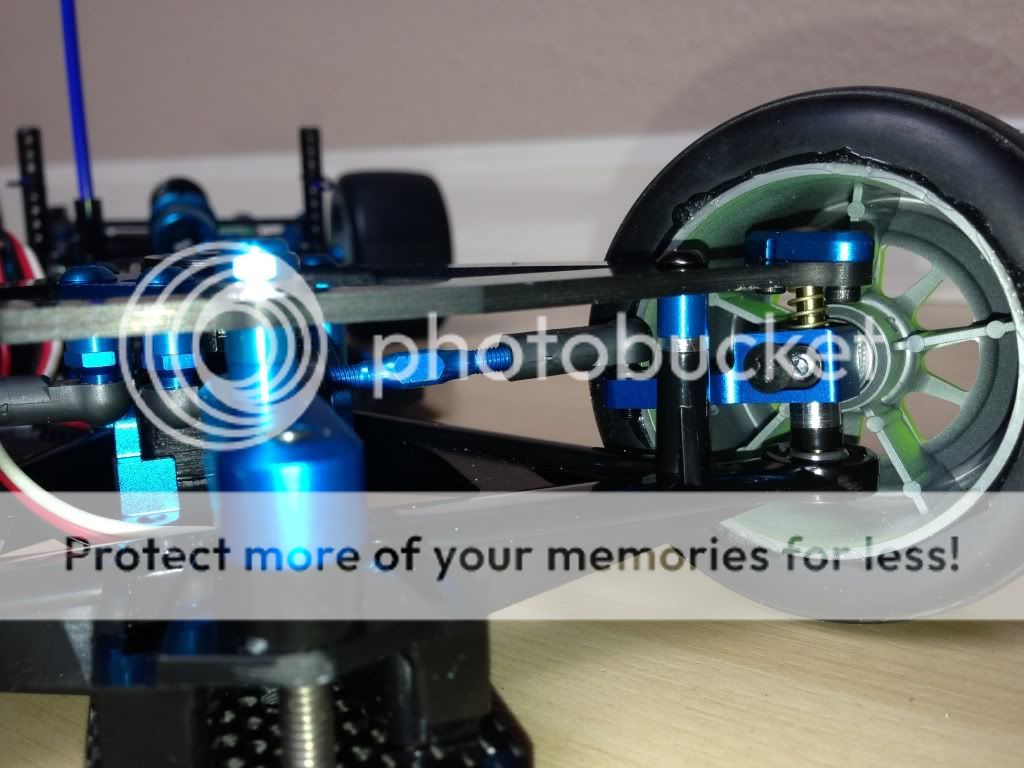

Got the front to 5mm this way. Now just gotta get to track and start testing...





[RC10TC] is offline   Reply With Quote
Old 06-25-2013, 01:10 PM   #272
Tech Champion

RedBullFiXX's Avatar
R/C Tech Elite Subscriber

Join Date: Mar 2003
Location: Intergalactic Planetary
Posts: 6,541
Trader Rating: 34 (100%+)
Default

Quote:
Originally Posted by InspGadgt View Post
Later versions of the F103 had the spring below the arm and the upper arm did not move either. You just need a long enough king pin and the steering knuckle has to be affixed to the king pin either with e-clips on top and bottom or a set screw.
Perhaps with enough pin ...
Attached Thumbnails
__________________
--> 12th scale Information Source <--

"Men do not quit playing because they grow old; they grow old because they quit playing."
― Oliver Wendell Holmes Jr.
RedBullFiXX is offline   Reply With Quote
Old 06-25-2013, 05:12 PM   #273
Tech Champion

robk's Avatar

Join Date: Aug 2001
Location: Macho Business Donkey Wrestler
Posts: 7,500
Trader Rating: 22 (100%+)
Default

Quote:
Originally Posted by aussierevo View Post

car was setup as per manual except I used 2000wt diff oil in roll damper and first run noticed the rear would step out. Changed the side springs from silver to gold and the car was a lot better thru the sweepers. Used Shimizu 571 front and 575 rear and car TQ'd the 2 x 8min heats. Car if anything had some mid corner understeer.

Made a couple of changes for the 15min final and must say car wasn't as good. Went to Shimizu 572 rear and soft grease in roll damper and car just wouldn't rotate and kept skipping sideways. Admittedly, I could hear diff slipping from the drivers stand so that was not ideal.
To be honest I would go back to the 575 rears. It may be all tires, did you ever try the 574 front?

One other thing that might help would be going back to the silver side spring but preload it at least 1 full turn. That will help stabilize the car, but it will still roll and maybe help your mid corner.
__________________
A mutually re-enforcing cascade of failure

"Failior [sic] crowns enterprise." Robert Goddard

I-Lap Scoring Systems http://www.rclapcounter.com/
robk is offline   Reply With Quote
Old 06-25-2013, 05:30 PM   #274
Tech Elite

mtveten's Avatar

Join Date: Jan 2003
Posts: 2,655
Trader Rating: 27 (100%+)
Default

rc10tc By increasing the total shim stack like that preloading the spring you would have eliminated all the up-travel that is likely to cause the front end to bounce with a notchy feel.

InspGadgt
The trf kingpins are long enough to place the springs below but the upper arm suspensions balls are not captive and rely on the springs to keep them in place.
mtveten is offline   Reply With Quote
Old 06-25-2013, 05:33 PM   #275
Tech Master

edhchoe's Avatar

Join Date: Jul 2004
Location: vancouver, wa, usa
Posts: 1,509
Trader Rating: 41 (100%+)
Default

Shorter springs maybe the answer.
edhchoe is offline   Reply With Quote
Old 06-25-2013, 05:49 PM   #276
Tech Elite

rtypec's Avatar

Join Date: Jun 2002
Location: SoCal
Posts: 2,968
Trader Rating: 2 (100%+)
Default TRF 101 Build - Steps 12-16

Steps 12-16 completed


Attached Thumbnails
TRF101-1216_1.jpg   TRF101-1216_2.jpg
rtypec is offline   Reply With Quote
Old 06-25-2013, 05:57 PM   #277
Tech Elite

rtypec's Avatar

Join Date: Jun 2002
Location: SoCal
Posts: 2,968
Trader Rating: 2 (100%+)
Default TRF 101 Build - Steps 17-19

Steps 17-19 completed


Notes:
  • Applied a small amount of loctite to all hardware attached to uprights.
  • Replaced the silver 3x3mm grub screws with shorter black grub screws. This allows the 3x5mm low profile screw to fully set and not get scratched by the silver grub screw.
  • This might be overkill, but I applied a small amount of Loctite to the 2x6mm screws that attach the king pin mounts to the front upper arm.

Close up of front suspension


Another close up of front suspension
Attached Thumbnails
TRF101-1719_1.jpg   TRF101-1719_2.jpg   TRF101-1719_3.jpg
rtypec is offline   Reply With Quote
Old 06-25-2013, 06:05 PM   #278
Tech Elite

rtypec's Avatar

Join Date: Jun 2002
Location: SoCal
Posts: 2,968
Trader Rating: 2 (100%+)
Default TRF 101 Build - Steps 20-25

Steps 20-25 completed


Notes:
  • 3.5mm along with an o-ring were used in the pitch damper. I rebuilt the shock 4 times to get rear droop to be slightly below level with 3mm spacers under the middle brace's ball connector.
  • Tamiya soft friction damper grease was used on the roll damper.

Close up of chassis center


That pretty much covers the chassis build.

I still need to install electronics and prepare a body for this chassis...which will probably take a while
Attached Thumbnails
TRF101-2025_1.jpg   TRF101-2025_2.jpg
rtypec is offline   Reply With Quote
Old 06-25-2013, 06:12 PM   #279
Tech Champion

CraigM's Avatar

Join Date: Mar 2007
Location: Sydney, Australia
Posts: 7,009
Trader Rating: 34 (100%+)
Default

awesome shots!
__________________
www.facebook.com/mcpheerc
CraigM is offline   Reply With Quote
Old 06-25-2013, 06:16 PM   #280
Tech Master

edhchoe's Avatar

Join Date: Jul 2004
Location: vancouver, wa, usa
Posts: 1,509
Trader Rating: 41 (100%+)
Default

Tamiya should provide rtypec a new car to do this for every new release.
edhchoe is offline   Reply With Quote
Old 06-25-2013, 06:28 PM   #281
Tech Adept

Join Date: Jun 2010
Location: DFW, TX
Posts: 144
Trader Rating: 18 (100%+)
Default

I still can't believe those are from a point-and-shoot.
viet is offline   Reply With Quote
Old 06-25-2013, 06:32 PM   #282
Tech Master

Autocratic's Avatar

Join Date: Dec 2011
Location: Dallas, Tx
Posts: 1,690
Trader Rating: 26 (100%+)
Default

Quote:
Originally Posted by viet View Post
I can't believe those are from a point-and-shoot.
Amazing what a proper light box does for pictures.
__________________
Thanks to my sponsors for 2015!
XFactory RC | Proline Racing | Fantom Racing | Avid RC | Speed Passion USA | Factory1 | Hy-Traction Juice | Mike's Hobby Shop
Autocratic is offline   Reply With Quote
Old 06-25-2013, 06:32 PM   #283
Tech Champion

robk's Avatar

Join Date: Aug 2001
Location: Macho Business Donkey Wrestler
Posts: 7,500
Trader Rating: 22 (100%+)
Default

Quote:
Originally Posted by rtypec View Post
[*]This might be overkill, but I applied a small amount of Loctite to the 2x6mm screws that attach the king pin mounts to the front upper arm.[/LIST]
I never used so much loctite until I started running rubber tire F1 cars....

Great build posts!!!
__________________
A mutually re-enforcing cascade of failure

"Failior [sic] crowns enterprise." Robert Goddard

I-Lap Scoring Systems http://www.rclapcounter.com/
robk is offline   Reply With Quote
Old 06-25-2013, 06:47 PM   #284
Tech Elite

rtypec's Avatar

Join Date: Jun 2002
Location: SoCal
Posts: 2,968
Trader Rating: 2 (100%+)
Default

Quote:
Originally Posted by viet View Post
I still can't believe those are from a point-and-shoot.
Canon ghetto-cam taken from my iPhone.


The camera kinda sucks but Photoshop doesn't


Quote:
Originally Posted by Autocratic View Post
Amazing what a proper light box does for pictures.
It's a $0.32 piece of poster board
Attached Thumbnails

Last edited by rtypec; 06-25-2013 at 07:21 PM.
rtypec is offline   Reply With Quote
Old 06-25-2013, 08:00 PM   #285
Tech Regular

Join Date: Aug 2006
Posts: 274
Trader Rating: 11 (100%+)
Default

mtveten, I raised the front arms the same amount as the spacer so the spring is not being pre-loaded
[RC10TC] is offline   Reply With Quote
