Old 10-28-2016, 12:43 PM   -   Wikipost
R/C Tech Forums Thread Wiki: 1/12 forum
Please read: This is a community-maintained wiki post containing the most important information from this thread. You may edit the Wiki once you have been a member for 90 days and have made 90 posts.

Last edit by: fenton06
This is a place to share knowledge related to 1/12th scale racing. It is not to be used for conversations.

KITS:
Click links to go to manufacturer product page. If any are missing please add them!

TIRES:
Pre-mounted tires readily available in the US:
Pre-mounted tires readily available in the Europe:
  • Hot Race ??

Gluing your own donuts:
https://www.youtube.com/watch?v=hm7z1rz-74s - Special thanks to Edward Pickering!
Truing tires:
https://www.youtube.com/watch?v=8wqHOLWq6Uc - Special thanks to Edward Pickering!

The following information came from HERE, with some editing and information added. Thanks Christian!

THIS MAY NEED UPDATING FOR THE NEW BLACK CRC CARPET

Brands:
BSR, CRC, Jaco:
Pro One is no longer selling to the public, but it and the brands above are all mounted by BSR and use the same foam. The nomenclature of the BSR vs Jaco/CRC is a little different in a few instances but is otherwise the same. The BSR foam consists of three families, and can be identifed as synthetics, naturals, and blends.

Synthetics - The old school, light weight, easy to true "dry feeling" tires. These include tires like CRC/Jaco Yellow (BSR White), Black, Gray, etc. These tires offer the highest wear rate and lowest grip. Many racers continue to use these nder high bite conditions.

Naturals - These tires are usually the best alternative for low bite and asphalt. They include Pink, Magenta, Double Pink, Lilac (BSR Team Purple), Purple, and other tires. These tires provide a ton of grip, but tend to get sticky in high bite conditions. This rubber does not wear as easily, and the cars will pick up gunk and fibers from the carpet under most high bite conditions. This is especially bad if the humidity is high.

Blends - These are the tires most people run today. They were initially called "JFT foam" by some, as it was believed that the tires were the same as the JFT tires. We can divide the blends further into two groups: high rubber and low rubber content. The high rubber would be the new rear Orange and Red from the BSR family, and the low rubber would be the Green and Blue varieties. When, asked about the difference, John Foister from BSR Tires said they came from the same "family" of foam, but they offered different grip. According to John, the Green/Blue has more bite than Orange/Red, but from track testing Oranges offer more bite than Green (being equivalent to in hardness) when the grip is high and absolutely no grip when it is lower. The Orange foam has a denser pore structure and the tire is not as prone to chunking. It is also important to note is that BSR Blue rears are not the same as the BSR Blue fronts!

JFT:
JFT stands for Japan Foam Tire. They started the new wave of foam tires we are all using now (Blue/Blu, Green/Greene, Dbl Blue, etc). These tires are a little different than the BSR tire family, but work in very similar conditions. They offers four varieties A (asphalt), C (carpet), S (???), and R (???). This does not mean that those types only work on that surface, but this is what they recommend.

JFT uses the same foam for fronts and rears if the color is the same.

A: Used on asphalt, considered close to the natural rubber variety and are named consistently with other natural tires.
C: Used on carpet, considered a blend.
S: Used on carpet?, tires are ???
R: Used on carpet?, tires are ???

For setup, the JFT foam seem to generate more bite than the BSR, therefore the car tends to be a little more aggressive.

Ulti:
Ulti is another Japanese brand that offers an array of compounds. They have their own way of rating tires, and are difficult to equate to other brands. They have 4 different varieties, each in varying degrees of hardness.

J: High rubber content tire, similar to Pink/ Magenta. Soft would be close to a pink. These offer the most bite and are great for asphalt/carpet front tire. (J hard being very popular)
X: "Balanced" blend, similar to JFT Blue/ Green. Soft is equivalent to Green, medium to Blue in hardness. Great for carpet!
Y: High synthetic blend with lower grip, and is not a very popular variety.
Z: A very expensive "special" foam that is supposed to be magic on asphalt. Only make it in soft shore.
European tires:
There are many great European foam tire brands that use their own types of foam, as well as traditional foams. SOmeone with more knowledge about them will need to fill this in!

Tire Diameter:
If you are racing on carpet, you have to evaluate how much grip your track has. If your track is low to medium grip, you can run bigger tires. If you are on higher bite you have to cut them smaller, there is simply no way around it. Bigger tires are needed for asphalt, especially in the rear. The larger tires provide much needed lateral bite.

Carpet (mm):
Low - Medium Bite
Front: 42.0 - 42.5
Rear: 42.5 - 43.00
Medium - High Bite
Front: 40.5 - 41.0
Rear: 41.5 - 42.0
Big Race
Front: 39.5 - 40.0
Rear: 40.5 - 41.0
Asphalt (mm):
Parking Lot
Front: 43.0 - 44.0
Rear: 44.0 - 45.0
Prepped High Bite
Front: 42.0 - 43.0
Rear: 43.0 - 44.0

Tire Saucing:
Most facilities have moved towards odorless traction additives such as SXT. Some of additives evaporate very quickly and some do not. This seems to be something that is also dependent on tire compound and ambient temperature. For example, saucing a Green compound seems like it never dries, especially when tjhe temperature is lower. We have found that wiping the tires off 15 minutes before we go run allows the sauce to cure, which makes the car come in much quicker with Green rears. Blue compounds on the other hand, do fine when wiped off right before hitting the track.

Saucing half front and full rear is a good initial starting point. If the front of the car is too agressive you can sauce les than half, or for a shorter amount of time.
Tire Fuzzing:
In conditions of increasing grip, foam tires will somewtimes get sticky and pick up fuzz and debris from the track. This is highly dependent on the rubber sedan tire that is being run at your local track and the compound/ type of foam you are running on you car. The softer the sedan tire and the harder/higher rubber content in your foam tire, trouble with fuzzing seems more likely to occur.

There are ways to get around fuzzing under most conditions, and usually involves the selection of the correct foam compound. The more fuzz you get, the softer/lower rubber content you want to run.

Examples:
Problem: Car fuzzes with Lilac/Team Purple fronts and car starts pushing.
Solution: Use a softer front tire and or different family of foam. Replace it with Blue or Double Blue front.

Problem: Car loses rear bite 6 minutes into the run. Blue rear tires look almost clean but have small carpet hairs.
Solution: Use Green rear tires. The softer compound wears instead of getting sticky, minimizing fuzz.

Tire Selection:
Starting out, pick 2 tire compounds for the front and rear. The following should have you covered 99% of the time.

Front - Green and Blue (BSR) or Green and Light Blue (JFT)
Rear - Blue and Double Blue (BSR) or Blue and Dark Blue (JFT)

You may wonder about other compounds out there and if they might be better, trust me, they probably won't be. Even if there are other tires that can be as fast, the synthetic family wears out really fast and the high natural rubber will probably fuzz on you over an 8 minute run. The blends family seems to be the most versatile foam type available today. They last awhile, and sticking to them will make your process of tire selection simpler.
Tire Charts:
BSR/CRC/Jaco



Contact



Corally



JFT (Japan Foam Tire)



Ulti



Enneti (Xceed)



ELECTRONICS:
ESC:
As of now, ROAR is staying 1S (3.7V nominal; 4.2V fully charged) for 1/12. There are many 1S ESC's with a built in BEC so nothing else is required to power the receiver and servo.

If you don't want to lock yourself into a 1S specific ESC, you do have other options! It is possible to use your 2S ESC without a booster or receiver pack, and the ESC simply supplies the lower voltage. If that does not appeal to you, you will need to use an Rx pack or booster. The Rx pack and booster will both supply the receiver with a higher voltage than the 1S pack.

If you decide to use an Rx pack, MAKE SURE TO REMOVE THE RED WIRE FROM THE ESC PLUG THAT GOES INTO THE RECEIVER!!!

If you choose to use a voltage booster, it works exactly how it sounds. Instead of plugging the ESC into the receiver, it plugs into the booster, and the booster plug goes to the ESC, supplying the higher voltage.

1S ESC:
If there are any missing please add them!!

If anyone would like a need for a chart comparing the ESC's specs PM fenton06 and I'll get one made and put in here!
Voltage Boosters:
If there are any missing please add them!
Servos:
BODIES:
Black Art (CRC - US Dist):
  • Audi R8C - BA002 - .020 Thick



  • Black Market (Mohawk 12) - BA005 - .020



  • Lola B10 - BA006 - .020 thick
  • Toyota TS030 - BA008 - .020 thick

    Lola - black/red, TS030 - green/pink


PROTOForm:

Reflex Racing/RSD:

SUSPENSION ADJUSTMENTS:

Print Wikipost

Reply

Thread Tools Search this Thread
Old 09-23-2010, 12:53 PM   #34591
Tech Elite

nashrcracer's Avatar
R/C Tech Charter Subscriber

Join Date: Nov 2001
Location: LA - Lower Antioch
Posts: 4,849
Trader Rating: 1 (100%+)
Default

Quote:
Originally Posted by littlealex View Post
i m new to pan car, just having a quick question. what kind of traction compound you guys use for indoor on your foam tires?
PARAGON GROUND EFFECTS FOR LIFE

ok that is the best for 12th scale lasts the full race on any track. now with that being said some tracks mandate other brands like jack the gripper as it doesn't smell like wintergreen which I don't mind. stickyfingers from trinity suxs and even jack has issues for a 8 minute race unless everybody is using it. Niftech has some stuff that some of the other 12th scale drive stand by but I have not used it. I would check with your local track to see if they have a preference so that you can get it and that your permiating the carpet with similar compound.
__________________
RC50 As you come into this world, something else is also born. You begin your life, and it begins a journey towards you. It moves slowly, but it never stops. Wherever you go, whatever path you take, it will follow never faster, never slower, always coming. You will run, it will walk. You will rest, it will not. One day, you will linger in the same place too long you will sit too still, or sleep too deep. And when, too late, you rise to go, you will notice a second shadow next to yours. Your life will then be over.
nashrcracer is offline   Reply With Quote
Old 09-23-2010, 12:57 PM   #34592
Regional Moderator

CarbonJoe's Avatar

Join Date: Jul 2006
Posts: 2,660
Default

Quote:
Originally Posted by littlealex View Post
i m new to pan car, just having a quick question. what kind of traction compound you guys use for indoor on your foam tires?
Most tracks now use Jack the Gripper, Sticky Fingers, or Niftech, as much as Nashrcracer wishes we'd use Paragon.
__________________
*** The Gate - Celebrating 7 years at the same location ***
The difference between genius and stupidity is that genius has its limits. - Albert Einstein
Understeer is when you hit the wall with the front of the car and oversteer is when you hit the wall with the rear of the car
CarbonJoe is offline   Reply With Quote
Old 09-23-2010, 12:58 PM   #34593
Tech Addict

js058515's Avatar

Join Date: Oct 2008
Location: SoCal
Posts: 574
Trader Rating: 6 (100%+)
Default

Crashby, why is it worth the extra cost + shipping to run the RCDynamics vs the TQ Booster. I use the TQ Booster and like it, but I like to know about all products on the market. Educate me!

Quote:
Originally Posted by Crashby View Post
Don't mess around with a receiver pack. Just get one of these: http://www.rcdynamics.co.uk/Products.html

The TQ Boosters work good to but the RC Dynamic boosters are located in the UK. That is all I use now.

The Novak will cut off under heavy amp draw loads about mid way through a 8 minute run. There is a way to disable the lipo protection but you need to contact Novak as you have to do some work on the device.
js058515 is offline   Reply With Quote
Old 09-23-2010, 01:00 PM   #34594
Tech Rookie

Join Date: Apr 2007
Posts: 15
Default Yok Front end

Does anybody have a release date for this item? i see the parts are on the Yok Japan site but not USA? Anything would help.

ME
merich401 is offline   Reply With Quote
Old 09-23-2010, 01:06 PM   #34595
Tech Lord

wingracer's Avatar

Join Date: Nov 2007
Posts: 12,636
Trader Rating: 21 (100%+)
Default

Like nash said, the black can paragon is the best, period, hands down, no contest. Of course, many tracks don't allow it. If your track doesn't allow it, run what everyone else is using. Mixing compounds can create some strange issues.
__________________
Sean. Certified speed crazed mowron.
Team Shepherd USA
www.ashfordhobby.com
wingracer is offline   Reply With Quote
Old 09-23-2010, 01:20 PM   #34596
Tech Champion

JayBee's Avatar

Join Date: Mar 2004
Location: 12TH-MAN COUNTRY
Posts: 6,803
Trader Rating: 31 (100%+)
Default

Just a question....is there a such thing as 'the best rear axle' out there?
__________________
R C 3 G R A F I X _ F U S I O N . G R A P H I X _ S E A T T L E - R/C - R A C E R S _ E M E R A L D C I T Y R C . C O M

A E - 12R5.2 _ S M - REV8 PRO
JayBee is offline   Reply With Quote
Old 09-23-2010, 01:50 PM   #34597
Tech Master
R/C Tech Elite Subscriber

Join Date: Oct 2008
Location: Grand Portage, MN
Posts: 1,362
Trader Rating: 39 (100%+)
Default

Quote:
Originally Posted by littlealex View Post
i m new to pan car, just having a quick question. what kind of traction compound you guys use for indoor on your foam tires?
We Use Paragon FX II We disallow Ground Effects
jdeadman is offline   Reply With Quote
Old 09-23-2010, 01:52 PM   #34598
Regional Moderator

CarbonJoe's Avatar

Join Date: Jul 2006
Posts: 2,660
Default

Quote:
Originally Posted by JayBee View Post
Just a question....is there a such thing as 'the best rear axle' out there?
Probably an IRS axle.
__________________
*** The Gate - Celebrating 7 years at the same location ***
The difference between genius and stupidity is that genius has its limits. - Albert Einstein
Understeer is when you hit the wall with the front of the car and oversteer is when you hit the wall with the rear of the car
CarbonJoe is offline   Reply With Quote
Old 09-23-2010, 02:20 PM   #34599
Tech Champion

Join Date: Nov 2001
Location: Hawaii, USA
Posts: 7,157
Default

Quote:
Originally Posted by JayBee View Post
Just a question....is there a such thing as 'the best rear axle' out there?
As far as the axle they are all pretty much the same...where I have problems is in what attaches to the axle like the hubs. Previous to my Copperhead I had to over tighten the IRS left side hub to keep it from slipping and as a result cracked 3 of them right where the screw head goes through. The IRS left side hub on my Copperhead has not had this issue. I think it has to do with it being re-annodized. It just seems to hold better without using a gorilla grip to tighten it. I rather like the angle of the slot on the CRC axle better because when you tighten it up the 2 sides meet more flush and will have less propensity to crack. However the one I had the wheel screw holes were all crooked (Probably just got one that slipped through inspection). But I wouldn't worry about that as all the ones I have seen on friends cars since then have been straight. My favorite left side hub though was the thread on one that AE used to use. Never had to worry about a balance issue and it never slipped on the axle. The problem though was in axle spacing...there was pretty much only 1 width you could run with it. I also heard some people had issues with the threaded part coming out of the axle.
InspGadgt is offline   Reply With Quote
Old 09-23-2010, 02:38 PM   #34600
Tech Champion

JayBee's Avatar

Join Date: Mar 2004
Location: 12TH-MAN COUNTRY
Posts: 6,803
Trader Rating: 31 (100%+)
Default

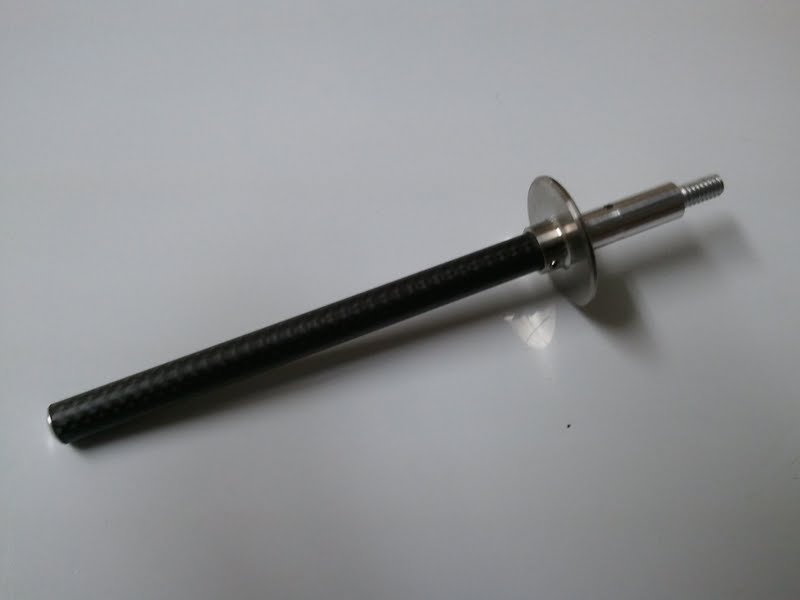

The reason I asked was because I just found an old but unused axle in a box of parts.
Oh just forget it.....I'll take a pic. BRB

I remember someone telling me that this was the best out. I just remember how expensive it was, lol But I don't remember the brand of it.


Its also 1/2" shorter on the right hub side & 1/4" shorter on the other
Attached Thumbnails
1/12 forum-12th-scale-axle.jpg
__________________
R C 3 G R A F I X _ F U S I O N . G R A P H I X _ S E A T T L E - R/C - R A C E R S _ E M E R A L D C I T Y R C . C O M

A E - 12R5.2 _ S M - REV8 PRO
JayBee is offline   Reply With Quote
Old 09-23-2010, 02:39 PM   #34601
Tech Elite

odpurple's Avatar

Join Date: Dec 2002
Location: San Francisco
Posts: 2,187
Default

Quote:
Originally Posted by JayBee View Post
Just a question....is there a such thing as 'the best rear axle' out there?
Niftech! No comparison
__________________
TOP Racing USA--OD Racing--Novak--Power Push--J Spec
odpurple is offline   Reply With Quote
Old 09-23-2010, 02:41 PM   #34602
Tech Elite

odpurple's Avatar

Join Date: Dec 2002
Location: San Francisco
Posts: 2,187
Default

Quote:
Originally Posted by JayBee View Post
The reason I asked was because I just found an old but unused axle in a box of parts.
Oh just forget it.....I'll take a pic. BRB

I remember someone telling me that this was the best out. I just remember how expensive it was, lol But I don't remember the brand of it.
Hey B that looks like a Kawada axle
__________________
TOP Racing USA--OD Racing--Novak--Power Push--J Spec
odpurple is offline   Reply With Quote
Old 09-23-2010, 02:41 PM   #34603
Tech Champion

Join Date: Nov 2001
Location: Hawaii, USA
Posts: 7,157
Default

Quote:
Originally Posted by odpurple View Post
Niftech! No comparison
Oh yeah! I forgot all about them. Great stuff!
InspGadgt is offline   Reply With Quote
Old 09-23-2010, 02:44 PM   #34604
Tech Regular

TrevCoult's Avatar

Join Date: Sep 2008
Location: Worksop, Nottinghamshire, UK
Posts: 350
Default

Quote:
Originally Posted by js058515 View Post
Crashby, why is it worth the extra cost + shipping to run the RCDynamics vs the TQ Booster. I use the TQ Booster and like it, but I like to know about all products on the market. Educate me!
It will supply a constant 6V all the way through a run, it has a built in switch so easier to wire and fit on the car, it is built with military grade electronics so very reliable and little electronic noise. There's more, just click on the link written above and read. Not cheap, but definitely the best on the market.

I reviewed it a while ago, link is http://www.carsrcracing.co.uk/?p=183

Trev
__________________
Schumacher Atom GT12
Schumacher Eclipse 12th
www.carsrcracing.co.uk
CARSrcracing.co.uk Webmaster
Schumacher Racing
TrevCoult is offline   Reply With Quote
Old 09-23-2010, 02:46 PM   #34605
Tech Champion

JayBee's Avatar

Join Date: Mar 2004
Location: 12TH-MAN COUNTRY
Posts: 6,803
Trader Rating: 31 (100%+)
Default

Quote:
Originally Posted by odpurple View Post
Hey B that looks like a Kawada axle
Was that a shorter axle? The name Niftech sounds familiar. I believe thats what I was told it is


BTW....whats the part# of the best axle with no comparison?
__________________
R C 3 G R A F I X _ F U S I O N . G R A P H I X _ S E A T T L E - R/C - R A C E R S _ E M E R A L D C I T Y R C . C O M

A E - 12R5.2 _ S M - REV8 PRO

Last edited by JayBee; 09-23-2010 at 02:59 PM.
JayBee is offline   Reply With Quote
Reply

Similar Threads
Thread Thread Starter Forum Replies Last Post
New to the forum mig rod Electric Off-Road 1 01-05-2008 05:23 PM
hi i need help and im new to the forum racer4 Rookie Zone 4 01-21-2007 02:37 PM
Why is this forum listed under the On Road Forum? sport10 Onroad Nitro Engine Zone 0 01-11-2007 08:06 AM
Forum Changes... futureal Wisconsin & Illinois Racing 3 10-28-2002 09:26 PM



Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are Off



All times are GMT -7. It is currently 01:27 AM.


Powered By: vBulletin v3.9.2.1
Privacy Policy | Terms of Use | Advertise Content © 2001-2011 RCTech.net

SEO by vBSEO 3.5.0
