Ready to convert 21.5 2S blinky.

Last edited by liljohn1064; 06-12-2014 at 10:57 PM.
liljohn1064 is offline   Reply With Quote
Old 06-12-2014, 10:00 PM   #3782
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default


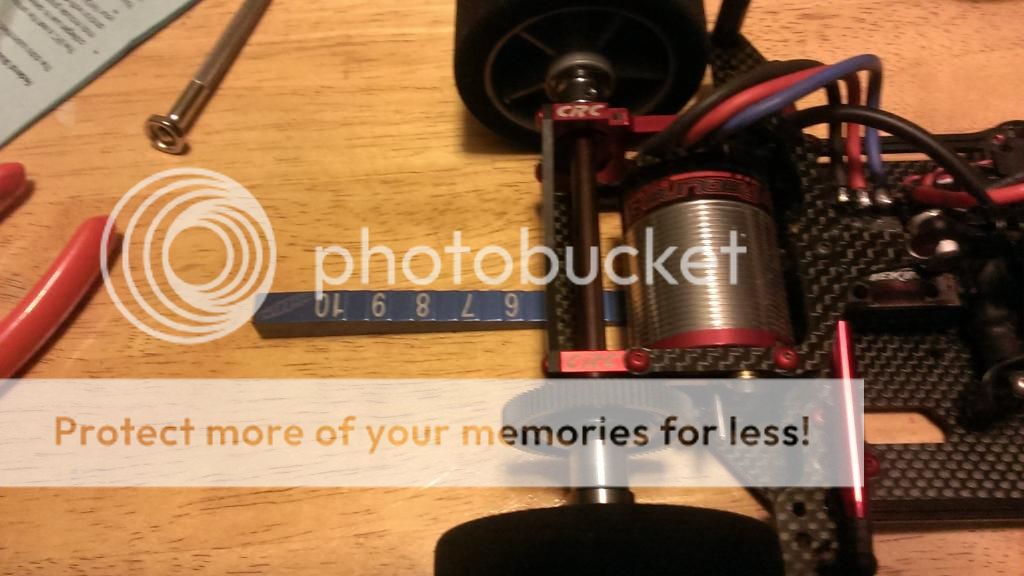

LM-1 length to CRC comparison shot.

Last edited by liljohn1064; 06-12-2014 at 10:59 PM.
liljohn1064 is offline   Reply With Quote
Old 06-12-2014, 10:01 PM   #3783
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default



Quite a bit shorter.

Last edited by liljohn1064; 06-12-2014 at 11:00 PM.
liljohn1064 is offline   Reply With Quote
Old 06-12-2014, 10:01 PM   #3784
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default


Closer! Tires will have either wear down or be trued 1mm.

Last edited by liljohn1064; 06-12-2014 at 11:02 PM.
liljohn1064 is offline   Reply With Quote
Old 06-12-2014, 10:02 PM   #3785
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default


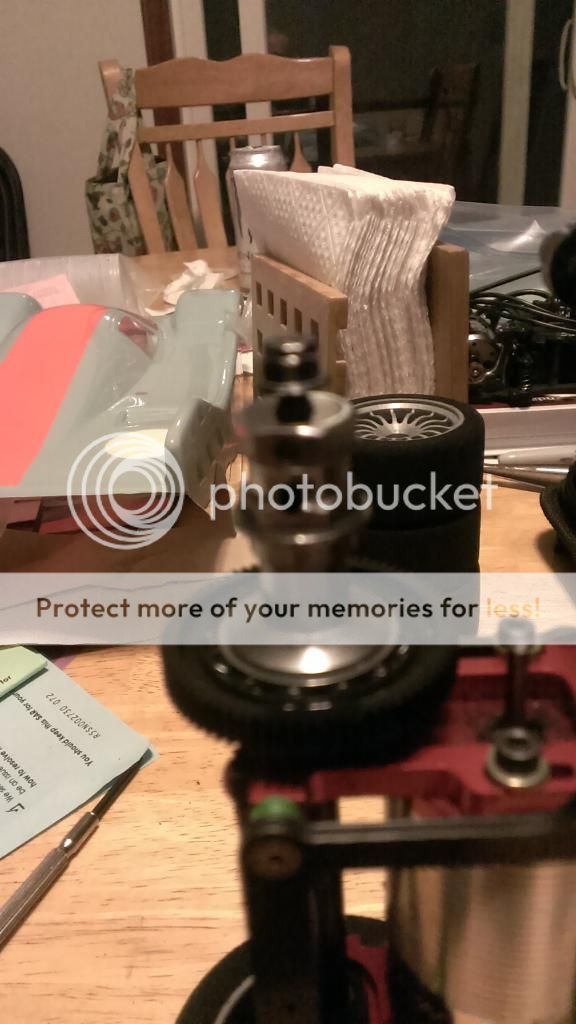

Serpent axle and hub assembly. The axle is 1/4 inch, same as the CRC axle. Offset iof the hubs is dead on. Diffadjustment is sweet., pull off the right rear wheel and stick a wrench in the adjustment nut and spin the left wheel. No diff cap removal required

Last edited by liljohn1064; 06-12-2014 at 11:08 PM.
liljohn1064 is offline   Reply With Quote
Old 06-12-2014, 10:03 PM   #3786
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default



1/8x10x4 bearings. Front rums go straight on. Good shot of the front end plate spaced up from the main chassis.

Last edited by liljohn1064; 06-12-2014 at 11:11 PM.
liljohn1064 is offline   Reply With Quote
Old 06-12-2014, 10:03 PM   #3787
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default


Fuzzy shot of the adjustment hole. Fairly clear shot of a Gulf 956 wannabe in the background.

Last edited by liljohn1064; 06-12-2014 at 11:14 PM.
liljohn1064 is offline   Reply With Quote
Old 06-12-2014, 10:09 PM   #3788
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default

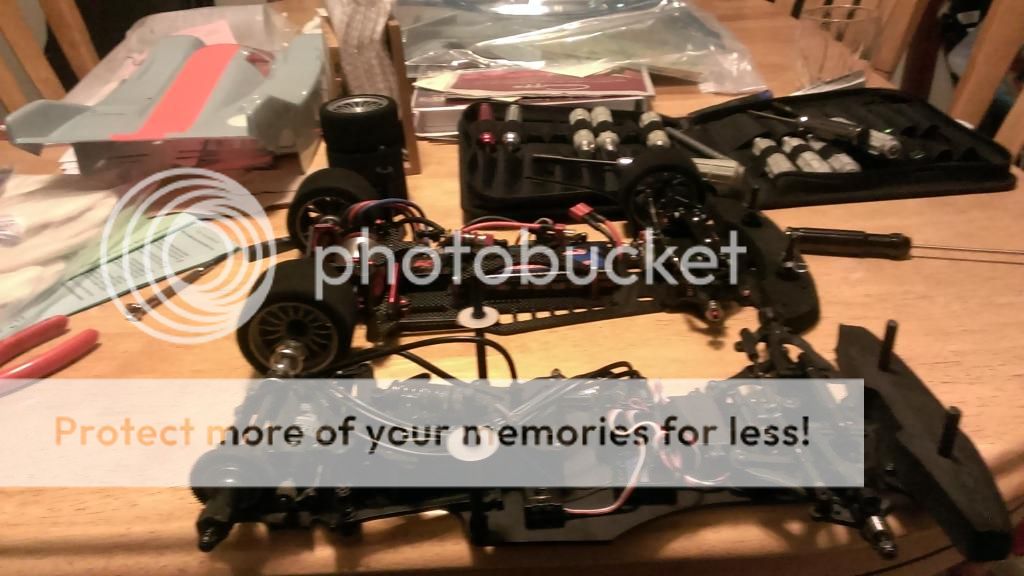

In the pictures you can see the 4mm of spacers under the side plates and the front suspension plate. There is also a shot of the 1/8x10x4 bearings. Last a shot of the Serpent hex hub and axle assembly. I included a shot of the wheelbase differences to show the CRC is quite a bit shorter. Ride height is currently at 4.5mm all around.
liljohn1064 is offline   Reply With Quote
Old 06-13-2014, 12:05 AM   #3789
Tech Champion

Still Bill's Avatar

Join Date: Jan 2004
Location: Reno, NV
Posts: 7,016
Trader Rating: 11 (100%+)
Default

Try moving the steering servo further forward to improve the angle of the steering links.

You will see what I mean if you go to both extremes of the steering. The links need to be straight at a minimum; but, really want to be slightly swept back at the steering knuckles.

Bill
__________________
Constantly evolving CRC WGT and WGT-R/T...Carpet & Asphalt...All thanks to Team CRC.
Still Bill is offline   Reply With Quote
Old 06-13-2014, 05:07 AM   #3790
Tech Elite

howardcano's Avatar

Join Date: Jan 2012
Location: Olathe, KS
Posts: 3,289
Trader Rating: 35 (100%+)
Default

John, that is wonderful! The only (slight) disadvantage I see is the higher motor for CG.

Is there room on the main chassis to drill new holes to move the front end plate forward to increase the wheel base? (That would need a new bumper, too.) An ingenious guy like yourself could also make a new front end plate to do the same thing.

You have inspired me to post pics of my rear axle conversion on the LMP thread. I've been swamped with other things, but should have some time available soon to do so.

Do you know what brands of fishing reels use those bearings? That might be a garage sale find.
__________________
Howard Cano
When race results are re-calculated using the IOF (Index Of Fun), I always win.
1993 ROAR 1/8 Pan National Champion
howardcano is offline   Reply With Quote
Old 06-13-2014, 11:18 AM   #3791
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default

Quote:
Originally Posted by Still Bill View Post
Try moving the steering servo further forward to improve the angle of the steering links.

You will see what I mean if you go to both extremes of the steering. The links need to be straight at a minimum; but, really want to be slightly swept back at the steering knuckles.

Bill
I should have done that servo adjustment when I had it apart! I just have to use the front hole instead of the back hole. Oh well.
__________________
John Higgins
liljohn1064 is offline   Reply With Quote
Old 06-13-2014, 11:38 AM   #3792
Tech Champion

liljohn1064's Avatar

Join Date: Sep 2008
Location: Deerfield, WI
Posts: 5,281
Trader Rating: 16 (100%+)
Send a message via AIM to liljohn1064 Send a message via MSN to liljohn1064 Send a message via Yahoo to liljohn1064
Default

Quote:
Originally Posted by howardcano View Post
John, that is wonderful! The only (slight) disadvantage I see is the higher motor for CG.

Is there room on the main chassis to drill new holes to move the front end plate forward to increase the wheel base? (That would need a new bumper, too.) An ingenious guy like yourself could also make a new front end plate to do the same thing.

You have inspired me to post pics of my rear axle conversion on the LMP thread. I've been swamped with other things, but should have some time available soon to do so.

Do you know what brands of fishing reels use those bearings? That might be a garage sale find.

The reel these bearings fit an old Abu Garcia Series 5000D. The bearing replaces a bushing originally installed which wears out. There isn't a cheaper alternative I've found so far.

The CG worries me a bit too with the motor up so, but won't know until I try.
__________________
John Higgins
liljohn1064 is offline   Reply With Quote
Old 06-13-2014, 11:55 AM   #3793
Tech Master

NutDriver's Avatar

Join Date: Nov 2012
Location: North Carolina
Posts: 1,944
Trader Rating: 14 (100%+)
Default

I generally only lurk on this thread, so I'm a bit behind. Which Serpent axle is the one you used? I would like to run my CRCs in the LM class, but it requires "single lug wheels" like the Speed Passion LM wheels in your pics. This looks awesome! I'll keep my eyes open for 200mm "P" bodies that will fit this wheelbase.

Scott
__________________
"Racing makes heroin addiction look like a vague longing for something salty" - Peter Egan

USVTA member #111
NutDriver is online now   Reply With Quote
Old 06-13-2014, 01:40 PM   #3794
Tech Elite

howardcano's Avatar

Join Date: Jan 2012
Location: Olathe, KS
Posts: 3,289
Trader Rating: 35 (100%+)
Default

Scott, for some other ideas, take a look at these:

http://www.rctech.net/forum/13333679-post304.html

http://www.rctech.net/forum/13333682-post305.html
__________________
Howard Cano
When race results are re-calculated using the IOF (Index Of Fun), I always win.
1993 ROAR 1/8 Pan National Champion
howardcano is offline   Reply With Quote
Old 06-13-2014, 03:37 PM   #3795
Tech Champion

Join Date: Nov 2001
Location: Hawaii, USA
Posts: 7,157
Default

Some people used CRC front knuckle parts on the SP-1 due to the weak plastic on the SP-1...might be able to just use the SP-1 knuckles and axle on the front end to fit the metric bearings.
__________________
Apex RC
www.apexrc.com - Hawaii's #1 RC Proshop

Share & Like Our Page:https://www.facebook.com/ApexRCProshop
Win free stuff!
