Old 03-19-2009, 12:06 PM   #2656
Tech Regular

FACTORYBUTNOT's Avatar

Join Date: Mar 2008
Posts: 307
Default

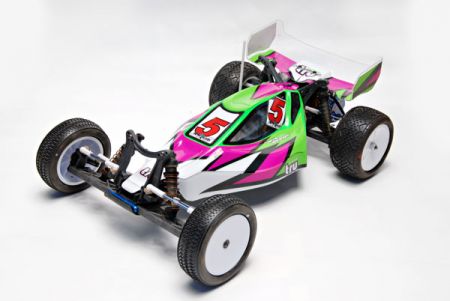

Here is the JCONCEPTS B4 HiFlow body with the new TRU-RC.com wrap!

This car was run by TRU R/C Team Driver Travis Erkeneff at the Cactus Classic!
Attached Thumbnails
JConcepts Thread-b4.jpg
FACTORYBUTNOT is offline   Reply With Quote
Old 03-19-2009, 12:40 PM   #2657
Tech Regular

FACTORYBUTNOT's Avatar

Join Date: Mar 2008
Posts: 307
Default

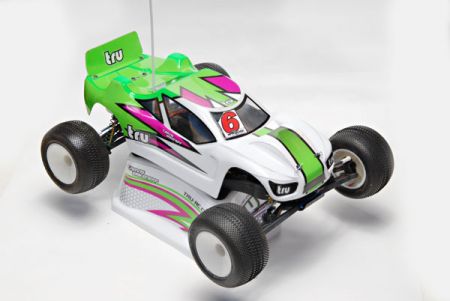

Here is the JCONCEPTS HiFlow T4 body with the new TRU-RC.com wrap!

This T4FT was an A Main Finisher at the Cactus Classic! It was driven by Travis Erkeneff.
Attached Thumbnails
JConcepts Thread-t4.jpg
FACTORYBUTNOT is offline   Reply With Quote
Old 03-20-2009, 04:39 PM   #2658
Tech Regular

Join Date: Dec 2008
Posts: 459
Trader Rating: 9 (100%+)
Default

Hi Andy,

I have removed the fan from my LRP Sphere TC ESC, but the heatsink is still slightly too tall and pushes one side of the body slightly higher.

You mentioned the heat sink of your LRP esc touches the side of your 0001SL High Flow body. My question is does the heat sink pushes the body higher? I don't mind if the heat sink touches the body, as long as it doesn't change the natural shape of the body.

Thanks in advance.
billythekid is offline   Reply With Quote
Old 03-20-2009, 10:08 PM   #2659
Tech Elite

Maybell's Avatar

Join Date: Jun 2007
Location: Seattle
Posts: 2,109
Trader Rating: 2 (100%+)
Default

Quote:
Originally Posted by billythekid View Post
Hi Andy,

I have removed the fan from my LRP Sphere TC ESC, but the heatsink is still slightly too tall and pushes one side of the body slightly higher.

You mentioned the heat sink of your LRP esc touches the side of your 0001SL High Flow body. My question is does the heat sink pushes the body higher? I don't mind if the heat sink touches the body, as long as it doesn't change the natural shape of the body.

Thanks in advance.
How do you have your ESC mounted? I am running the same ESC as you, with the fan removed. I mounted my ESC with the sensor output facing the front of the car (the side "sphere" sticker is facing the left side of the chassis) and I slammed it against the battery compartment. My 0001SL body fits square without having to grind material from the heatsink.

I hope this helps.

Sean
__________________
Sean Maybell - Team Associated Region 11 Administrator

AE - Reedy - LRP - Hobby Velocity - XP Digital - JConcepts
Maybell is offline   Reply With Quote
Old 03-21-2009, 04:48 PM   #2660
Tech Regular

Join Date: Dec 2008
Posts: 459
Trader Rating: 9 (100%+)
Default

Quote:
Originally Posted by Maybell View Post
How do you have your ESC mounted? I am running the same ESC as you, with the fan removed. I mounted my ESC with the sensor output facing the front of the car (the side "sphere" sticker is facing the left side of the chassis) and I slammed it against the battery compartment. My 0001SL body fits square without having to grind material from the heatsink.

I hope this helps.

Sean


Hi Sean,

Thanks for the advice.

I have the ESC mounted in the same direction as you do. I have also moved it to as close toward the right side as possible. The ESC cannot lean against the wall of the battery compartment, because there are some thin wires (wires for switch, receiver plug, capacity etc..) coming out from the right side of the ESC.

I am currently using the stock B4 body, and this configuration is pushing the left side of the body upward a little, even without the fan. Does you stock body fits square?
billythekid is offline   Reply With Quote
Old 03-21-2009, 05:06 PM   #2661
Tech Elite

Maybell's Avatar

Join Date: Jun 2007
Location: Seattle
Posts: 2,109
Trader Rating: 2 (100%+)
Default

Quote:
Originally Posted by billythekid View Post
Hi Sean,

Thanks for the advice.

I have the ESC mounted in the same direction as you do. I have also moved it to as close toward the right side as possible. The ESC cannot lean against the wall of the battery compartment, because there are some thin wires (wires for switch, receiver plug, capacity etc..) coming out from the right side of the ESC.

I am currently using the stock B4 body, and this configuration is pushing the left side of the body upward a little, even without the fan. Does you stock body fits square?
I just checked and my stock body doesnt fit square, but my JConcepts body does fit square.

If you are running the carbon chassis, try applying some chassis protective sheet to the outside of the battery compartment so you can slam those wires against it. I think the wires will be ok.
__________________
Sean Maybell - Team Associated Region 11 Administrator

AE - Reedy - LRP - Hobby Velocity - XP Digital - JConcepts
Maybell is offline   Reply With Quote
Old 03-21-2009, 08:17 PM   #2662
Tech Champion

dgullickson's Avatar

Join Date: Oct 2002
Location: I'm a Dork Fish
Posts: 7,662
Trader Rating: 45 (96%+)
Send a message via AIM to dgullickson Send a message via Yahoo to dgullickson
Default

Quote:
Originally Posted by MOmo View Post
Typically at my track Losi pinks and the Panther Switch seem to be the tires of choice.

Hard to see, but pic:


Racing Action:
http://www.youtube.com/watch?v=dabKRzETusc
http://www.youtube.com/watch?v=f_30QRUo8F8

MOmo
That track looks familiar, oh ya I race there (sometimes)

Run the Gold Bar Codes, I ran them there last Friday when it was a bit dryer and they worked great, this was on my truck..
dgullickson is offline   Reply With Quote
Old 03-22-2009, 02:16 AM   #2663
Tech Regular

Join Date: Dec 2008
Posts: 459
Trader Rating: 9 (100%+)
Default

Quote:
Originally Posted by Maybell View Post
I just checked and my stock body doesnt fit square, but my JConcepts body does fit square.

If you are running the carbon chassis, try applying some chassis protective sheet to the outside of the battery compartment so you can slam those wires against it. I think the wires will be ok.
Thanks Sean, I will do that and get the 0001SL body.
billythekid is offline   Reply With Quote
Old 03-24-2009, 09:05 PM   #2664
Tech Elite

Join Date: Oct 2001
Location: Kissimmee,Fl.
Posts: 4,887
Trader Rating: 15 (94%+)
Send a message via AIM to W.E.D.Jim
Default

Some freshly completed JConcepts Bodeez...








...Jim
W.E.D.
__________________
www.wedjim.com ...Closed down due to heavy work load I couldn't keep up with and maintain my primary job. But I'm still painting, just not with 40+ bodies waiting. :)
www.prolineracing.com
www.HarleyDavidson.com
"Nothing but the best!"
W.E.D.Jim is offline   Reply With Quote
Old 03-24-2009, 09:27 PM   #2665
Tech Regular

pq49z's Avatar

Join Date: Aug 2007
Posts: 376
Default

Jim those look awsome as usual. Andy +1 on a high flow body for the RC8e.
__________________
Mike A
Team Sweeno, 475 Designs
X-Factory x6, x60, scx60
pq49z is offline   Reply With Quote
Old 03-25-2009, 06:21 AM   #2666
Tech Elite

AndyMoore's Avatar

Join Date: Aug 2006
Location: IFMAR Non-World Champion
Posts: 3,352
Trader Rating: 53 (100%+)
Send a message via AIM to AndyMoore
Default

Jim, the bodies look great as usual! I need to figure that scheme out and get some bodies over to you, haha.

Quote:
Originally Posted by pq49z View Post
Jim those look awsome as usual. Andy +1 on a high flow body for the RC8e.
Noted.
__________________
|JConcepts|Winning Edge Designs|
AndyMoore is offline   Reply With Quote
Old 03-25-2009, 09:36 AM   #2667
Tech Master

Join Date: Jan 2009
Location: St. Louis, MO
Posts: 1,521
Trader Rating: 16 (100%+)
Send a message via Yahoo to Zach Phillips
Default

When will the "orange" compond be avaliable to the public?
__________________
KYOSHO | JCONCEPTS | ORION | SMACTRAC |
Zach Phillips is offline   Reply With Quote
Old 03-25-2009, 10:56 AM   #2668
Tech Elite

AndyMoore's Avatar

Join Date: Aug 2006
Location: IFMAR Non-World Champion
Posts: 3,352
Trader Rating: 53 (100%+)
Send a message via AIM to AndyMoore
Default

Quote:
Originally Posted by Zach Phillips View Post
When will the "orange" compond be avaliable to the public?
It might be a little while, that was our first race with it, haha. Perhaps 2-3 months...in the summer season (wild guess).
__________________
|JConcepts|Winning Edge Designs|
AndyMoore is offline   Reply With Quote
Old 03-25-2009, 03:02 PM   #2669
Tech Addict

Join Date: Mar 2009
Location: Alexandria, LA
Posts: 504
Trader Rating: 37 (100%+)
Default

Just wanted to say I think you guys are doing an awesome job, I just mounted 20+ pair of JConcepts tires on Rulux wheels and I've never had an easier time gluing tires. All of the beads fit in the wheels perfectly. In the past I've used some of the other brands and have always had problems getting them mounted and glued just right, but now gluing tires is not one of my most hated tasks I don't think I'll ever use another tire again! Thanks guys!

Jon
jm_obrien is offline   Reply With Quote
Old 03-25-2009, 03:20 PM   #2670
Tech Master

porkey's Avatar

Join Date: Aug 2008
Location: Niles,Michigan
Posts: 1,007
Trader Rating: 1 (100%+)
Default

Quote:
Originally Posted by jm_obrien View Post
Just wanted to say I think you guys are doing an awesome job, I just mounted 20+ pair of JConcepts tires on Rulux wheels and I've never had an easier time gluing tires. All of the beads fit in the wheels perfectly. In the past I've used some of the other brands and have always had problems getting them mounted and glued just right, but now gluing tires is not one of my most hated tasks I don't think I'll ever use another tire again! Thanks guys!

Jon
+1 The losi tires are the worst! I would have to trim the bead, but with the rulux I don't. The fit perfect!
__________________
AE T4: 8.5 AE B4: 10.5 AE B44: 7.5
www.michianabuildingsupplies.com(Sponsor)
www.embassyrcraceway.com
www.michianarc.com
www.steelmx.com(Sponsor)
porkey is offline   Reply With Quote
